Locking GDS® Tough-Dock™ + Single USB-A for Samsung Tab A8 10.5" SM-X200 | |
---|---|
Part #:
RAM-GDS-DOCKL-SAM83CDU
UPC:
793442936258
Patented & Pats. Pend.
Features
|
![]() |
Product Information | |
---|---|

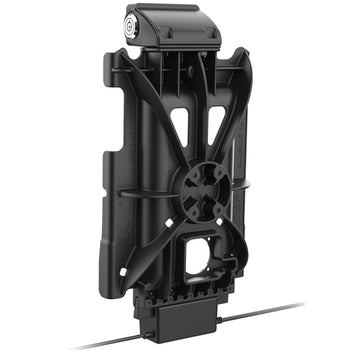

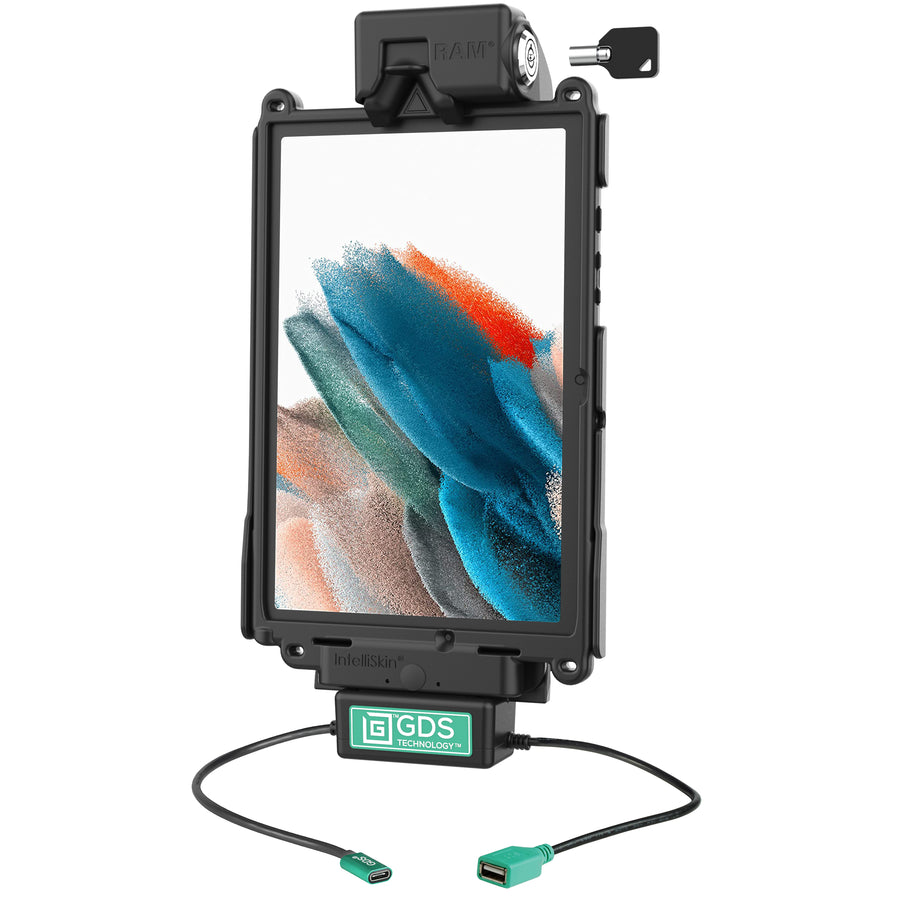

Overview | This key-locking GDS® Tough-Dock™ vehicle dock is designed to support the Samsung Galaxy Tab A8 10.5" SM-X200 in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a USB Type-A connector to support a peripheral add-on such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.® |
Specifications | |
---|---|
hardware included | (4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (2) Keys |
hole pattern | 4-Hole AMPS: 1.181" x 1.496" |
materials | High strength composite |
packaging type | Poly Bag |
output voltage | 5V - 12V @ 2A |
power output | 15W |
input connector | USB Type-C USB Type A for 1 Peripheral |
output cable length | .21 Meters |
peripheral output | 500mAh |
Warranty | 3 year warranty |
Weight | 1.6 lb |
Compatible Devices
Samsung
Galaxy Tab A8 10.5" (SM-X200) with IntelliSkin® Next Gen
Compatible Devices
Samsung
Galaxy Tab A8 10.5" (SM-X200) with IntelliSkin® Next Gen

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-GDS-DOCKL-SAM83CDU!
We'll email you once the item is available.
Overview
This key-locking GDS® Tough-Dock™ vehicle dock is designed to support the Samsung Galaxy Tab A8 10.5" SM-X200 in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a USB Type-A connector to support a peripheral add-on such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
Features

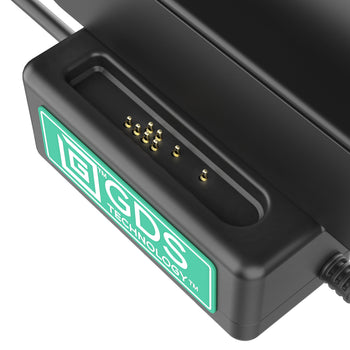

- Spring-loaded key-locking vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide charging and connection to one additional USB peripheral
- Designed specifically for the Samsung Galaxy Tab 10.5" SM-X200 wrapped in an IntelliSkin® Next Gen protective sleeve

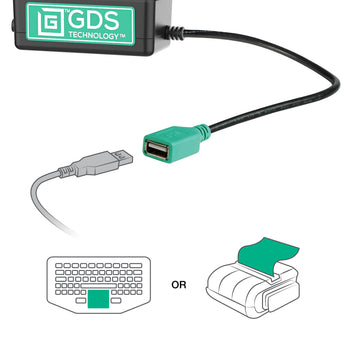

- Power delivered via USB-C connector; connect a single input device via USB-A connector
- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Backed by a 3-year warranty
hardware included:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Keys
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
output voltage:
5V - 12V @ 2A
power output:
15W
input connector:
USB Type-C
USB Type A for 1 Peripheral
output cable length:
.21 Meters
peripheral output:
500mAh
Warranty:
3 year warranty
Weight:
1.6 lb
