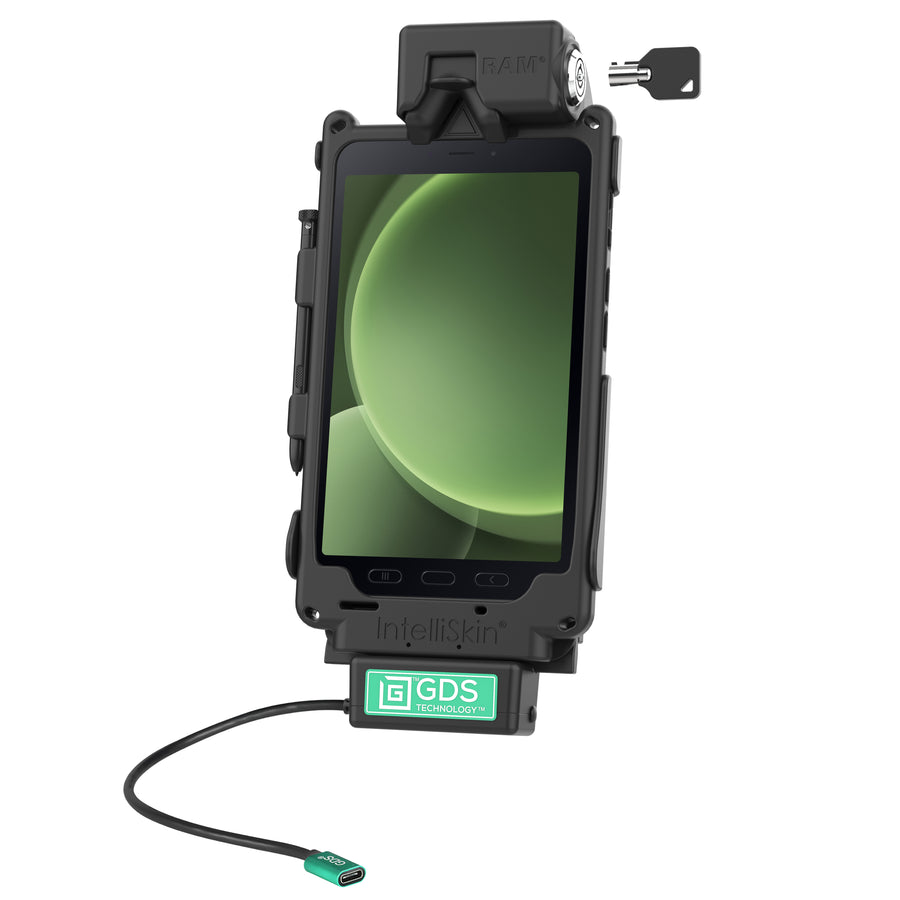

Locking GDS® Tough-Dock™ for Tab Active5 & 3 | |
---|---|
Part #:
RAM-GDS-DOCKL-SAM62CPU
UPC:
793442014642
Patented & Pats. Pend.
Features
|
![]() |
Product Information | |
---|---|
Overview | The GDS® Tough-Dock™ is the newest vehicle dock in the GDS® Tech™ line of vehicle docks with a keyed locking system designed to support the Samsung Galaxy Tab Active5, Tab Active3 and 2 in an IntelliSkin® Next Gen protective sleeve for your fleet. Using a USB Type-C power connector, the GDS® Tough-Dock™ supports high speed charging capabilities for the Samsung Galaxy Tab Active5, 3 and 2. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.® |
Specifications | |
---|---|
hardware included | (4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (2) Keys |
hole pattern | 4-Hole AMPS: 1.181" x 1.496" |
materials | High strength composite |
packaging type | Poly Bag |
output voltage | 5V - 12V @ 3A |
power output | 15W |
input connector | USB Type-C |
Warranty | 3 year warranty |
Weight | 1.5 lb |
Additional Information | This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here. |
Compatible Devices
Samsung
Galaxy Tab Active2 with IntelliSkin® Next Gen
Galaxy Tab Active3 with IntelliSkin® Next Gen
Galaxy Tab Active5 with IntelliSkin® Next Gen
Kit Components
Compatible Devices
Samsung
Galaxy Tab Active2 with IntelliSkin® Next Gen
Galaxy Tab Active3 with IntelliSkin® Next Gen
Galaxy Tab Active5 with IntelliSkin® Next Gen
Kit Components

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-GDS-DOCKL-SAM62CPU!
We'll email you once the item is available.
Overview
The GDS® Tough-Dock™ is the newest vehicle dock in the GDS® Tech™ line of vehicle docks with a keyed locking system designed to support the Samsung Galaxy Tab Active5, Tab Active3 and 2 in an IntelliSkin® Next Gen protective sleeve for your fleet. Using a USB Type-C power connector, the GDS® Tough-Dock™ supports high speed charging capabilities for the Samsung Galaxy Tab Active5, 3 and 2. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
Features

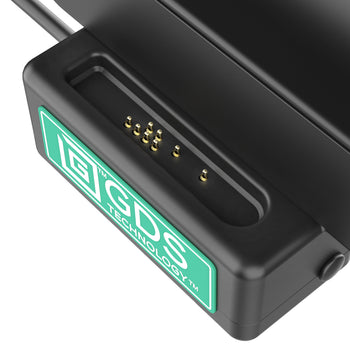

- Spring-loaded key-locking vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high speed charging
- Designed specifically for the Samsung Galaxy Tab Active5, Tab Active3 and 2 wrapped in an IntelliSkin® Next Gen protective sleeve
- Incorporated into the bottom docking cup is a USB Type-C Female connector for providing high speed charging to the dock
- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Backed by a 3-year warranty
hardware included:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Keys
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
output voltage:
5V - 12V @ 3A
power output:
15W
input connector:
USB Type-C
Warranty:
3 year warranty
Weight:
1.5 lb
Additional Information:
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
Questions & Answers
Have a Question?
-
Is this cradle water and dust proof?
This part is not water or dust proof.
