Patented & Pats. Pend.
Locking GDS® Tough-Dock™ + Dual USB-A for Samsung Tab Active5 & 3
Always Protected. Always Connected.®
Part#: RAM-GDS-DOCKL-SAM62CD2U
UPC: 793442956300
$296.49

Overview

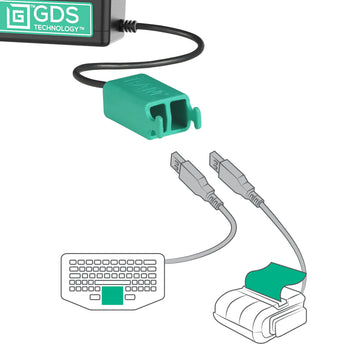

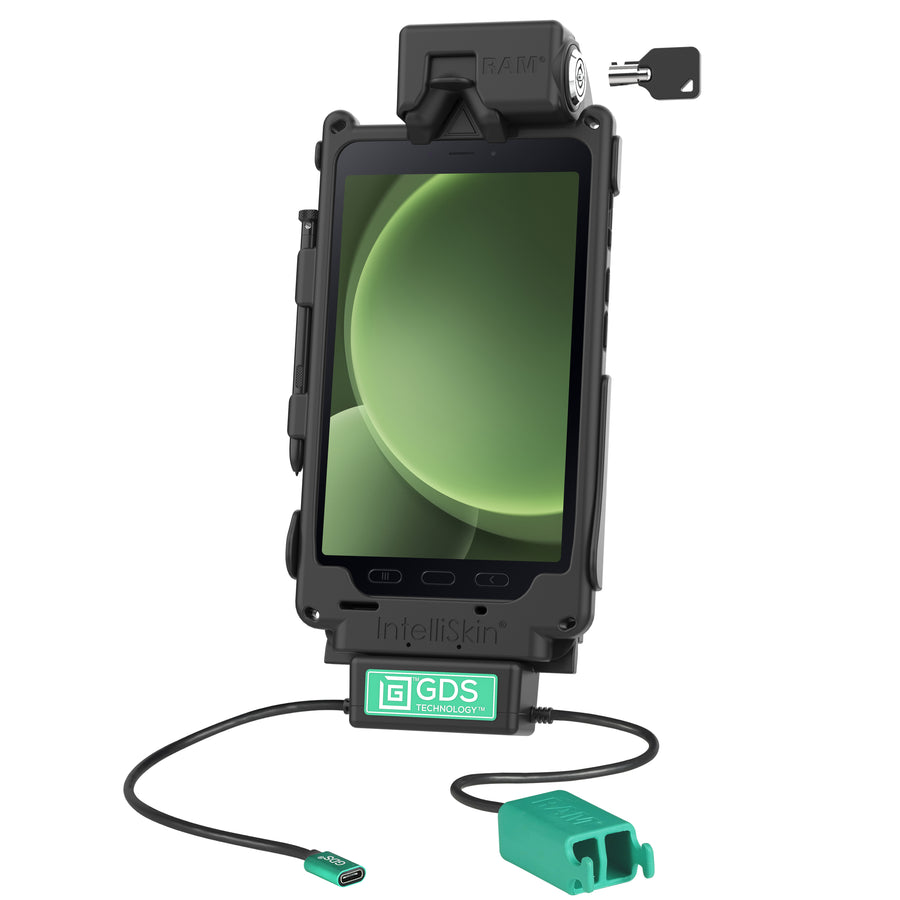

This key-locking GDS® Tough-Dock™ vehicle dock is designed to support the Samsung Galaxy Tab Active5, Tab Active3 and 2 in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a dual USB Type-A connector to support up to two peripheral add-ons such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

Features

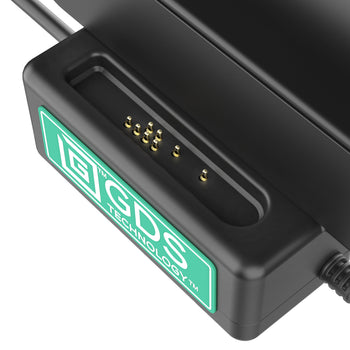

  • Spring-loaded key-locking vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide charging and connection for up to two additional USB peripherals
  • Designed specifically for the Samsung Galaxy Tab Active5, Tab Active3 and 2 wrapped in an IntelliSkin® Next Gen protective sleeve
  • Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A connector
  • RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
  • Backed by a 3-year warranty

hardware included:

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Keys

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

materials:

High strength composite

packaging type:

Poly Bag

output voltage:

Type-C Tablets: 5V - 12V @ 3A max
Each Peripheral: 5V @ 900mA max

power output:

15W

input connector:

USB Type-C
Dual USB Type A for 2 Peripherals

output cable length:

.21 Meters

peripheral output:

900mAh (per port)

Warranty:

3 year warranty

Weight:

1.25 lb

Additional Information:

This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.

Print

Instructions

Dual USB Data Cable Management Instructions
