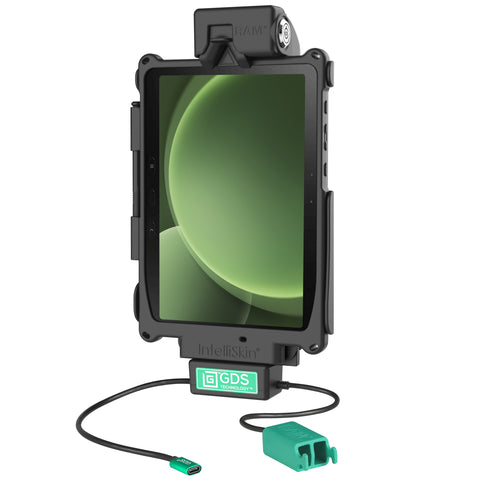

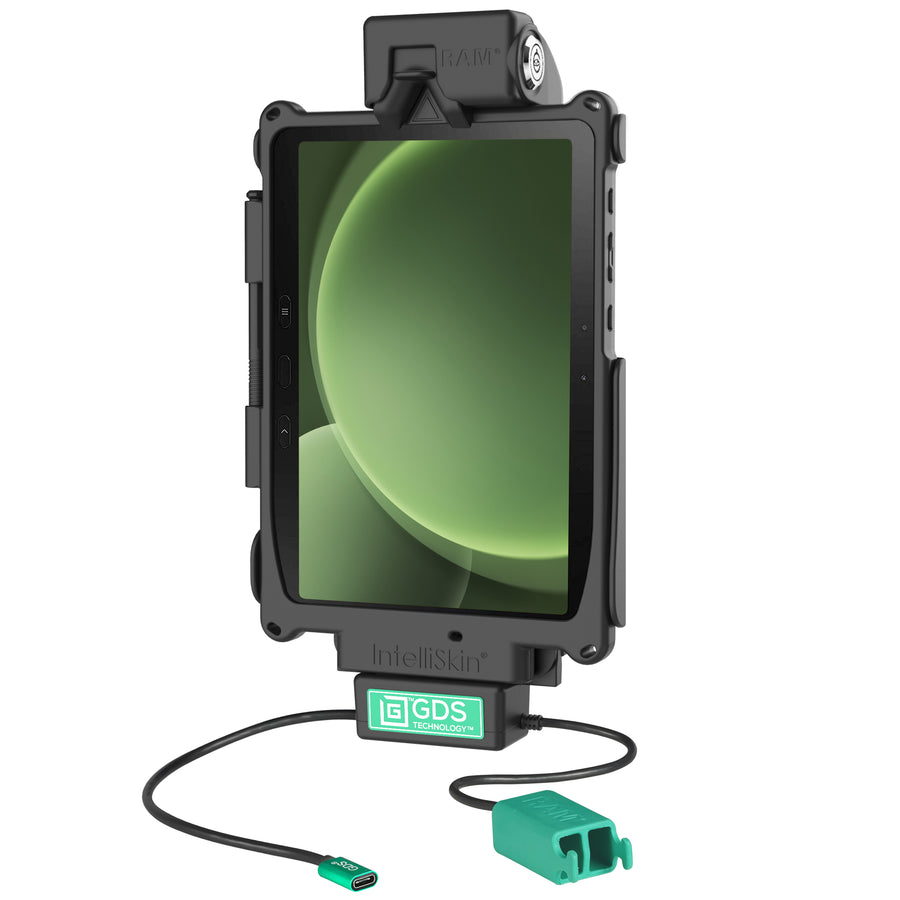

Locking GDS® Tough-Dock™ + Dual USB-A for Tab Active4 Pro | |
---|---|
Part #:
RAM-GDS-DOCKL-SAM54NCD2U
UPC:
793442020421
Patented & Pats. Pend.
Features
|
![]() |
Product Information | |
---|---|

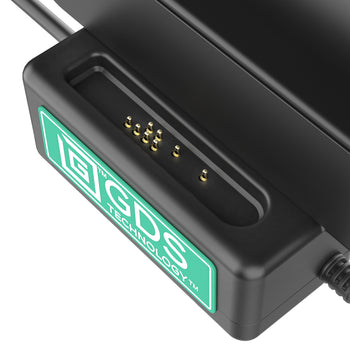

Overview | This Locking GDS® Tough-Dock™ vehicle dock (RAM-GDS-DOCKL-SAM54NCD2U) is designed to support the Samsung Galaxy Tab Active4 Pro in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a dual USB Type-A connector to support up to two peripheral add-ons such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is designed with housing that accomodates the RAM® NFC Extender, is compatible with RAM® ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.® |
Specifications | |
---|---|
hardware included | (4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (1) USB Type-C to Type-A Cable (2) Keys |
hole pattern | 4-Hole AMPS: 1.181" x 1.496" |
materials | High strength composite |
packaging type | Poly Bag |
output voltage | 5V - 12V @ 3A max Each Peripheral: 5V @ 900mA max |
power output | 15W |
input connector | USB Type-C Dual USB Type A for 2 Peripherals |
output cable length | 215mm |
peripheral output | 900mAh (per port) |
Warranty | 3 year warranty |
Weight | 1.68 lb |
Compatible Devices
Samsung
Galaxy Tab Active Pro with IntelliSkin® Next Gen
Galaxy Tab Active4 Pro with IntelliSkin® Next Gen
Compatible Devices
Samsung
Galaxy Tab Active Pro with IntelliSkin® Next Gen
Galaxy Tab Active4 Pro with IntelliSkin® Next Gen

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-GDS-DOCKL-SAM54NCD2U!
We'll email you once the item is available.
Overview
This Locking GDS® Tough-Dock™ vehicle dock (RAM-GDS-DOCKL-SAM54NCD2U) is designed to support the Samsung Galaxy Tab Active4 Pro in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a dual USB Type-A connector to support up to two peripheral add-ons such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is designed with housing that accomodates the RAM® NFC Extender, is compatible with RAM® ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
Features

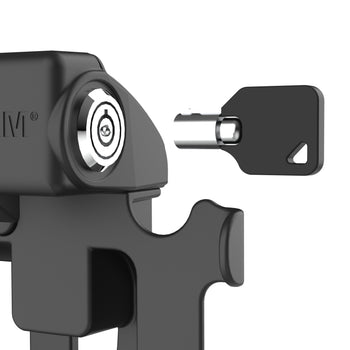

- Spring-loaded key locking vehicle dock designed specifically for the Samsung Galaxy Tab Active4 Pro wrapped in an IntelliSkin® Next Gen protective sleeve

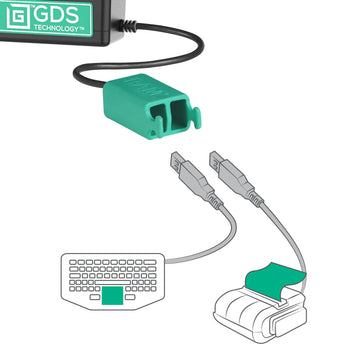

- Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A connector
- RAM® Mounts Compatible™ including RAM® NFC Extender and GDS® Hand-Stand™ Hand Strap and Kickstand
- Backed by a 3-year warranty
hardware included:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) USB Type-C to Type-A Cable
(2) Keys
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
output voltage:
5V - 12V @ 3A max
Each Peripheral: 5V @ 900mA max
power output:
15W
input connector:
USB Type-C
Dual USB Type A for 2 Peripherals
output cable length:
215mm
peripheral output:
900mAh (per port)
Warranty:
3 year warranty
Weight:
1.68 lb
