GDS® Uni-Conn™ Powered Low Profile Wall Dock with PoE - Gray

One Dock to Connect Them All™
Part#: RAM-GDS-DOCK-W7-POEU-GRY
UPC: 793442029738
$223.49

Overview

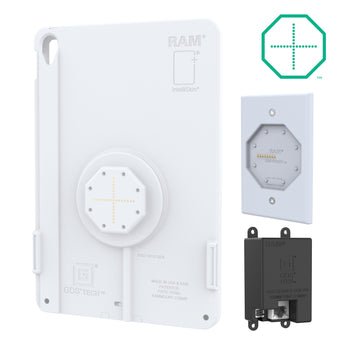

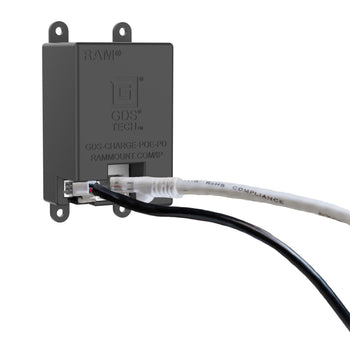

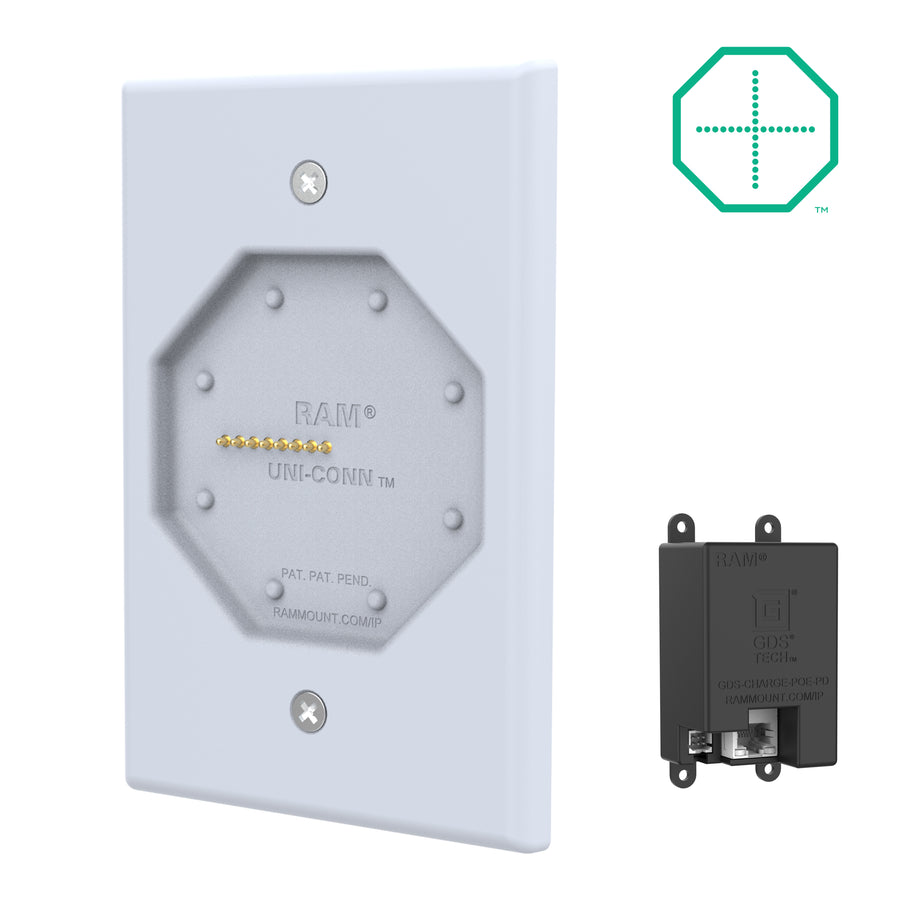

The GDS® Uni-Conn™ Powered Low Profile Wall Dock with PoE - Gray (RAM-GDS-DOCK-W7-POEU-GRY) is a wall docking solution for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via the JST connector and PoE Adapter. This dock installs directly over a standard rectangular electrical outlet box. Easily dock and undock your device with the assistance of the magnetic attachment mechanism. The light gray aesthetic is ideal for sophisticated, bright workplaces in industries such as retail, medical, and more. One Dock to Connect Them All™ Always Protected. Always Connected.®

Features

  • Magnetic dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
  • Designed for devices enclosed in the IntelliSkin® Thin-Case™ with Rear Pogo Pads
  • JST connector enables high-speed charging capabilities
  • Installs directly over standard outlet boxes
  • Backed by a 3-year warranty

hardware included:

(2) #6-32 x 7/8" Machine Screws

hole pattern:

2-Hole: 3.281" (Standard Electrical Box)

materials:

High strength composite

packaging type:

Box

power specifications:

Required Input: POE+ (802.3at) or greater

output voltage:

PD 3.0:
5V @ 3A
9V @ 2.22A
12V @ 1.67A

power output:

20W Max

transfer speed:

10/100Mbps

Warranty:

3 year warranty

Weight:

0.71 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
