GDS® Uni-Conn™ Powered Wall Dock with PoE & Release Button
Overview

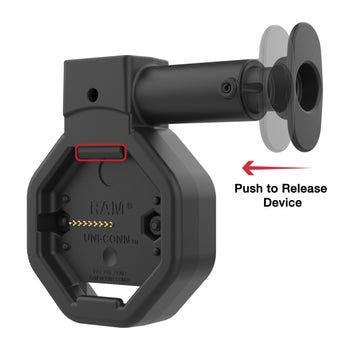

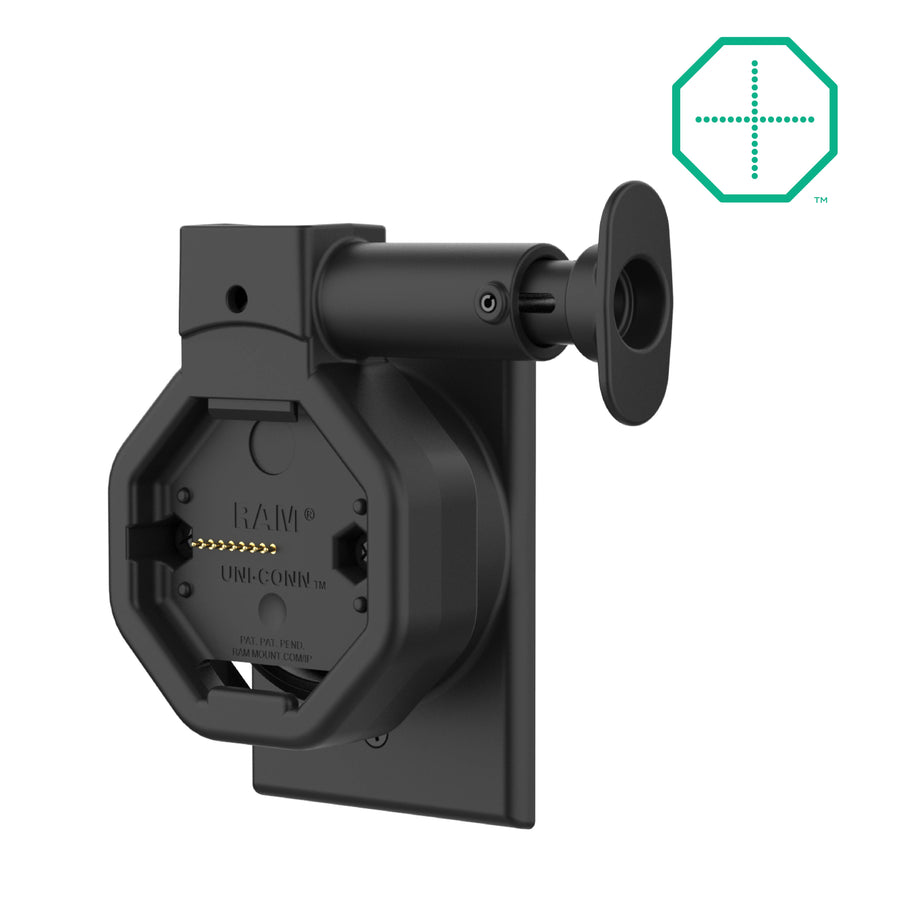

The GDS® Uni-Conn™ Powered Wall Dock with PoE & Release Button (RAM-GDS-DOCK-W5-U5-POEU) is a versatile snap-in wall docking solution for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via the JST connector and PoE Adapter. This dock installs directly over a standard rectangular electrical outlet box. The snap-in attachment method allows for quick, one-handed device removal. One Dock to Connect Them All™ Always Protected. Always Connected.®
Features
- Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging

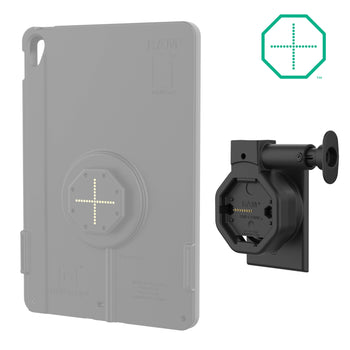

- Designed for devices enclosed in the IntelliSkin® Thin-Case™ with Rear Pogo Pads
- JST connector enables high-speed charging capabilities
- Installs directly over standard outlet boxes
- Backed by a 3-year warranty
hardware included:

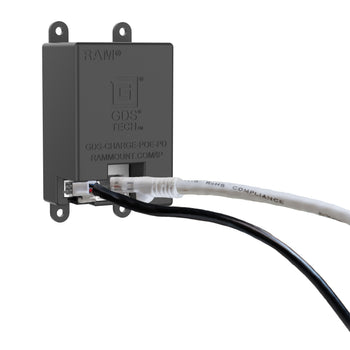

(1) PoE to Power Delivery Charging Module
(2) #6-32 x 7/8" Machine Screws
hole pattern:
2-Hole: 3.281" (Standard Electrical Box)
materials:
High strength composite
packaging type:
Box
power specifications:
Required Input: POE+ (802.3at) or greater
output voltage:
PD 3.0:
5V @ 3A
9V @ 2.22A
12V @ 1.67A
power output:
20W Max
input connector:
JST Connector
input cable length:
800mm
transfer speed:
10/100Mbps
Warranty:
3 year warranty
Weight:
0.77 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
