Patented & Pats. Pend.

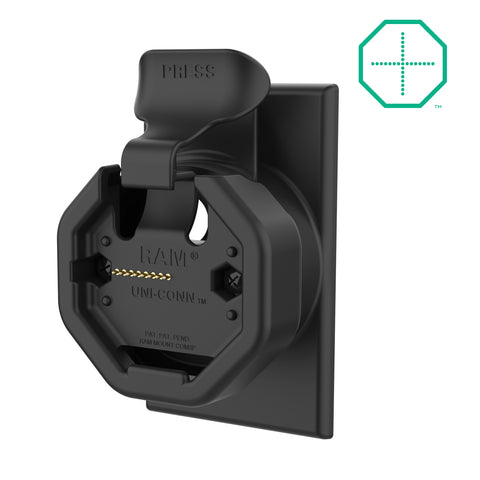

GDS® Uni-Conn™ Powered Snap-In Wall Dock with PoE

One Dock to Connect Them All™
Part#: RAM-GDS-DOCK-W5-U3-POEU
UPC: 793442029301
$320.49

Overview

The GDS® Uni-Conn™ Powered Snap-In Wall Dock with PoE (RAM-GDS-DOCK-W5-U3-POEU) is a versatile snap-in wall docking solution for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via the JST connector and PoE Adapter. This dock installs directly over a standard rectangular electrical outlet box. The snap-in attachment method makes this wall dock ideal for high-traffic environments. One Dock to Connect Them All™ Always Protected. Always Connected.®

Features

  • Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
  • Designed for devices enclosed in the IntelliSkin® Thin-Case™ with Rear Pogo Pads
  • JST connector enables high-speed charging capabilities
  • Installs directly over standard outlet boxes
  • Backed by a 3-year warranty

hardware included:

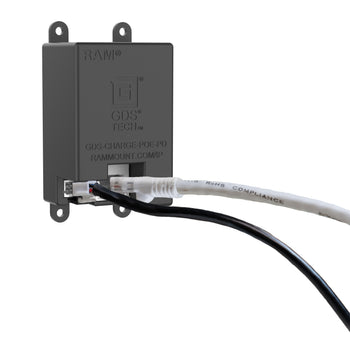

(1) PoE to Power Delivery Charging Module
(2) #6-32 x 7/8" Machine Screws

hole pattern:

2-Hole: 3.281" (Standard Electrical Box)

materials:

High strength composite

packaging type:

Box

power specifications:

Required Input: POE+ (802.3at) or greater

output voltage:

PD 3.0:
5V @ 3A
9V @ 2.22A
12V @ 1.67A

power output:

20W Max

input connector:

JST Connector

input cable length:

800mm

transfer speed:

10/100Mbps

Warranty:

3 year warranty

Weight:

0.77 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
