GDS® Uni-Conn™ Powered Wall Dock with PoE
Overview

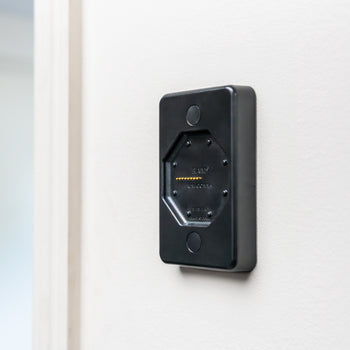

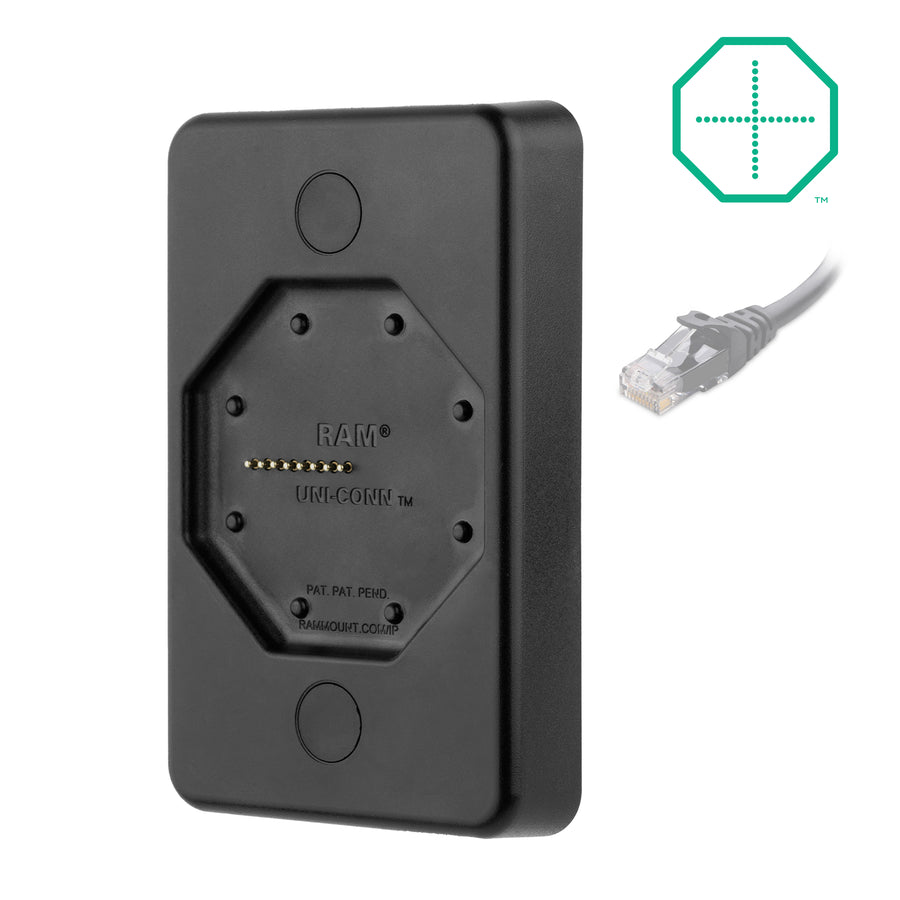

The GDS® Uni-Conn™ Powered Wall Dock with PoE (RAM-GDS-DOCK-W4-POEU) is a versatile wall docking solution for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads. Easily dock and undock your device with the assistance of the magnetic attachment mechanism. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via Power over Ethernet (PoE). This dock installation requires a standard rectangle electrical outlet box (not included). One Dock to Connect Them All™ Always Protected. Always Connected.®
Features

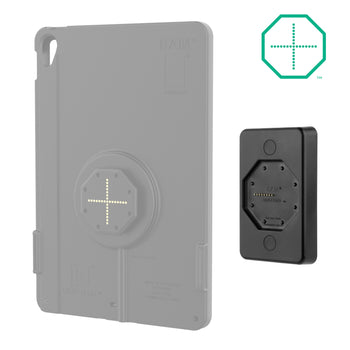

- Low-profile, powered wall dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads
- PoE (Power over Ethernet) provides charging capabilities and allows for secure software updates during downtime

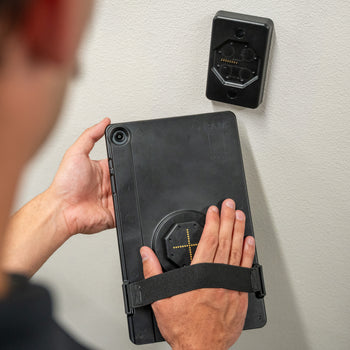

- Magnetic attachment mechanism allows for quick docking and undocking

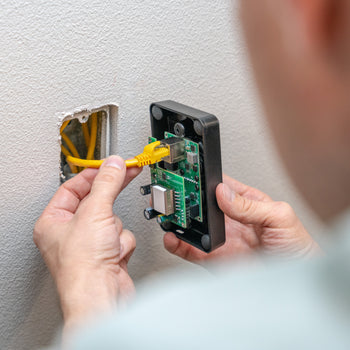

- Installation requires standard rectangle electrical outlet box
- Backed by a 3-year warranty
hardware included:
(2) #6-32 x 1 1/4" Machine Screws
(4) Rubber Caps
hole pattern:
2-Hole: 3.281" (Standard Electrical Box)
materials:
High strength composite
packaging type:
Box
power specifications:
Required Input: POE+ (802.3at) or greater
output voltage:
PD 3.0:
5V @ 3A
9V @ 2.22A
12V @ 1.67A
power output:
20W Max
transfer speed:
10/100Mbps
Warranty:
3 year warranty
Weight:
0.51 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
