Patented & Pats. Pend.

GDS® Uni-Conn™ Wall Dock with Magnetic Receiver & PoE - Gray

One Dock to Connect Them All™
Part#: RAM-GDS-DOCK-W3-POE-GRY
UPC: 793442026898
$315.49

Overview

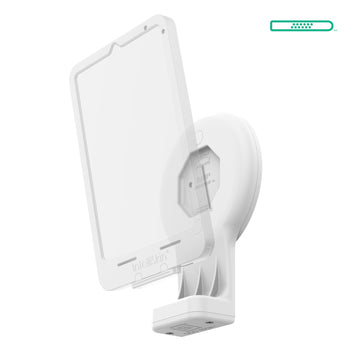

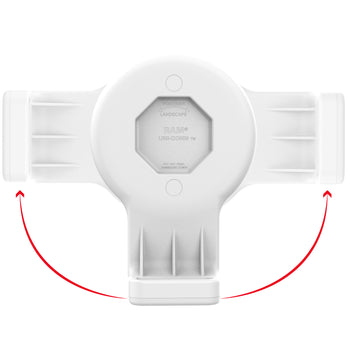

The GDS® Uni-Conn™ Wall Dock with Magnetic Receiver & PoE - Gray (RAM-GDS-DOCK-W3-POE-GRY) is an adjustable wall dock that swivels 180 degrees to enable landscape and portrait mounting. This dock is designed for devices enclosed in an IntelliSkin® Thin-Case™. Easily dock and undock your device with the assistance of the magnetic attachment mechanism. Power over Ethernet (PoE) is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via RJ45 (Ethernet) connector. This dock installation requires a standard rectangle electrical outlet box (not included). The light gray aesthetic is ideal for sophisticated, bright workplaces in industries such as retail, medical, and more. One Dock to Connect Them All™ Always Protected. Always Connected.®

Features

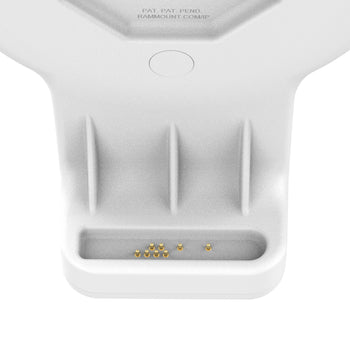

  • Magnetic wall dock featuring GDS® Technology™ uses integrated pogo pins to provide PoE (Power over Ethernet) charging capabilities; allows for secure software updates during downtime
  • Designed for devices enclosed in the IntelliSkin® Thin-Case™
  • Magnetic attachment mechanism allows for quick docking and undocking

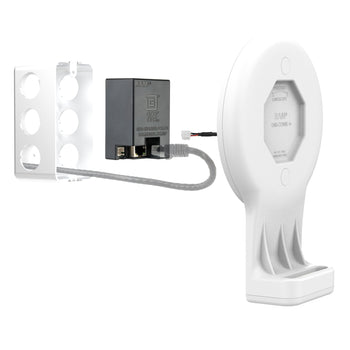

  • Installation requires standard rectangle electrical outlet box
  • Backed by a 3-year warranty

hardware included:

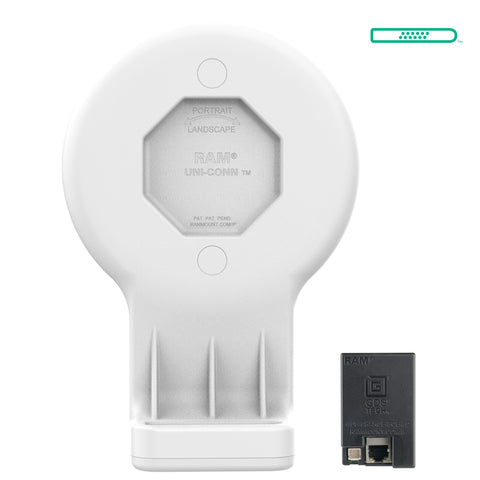

(1) PoE to Power Delivery Charging Module
(1) Steel Insert for Uni-Conn™ Button
(2) #6-32 x 1 1/4" Machine Screws
(2) Screw Caps

hole pattern:

2-Hole: 3.281" (Standard Electrical Box)

materials:

High strength composite

packaging type:

Box

power specifications:

Required Input: POE+ (802.3at) or greater

output voltage:

PD 3.0:
5V @ 3A
9V @ 2.22A
12V @ 1.67A

power output:

20W Max

transfer speed:

10/100Mbps

Warranty:

3 year warranty

Weight:

1.21 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

Installation Instructions for GDS® Uni-Conn™ Wall Dock

Documents

GDS® Tech™ Catalog
Retail Catalog
