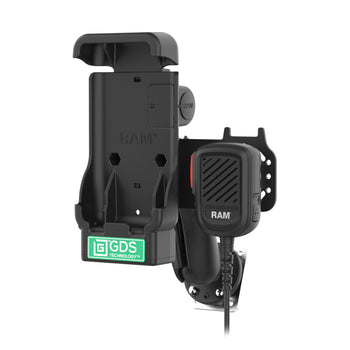

GDS® PTT Speaker Mic Kit for XCover7 Pro/6 Pro - ESChat & Zello

Part #: RAM-GDS-DOCK-V15-SAM84-RSM4 UPC: 793442031892 Patented & Pats. Pend.

Features

Spring-loaded powered dock featuring USB-C device connection designed for the Samsung XCover7/6 Pro
Uses a USB-C connector for reliable push-to-talk (PTT) or PTT over Cellular (PoC) when paired with a RAM® tablet or phone dock
GDS® Dock™ uses an integrated pogo pin connector to provide high-speed charging
Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty

GDS® PTT Speaker Mic Kit for XCover7 Pro/6 Pro - ESChat & Zello

Product Information

Overview

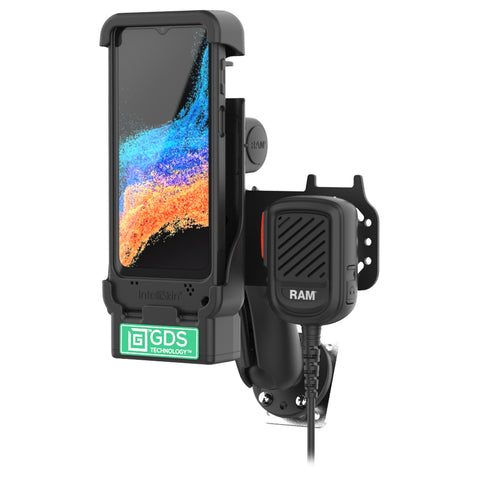

The GDS® PTT Speaker Mic Kit for XCover7 Pro/6 Pro - ESChat & Zello (RAM-GDS-DOCK-V15-SAM84-RSM4) delivers a complete solution for enabling reliable Push-to-Talk over Cellular (PoC) communication. Built specifically with the rugged Samsung XCover6 Pro in mind, this kit includes a form-fit GDS® Dock™, drill-down base with backing plate, microphone bracket, microphone clip, and a rugged USB-C Remote Speaker Microphone (RSM). The RSM provides dependable push-to-talk functionality through a USB-C connection, optimized for ESChat and Zello applications.

Specifications

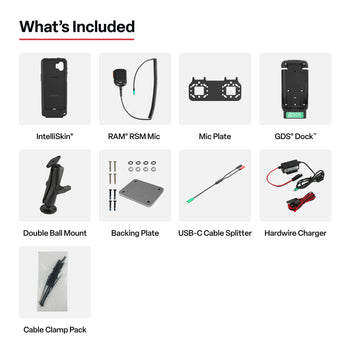

hardware included	(1) IntelliSkin® for XCover7 Pro & 6 Pro (1) GDS® Dock™ (1) Remote Speaker Mic with Mounting Plate (1) Mic Bracket (1) Double Ball Mount with Backing Plate (1) Hardwire Charger (1) USB-C Splitter Cable (3) Cable Clamp Kits
socket to socket length	4.66"
hole pattern	4-Hole AMPS: 1.181" x 1.496"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Steel Marine-grade aluminum High strength composite
packaging type	Box
power specifications	Remote Speaker Mic: Operating Voltage: 1.2VDC - 5VDC Current Consumption 100UA - 500UA Output Impedance @ 1KHZ Max 2.2K Ohms Signal to Noise Ratio: 1KHZ 60+ DB Max Input SPL 110DB Moisture Ingress Rating IP67
output voltage	5V - 12V @ 3A
power output	15W
input connector	USB Type-C
input cable length	380mm
Weight	4.87 lb

Patented & Pats. Pend.

GDS® PTT Speaker Mic Kit for XCover7 Pro/6 Pro - ESChat & Zello

Name: GDS® PTT Speaker Mic Kit for XCover7 Pro/6 Pro - ESChat & Zello
Brand: RAM Mounts
SKU: RAM-GDS-DOCK-V15-SAM84-RSM4
Price: 631.49 USD
Availability: OutOfStock

Always Protected. Always Connected.®

Part#: RAM-GDS-DOCK-V15-SAM84-RSM4

UPC: 793442031892

$631.49

Options

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

Spring-loaded powered dock featuring USB-C device connection designed for the Samsung XCover7/6 Pro
Uses a USB-C connector for reliable push-to-talk (PTT) or PTT over Cellular (PoC) when paired with a RAM® tablet or phone dock
GDS® Dock™ uses an integrated pogo pin connector to provide high-speed charging
Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty

hardware included:

(1) IntelliSkin® for XCover7 Pro & 6 Pro
(1) GDS® Dock™

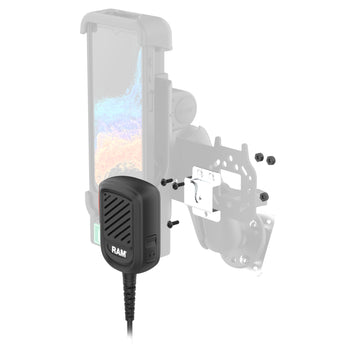

(1) Remote Speaker Mic with Mounting Plate
(1) Mic Bracket

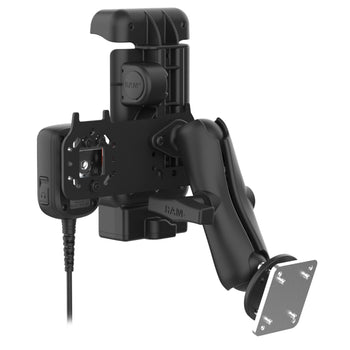

(1) Double Ball Mount with Backing Plate
(1) Hardwire Charger
(1) USB-C Splitter Cable
(3) Cable Clamp Kits

socket to socket length:

4.66"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Steel
Marine-grade aluminum
High strength composite

packaging type:

Box

power specifications:

Remote Speaker Mic:
Operating Voltage: 1.2VDC - 5VDC
Current Consumption 100UA - 500UA
Output Impedance @ 1KHZ Max 2.2K Ohms
Signal to Noise Ratio: 1KHZ 60+ DB
Max Input SPL 110DB
Moisture Ingress Rating IP67

output voltage:

5V - 12V @ 3A

power output:

15W

input connector:

USB Type-C

input cable length:

380mm

Weight:

4.87 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
