Patented & Pats. Pend.
GDS® Uni-Conn™ Spring Loaded Powered Dock - Heated Pins
One Dock to Connect Them All™
Part#: RAM-GDS-DOCK-V12-U1CPHU
UPC: 793442020261
$183.49

Overview

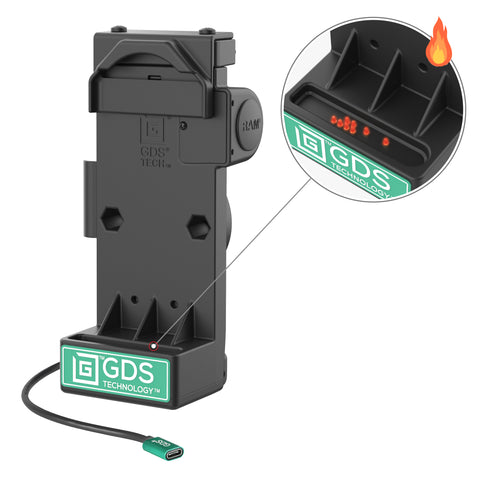

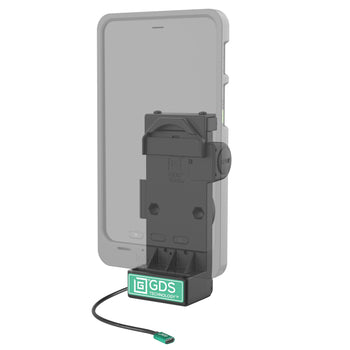

The GDS® Uni-Conn™ Spring Loaded Powered Dock - Heated Pins (RAM-GDS-DOCK-V12-U1CPHU) is a revolutionary universal docking platform. This sliding dock solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. It features an easy docking and undocking process, simply place the GDS® Uni-Conn™ adapter on the back of your device into the octagon-shaped connection point on the top cup, pushing the the device upwards until you can place the bottom of the device on the D-shaped bottom cup connection point. Combat harsh, freezing environments with heated pogo pins integrated into the dock to ensure a secure connection and prevent the pins from locking up due to ice. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™.

Features

  • Spring-loaded, locking dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging

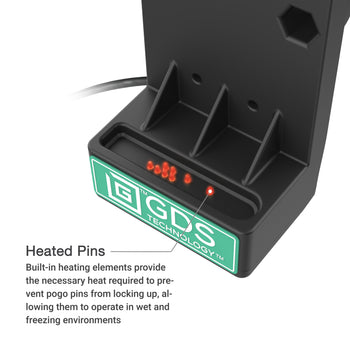

  • Heated pogo pins combat ice and ensure a secure connection in harsh, cold environments

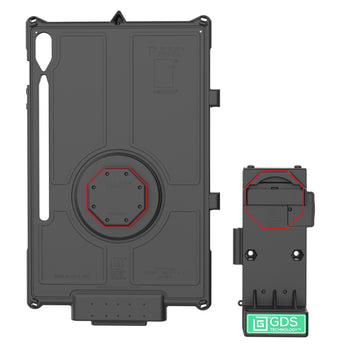

  • Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
  • USB Type-C Female connector provides high-speed charging to the dock
  • Backed by a 3-year warranty

hardware included:

(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts

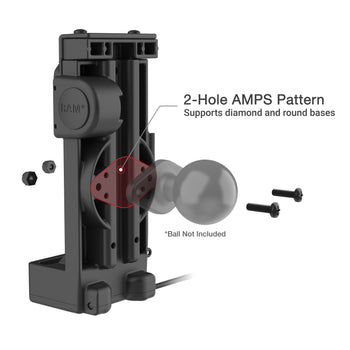

hole pattern:

2-Hole AMPS: 1.912"

materials:

High strength composite

packaging type:

Poly Bag

input connector:

USB Type-C

input cable length:

1 Meter

Warranty:

3 year warranty

Weight:

0.4 lb

Additional Information:

GDS® Uni-Conn™ Spring-Loaded docks are not recommended for high vibration or open cockpit applications, such as forklifts or semi-trucks. Consider the GDS® Uni-Conn™ Powered Dock for high vibration applications or the GDS® Tough-Dock™ for extreme applications.
