GDS® Uni-Conn™ Powered PoE Dock with Release Button
One Dock to Connect Them All™
$445.99
Overview

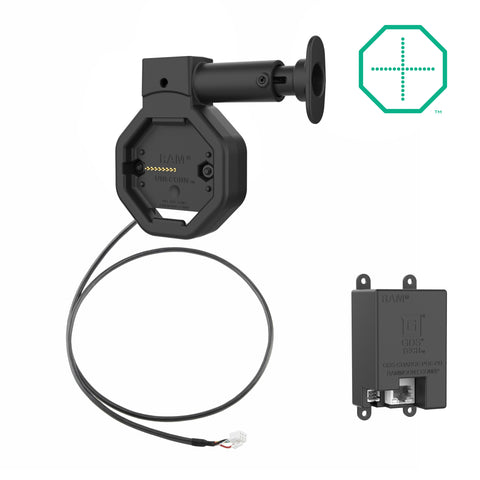

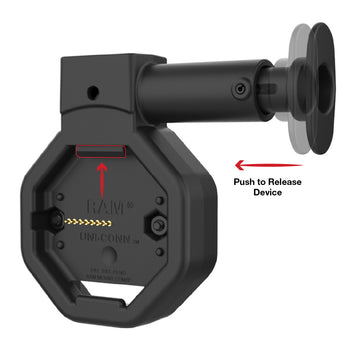

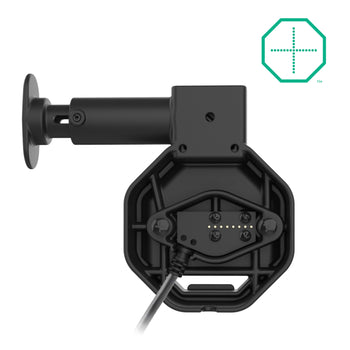

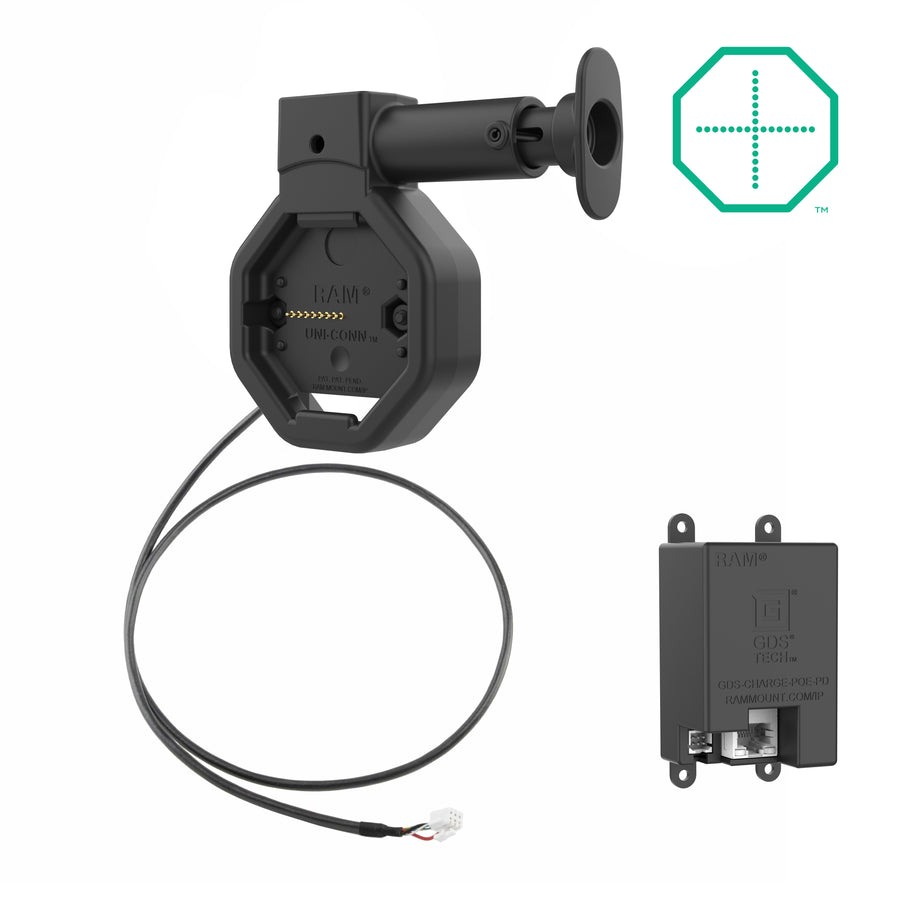

The GDS® Uni-Conn™ Powered PoE Dock with Release Button (RAM-GDS-DOCK-U5EU) is a versatile, quick-release docking solution for devices enclosed in an IntelliSkin® with rear pogo pads. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via the JST connector and PoE Adapter. It features an easy docking and undocking process; simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. This dock features a 2-hole AMPS pattern, allowing it to be integrated into the RAM® ball and socket mounting system with a RAM® Diamond or Round Ball Base. The snap-in attachment method makes this dock ideal for rugged environments, including vehicles. The GDS® Uni-conn™ dock is backed by a 3-year warranty. One Dock to Connect Them All™ Always Protected. Always Connected.®
Features
- Quick-release dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
- Designed for devices enclosed in IntelliSkin® with Rear Pogo Pads
- JST connector enables high-speed charging capabilities
- RAM® Compatible™; complete your solution with a diamond ball adapter, arm, and base of choice
- Backed by a 3-year warranty
hardware included:
(1) RAM® PoE to PD Charging Module
(2) #8-32 x 7/8" Machine Screws
(2) #8-32 Nylock Nuts
hole pattern:
2-Hole AMPS: 1.912"
materials:
High strength composite
packaging type:
Poly Bag
output voltage:
USB PD 3.0:
5V @ 3A
9V @ 2.2A
12V @ 1.67A
power output:
20W Max
input connector:
JST Connector
input cable length:
800mm
Warranty:
3 year warranty
Additional Information:
GDS® Uni-Conn™ Snap-In docks are not recommended for open cockpit applications, such as forklifts. Consider the GDS® Tough-Dock™ for extreme applications.
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
