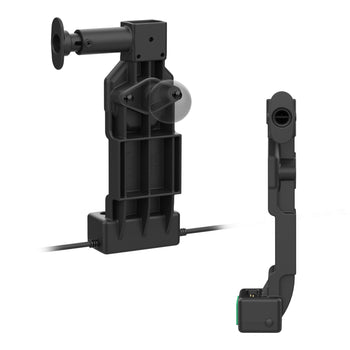

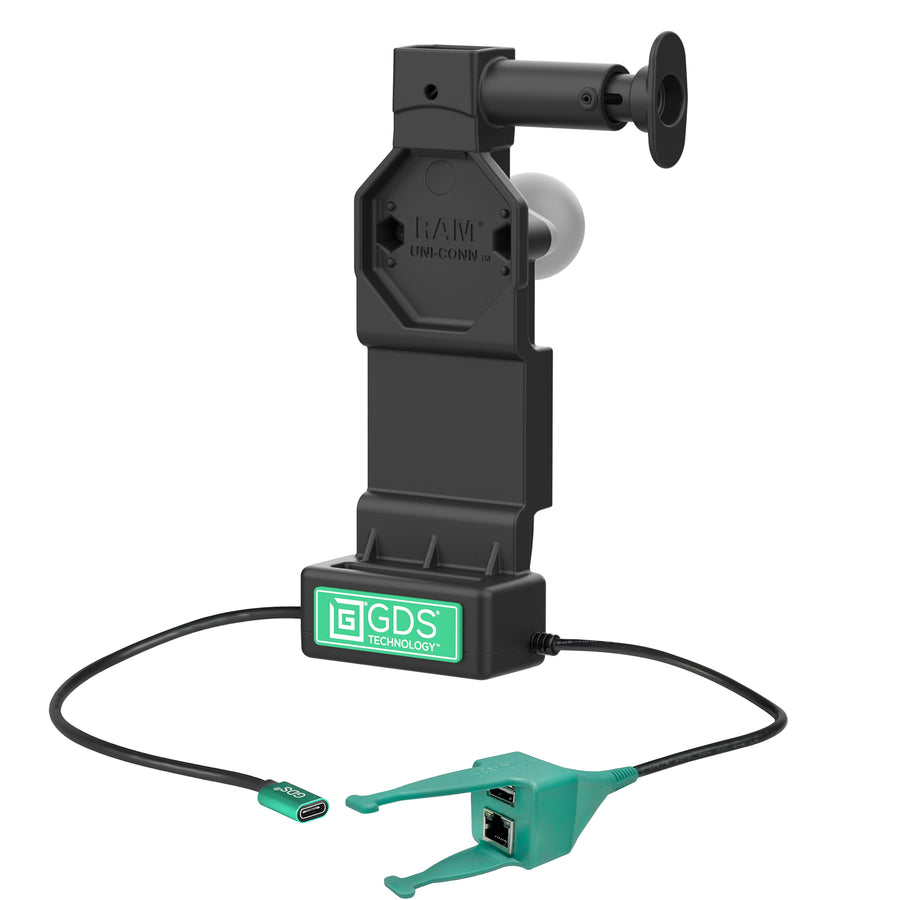

GDS® Uni-Conn™ Dock + USB-A & RJ45 with Release Button
Overview

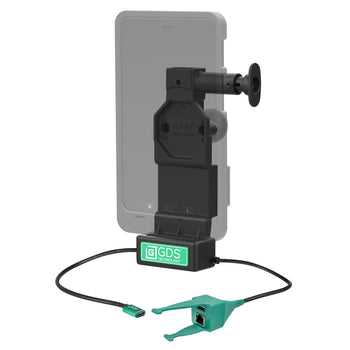

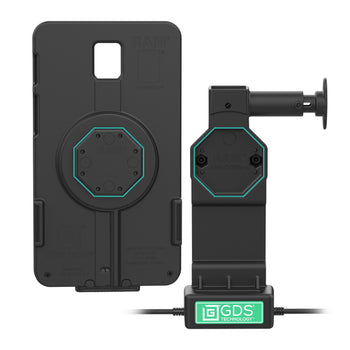

The GDS® Uni-Conn™ Dock + USB-A & RJ45 with Release Button (RAM-GDS-DOCK-U4CP-RJ45AU) is a revolutionary universal docking platform. This quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It also includes a dual-input pigtail that features one RJ45 (ethernet) connector for a direct and secure connection to your network alongside one USB Type-A female connector for connecting peripherals to your tablet. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of the quick-release button frees the device. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. The GDS® Uni-Conn™ dock is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™.
Features

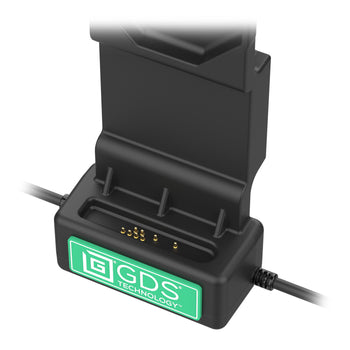

- Dock features GDS® Technology™ for charging capabilities via pogo pin connectors; uses USB-C female cable to connect to power
- Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed; RAM® Mounts Compatible™

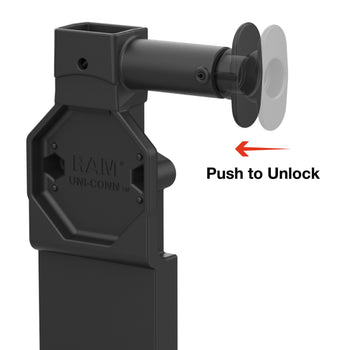

- Uni-Conn™ dock features a quick-release button for easy device insertion and removal
- Power delivered via USB-C connector; data and ethernet connects to dual USB-A and RJ45 connector
- Backed by a 3-year warranty
hardware included:
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nyloc Nuts
(1) Cable Clamp Kit
hole pattern:
2-Hole AMPS: 1.912"
materials:
High strength composite
packaging type:
Poly Bag
output voltage:
5V - 20V @ 3A
power output:
60W
input connector:
USB Type-C (Power In)
input cable length:
215mm
output connector:
(1) USB Type-A & (1) RJ45 Female
output cable length:
215mm
peripheral output:
900mA
Warranty:
3 year warranty
Weight:
0.77 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
