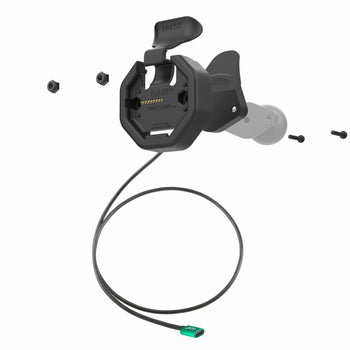

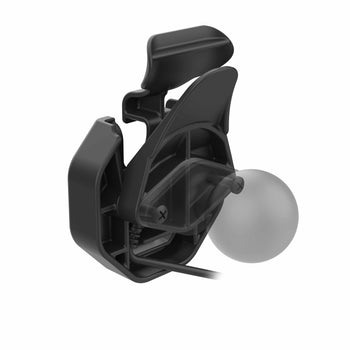

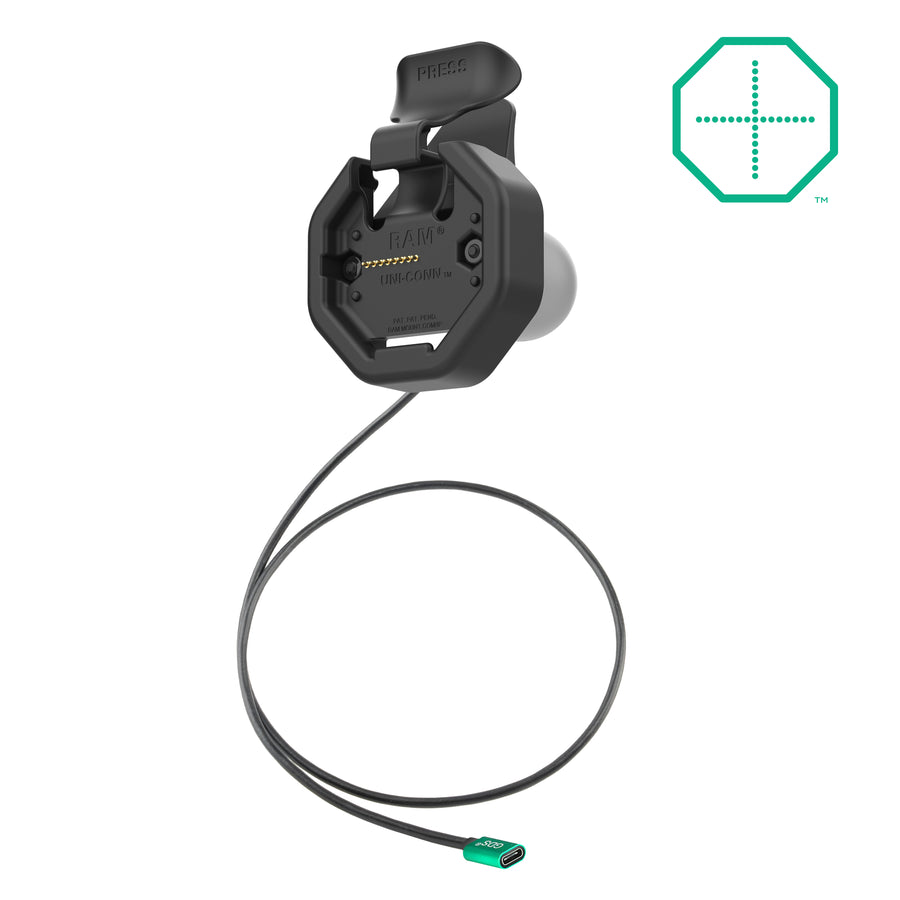

GDS® Uni-Conn™ Powered Snap-In Dock with USB-C Connector | |
---|---|
Part #:
RAM-GDS-DOCK-U3CPU
UPC:
793442022654
Patented & Pats. Pend.
Features
|
![]() |
Product Information | |
---|---|
Overview | The GDS® Uni-Conn™ Powered Snap-In Dock with USB-C Connector (RAM-GDS-DOCK-U3CPU) is a versatile snap-in docking solution for devices enclosed in an IntelliSkin® Thin-Case™ with rear pogo pads. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via the USB-C connector. This dock features a 2-hole AMPS pattern, allowing it to be integrated into the RAM® ball and socket mounting system with a RAM® Diamond or Round Ball Base. The snap-in attachment method makes this dock ideal for rugged environments, including vehicles. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. One Dock to Connect Them All™ Always Protected. Always Connected.® |
Specifications | |
---|---|
hardware included | (1) Lever Stop (2) #8-32 x 1.125" Machine Screws (2) #8-32 Nylock Nuts |
hole pattern | 2-Hole AMPS: 1.912" |
materials | High strength composite |
packaging type | Poly Bag |
output voltage | USB-C Tablets: 5V - 20V @ 3A Max mUSB Tablets: 9V @ 1.67A Max |
power output | 60W Max |
input connector | USB Type-C (Female) |
input cable length | 800mm |
Warranty | 3 year warranty |
Weight | 0.33 lb |
Additional Information | The Lever Stop included with this dock is required in order to function properly. Warranty on dock is void if dock is used without Lever Stop. GDS® Uni-Conn™ docks are not recommended for high vibration applications such as forklifts. |

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-GDS-DOCK-U3CPU!
We'll email you once the item is available.
Overview
The GDS® Uni-Conn™ Powered Snap-In Dock with USB-C Connector (RAM-GDS-DOCK-U3CPU) is a versatile snap-in docking solution for devices enclosed in an IntelliSkin® Thin-Case™ with rear pogo pads. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via the USB-C connector. This dock features a 2-hole AMPS pattern, allowing it to be integrated into the RAM® ball and socket mounting system with a RAM® Diamond or Round Ball Base. The snap-in attachment method makes this dock ideal for rugged environments, including vehicles. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. One Dock to Connect Them All™ Always Protected. Always Connected.®
Features
- Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
- Designed for devices enclosed in the IntelliSkin® Thin-Case™ with Rear Pogo Pads
- USB Type-C female connector enables high-speed charging capabilities
- Backed by a 3-year warranty
hardware included:
(1) Lever Stop
(2) #8-32 x 1.125" Machine Screws
(2) #8-32 Nylock Nuts
hole pattern:
2-Hole AMPS: 1.912"
materials:
High strength composite
packaging type:
Poly Bag
output voltage:
USB-C Tablets: 5V - 20V @ 3A Max
mUSB Tablets: 9V @ 1.67A Max
power output:
60W Max
input connector:
USB Type-C (Female)
input cable length:
800mm
Warranty:
3 year warranty
Weight:
0.33 lb
Additional Information:
The Lever Stop included with this dock is required in order to function properly. Warranty on dock is void if dock is used without Lever Stop. GDS® Uni-Conn™ docks are not recommended for high vibration applications such as forklifts.
