GDS® Tough-Dock™ with PoE + Single USB-A for Samsung Tab A9+ | |
---|---|
Part #:
RAM-GDS-DOCK-SAM88EDU
UPC:
793442024542
Patented & Pats. Pend.
Features
|
![]() |
Product Information | |
---|---|

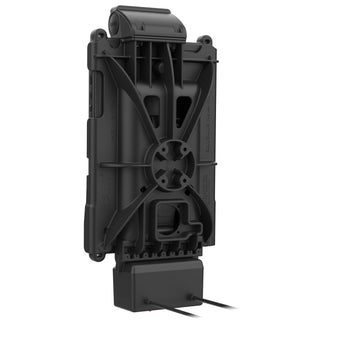

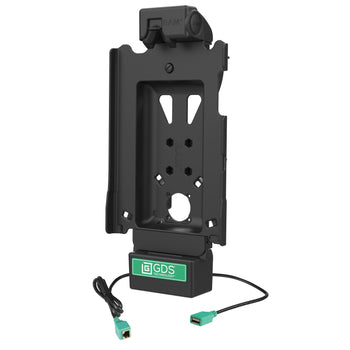

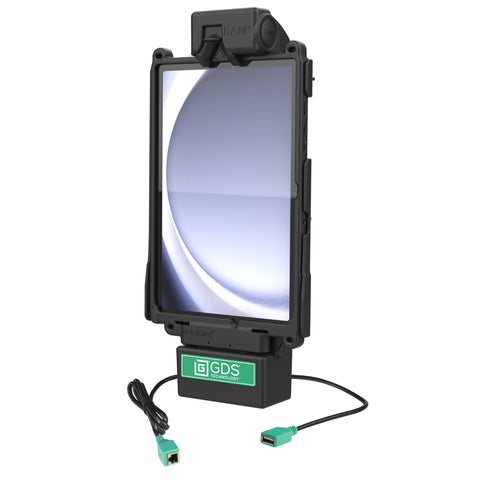

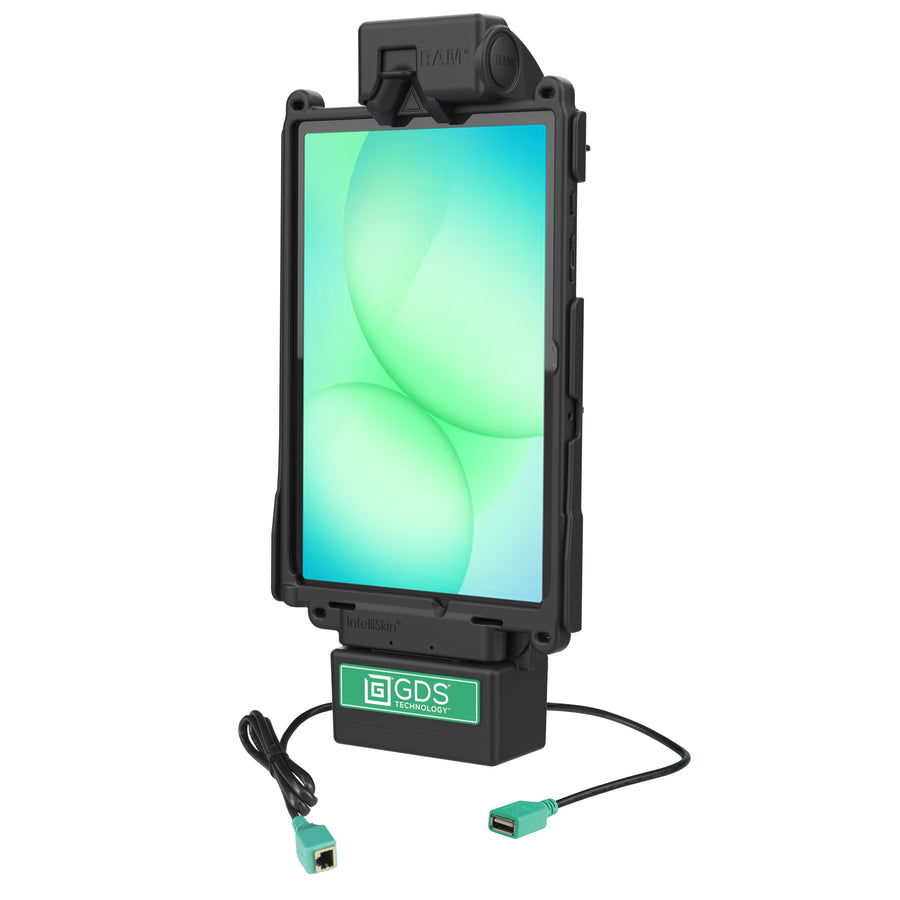

Overview | The GDS® Tough-Dock™ with PoE + Single USB-A for Samsung Tab A9+ (RAM-GDS-DOCK-SAM88EDU) is a vehicle dock designed to support the Samsung Galaxy Tab A9+ in an IntelliSkin® Next Gen protective sleeve. Using a RJ45 connector, the GDS® Tough-Dock™ provides Power over Ethernet (PoE) to keep your device connected and protected. The USB-A pigtail allows you to connect one input device such as a mouse, keyboard, scanner gun, & more.The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.® |
Specifications | |
---|---|
hardware included | (4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (1) Cable Clamp Kit |
hole pattern | 4-Hole AMPS: 1.181" x 1.496" |
materials | High strength composite |
packaging type | Poly Bag |
output voltage | 5V - 20V @ 3A Max |
power output | 60W Max |
input connector | RJ45 Ethernet Female |
input cable length | 1 Meter |
output connector | (1) USB 2.0 Type A |
output cable length | 250mm |
peripheral output | 500mAh |
transfer speed | 10/100Mbps |
Warranty | 3 year warranty |
Weight | 1.79 lb |
Compatible Devices
Samsung
Galaxy Tab A9+ with IntelliSkin® Next Gen
Kit Components
Compatible Devices
Samsung
Galaxy Tab A9+ with IntelliSkin® Next Gen
Kit Components

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-GDS-DOCK-SAM88EDU!
We'll email you once the item is available.
Overview
The GDS® Tough-Dock™ with PoE + Single USB-A for Samsung Tab A9+ (RAM-GDS-DOCK-SAM88EDU) is a vehicle dock designed to support the Samsung Galaxy Tab A9+ in an IntelliSkin® Next Gen protective sleeve. Using a RJ45 connector, the GDS® Tough-Dock™ provides Power over Ethernet (PoE) to keep your device connected and protected. The USB-A pigtail allows you to connect one input device such as a mouse, keyboard, scanner gun, & more.The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
Features

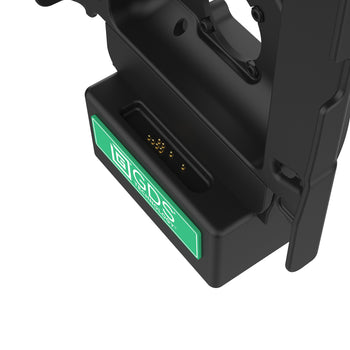

- Spring-loaded key-locking vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high speed charging
- Designed specifically for the Samsung Galaxy Tab A9+ wrapped in an IntelliSkin® Next Gen protective sleeve
- RJ45 connector provides Power over Ethernet (PoE) to the dock, USB-A provides data sync for peripheral connection
- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Backed by a 3-year warranty
hardware included:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp Kit
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
output voltage:
5V - 20V @ 3A Max
power output:
60W Max
input connector:
RJ45 Ethernet Female
input cable length:
1 Meter
output connector:
(1) USB 2.0 Type A
output cable length:
250mm
peripheral output:
500mAh
transfer speed:
10/100Mbps
Warranty:
3 year warranty
Weight:
1.79 lb
