$210.49
Non-Locking, Single USB-A Peripheral

Features

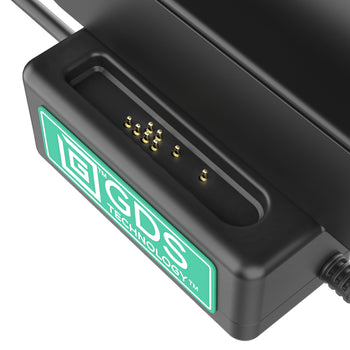

  • Spring-loaded vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide charging and connection to one additional USB peripheral
  • Designed specifically for the Samsung Galaxy Tab A8 10.5" SM-X200 wrapped in an IntelliSkin® Next Gen protective sleeve

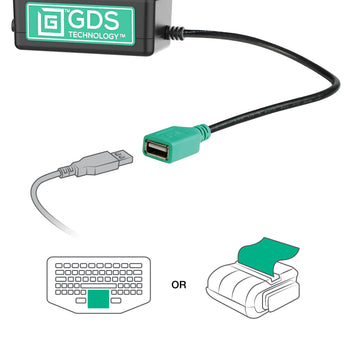

  • Power delivered via USB-C connector; connect a single input device via USB-A connector
  • RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
  • Backed by a 3-year warranty

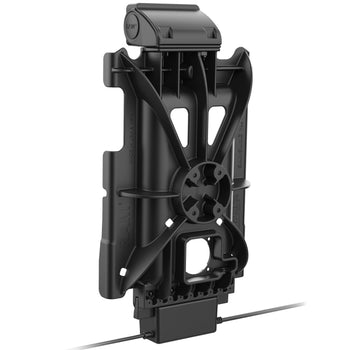

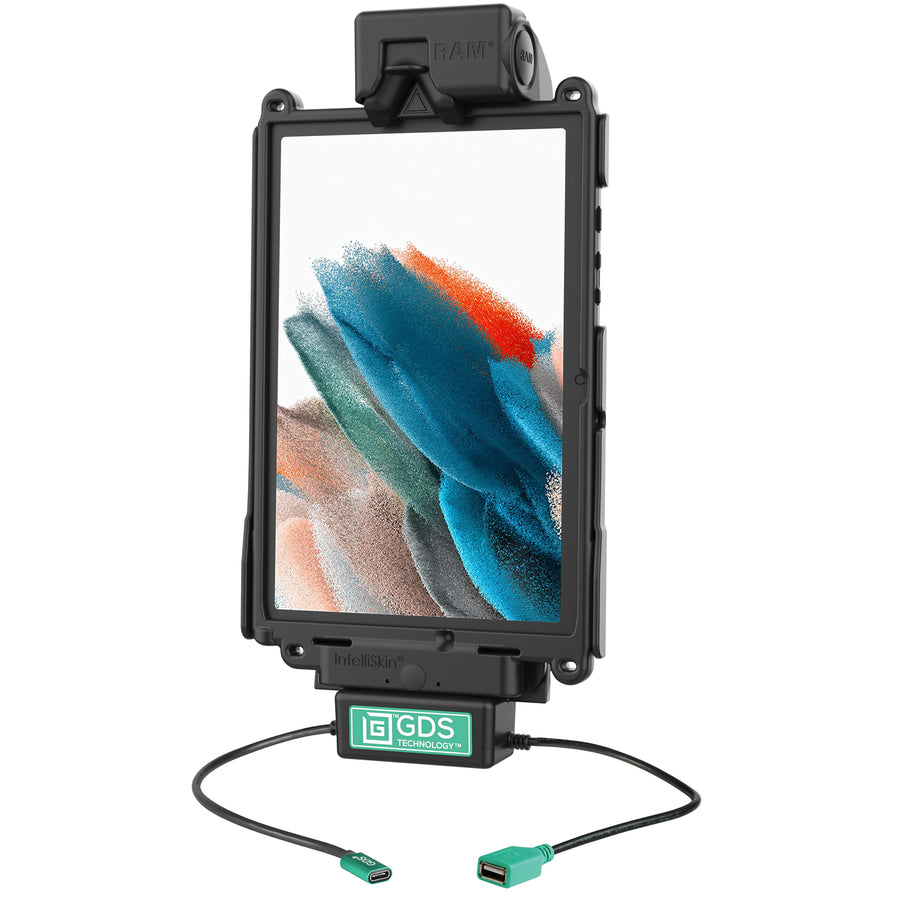

GDS® Tough-Dock™ + Single USB-A for Samsung Tab A8 10.5" SM-X200
Always Protected. Always Connected.®
Part#:RAM-GDS-DOCK-SAM83CDU UPC:793442916984 Patented & Pats. Pend.
This GDS® Tough-Dock™ vehicle dock is designed to support the Samsung Galaxy Tab A8 10.5" SM-X200 in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a USB Type-A connector to support a peripheral add-on such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

hardware included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts

hole pattern

4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

output voltage

5V - 12V @ 2A

power output

15W

input connector

USB Type-C
USB Type A for 1 Peripheral

input cable length

215mm

output cable length

215mm

peripheral output

500mAh

Warranty

3 year warranty

Weight

1.15 lb

Components

GDS® Tough-Dock™ & Cool-Dock™ Top Latch RAM-GDS-DOCKH2U $32.99
GDS® Tough-Dock™ Body for Samsung Tab A8 10.5 SM-X200 RAM-GDS-DOCKB-SAM83U $42.49
GDS® Power + Single USB-A Dock Cup for IntelliSkin® Next Gen Tablets RAM-GDS-DOCK-V10PDU $137.99
