Patented & Pats. Pend.

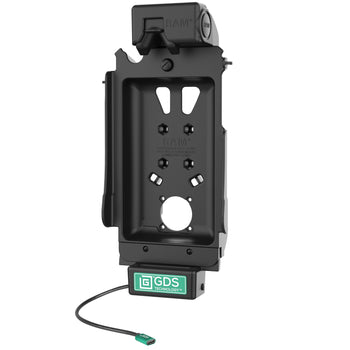

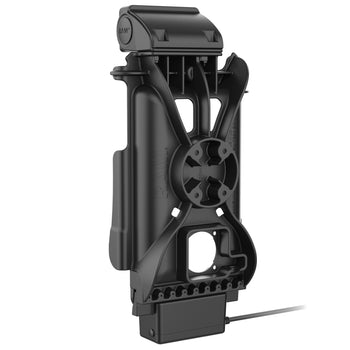

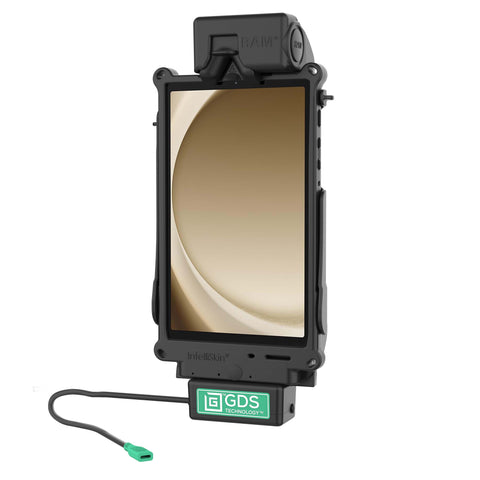

GDS® Tough-Dock™ for Samsung Tab A11 & Tab A9

Always Protected. Always Connected.®
Part#: RAM-GDS-DOCK-SAM80CPU
UPC: 793442110665
$178.99

Overview

The GDS® Tough-Dock™ is the newest vehicle dock in the GDS® Tech™ line of vehicle docks designed to support the Samsung Galaxy Tab A11, Tab A9 & A7 Lite 8.7" in an IntelliSkin® Next Gen protective sleeve for your fleet. Using a USB Type-C power connector, the GDS® Tough-Dock™ supports high speed charging capabilities while docked. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

Features

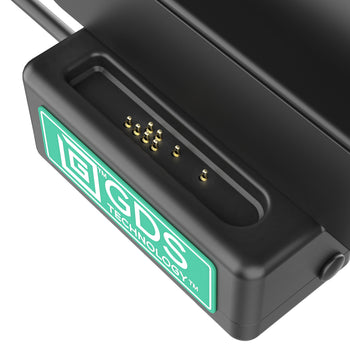

  • Spring-loaded vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high speed charging
  • Designed specifically for the Samsung Galaxy Tab A11, Tab A9 & Tab A7 Lite 8.7" wrapped in an IntelliSkin® Next Gen protective sleeve
  • Incorporated into the bottom docking cup is a USB Type-C Female connector for providing high speed charging to the dock
  • RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
  • Backed by a 3-year warranty

hardware included:

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) USB Type-C to Type-A Cable

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

materials:

High strength composite

packaging type:

Poly Bag

output voltage:

5V - 20V @ 3A

power output:

60W

input connector:

USB Type-C

Warranty:

3 year warranty

Weight:

1.25 lb

Additional Information:

IntelliSkin® not included.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Documents

GDS® Tech™ Catalog
Samsung Catalog

QUESTIONS & ANSWERS

Have a Question?

Ask a Question

  • Can I upgrade this dock to work with different tablets?

    Unfortunately no. Unlike the original GDS docks the back plates of the new Tough Docks are designed to fit specific tablet models and aren't interchangeable.
