Patented & Pats. Pend.

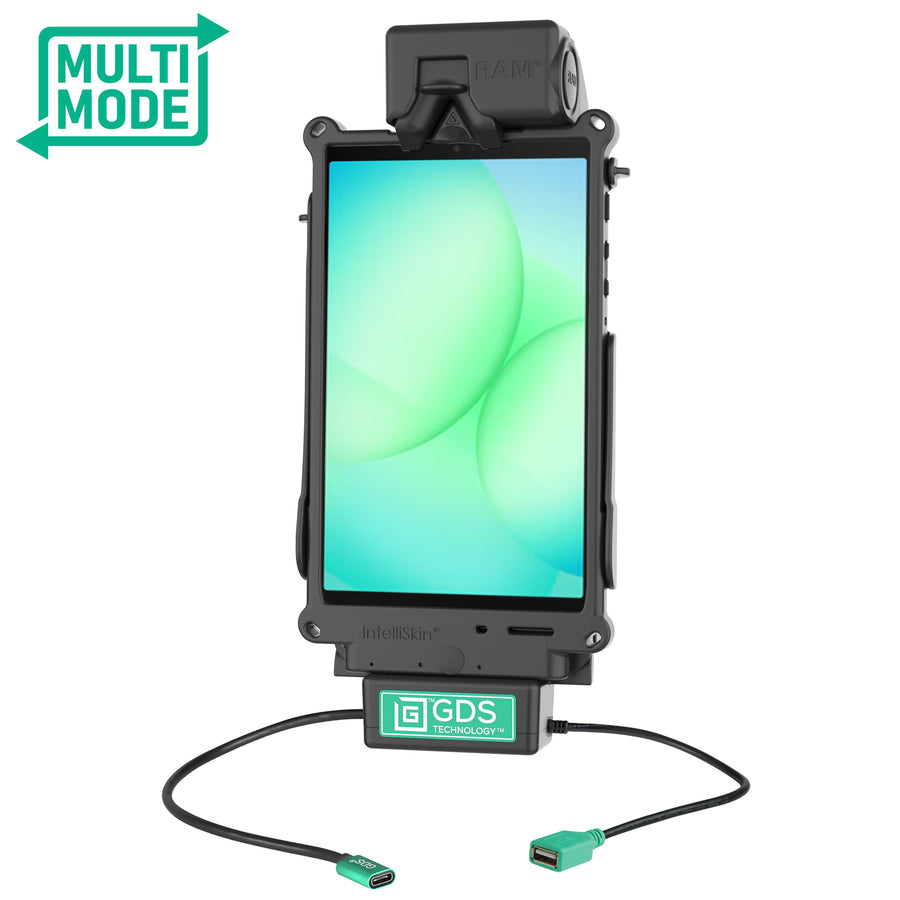

GDS® Tough-Dock™ with Multi-Mode for Samsung Tab A9 & A7 Lite 8.7"
Always Protected. Always Connected.®
Part#: RAM-GDS-DOCK-SAM80-MMU
UPC: 793442017193
$214.99

Overview

The GDS® Tough-Dock™ for Samsung Tab A9 & A7 Lite 8.7" with Multi-Mode (RAM-GDS-DOCK-SAM80-MMU) is a vehicle dock designed to support the Samsung Galaxy Tab A9 & A7 Lite 8.7" in an IntelliSkin® Next Gen protective sleeve for your fleet. Mutli-Mode is integrated into the dock allowing centralized AI systems to perform as the host instead of the tablet, turning your IntelliSkin®-wrapped tablet into a peripheral. There is no button or switch that turns this function on and off—Multi-Mode is automatically activated when the device is docked. Using a USB Type-C power connector, the GDS® Tough-Dock™ supports high speed charging capabilities for the Galaxy Tab A9 & A7 Lite 8.7". The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

Features

  • Multi-mode allows for centralized AI software systems to access tablets when docked
  • Designed specifically for the Samsung Galaxy Tab A9 & A7 Lite 8.7" wrapped in an IntelliSkin® Next Gen protective sleeve
  • Integrated pogo pin connectors provide high speed charging to devices via integrated USB Type-C Female connector
  • RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
  • Backed by a 3-year warranty

hardware included:

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp with Zip Ties
(1) USB Type-C to Type-A Cable

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

materials:

High strength composite

packaging type:

Poly Bag

output voltage:

5V - 12V @ 3A max
Peripheral: 5V @ 900mA max

power output:

15W

input connector:

USB Type-C
USB Type A for 1 Peripheral

output cable length:

215mm

peripheral output:

500mAh

Warranty:

3 year warranty
