GDS® Tough-Dock™ + Single USB-A for Samsung Tab Active5 & 3
Always Protected. Always Connected.®
$254.99
Non-Locking + Single USB-A Peripheral
Features

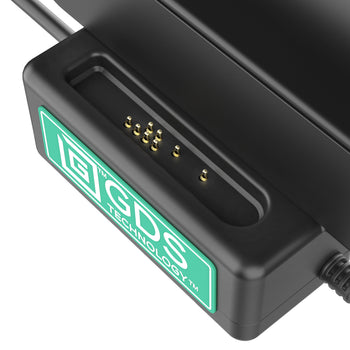

- Spring-loaded vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide charging and connection to one additional USB peripheral
- Designed specifically for the Samsung Galaxy Tab Active5, Tab Active3 and 2 wrapped in an IntelliSkin® Next Gen protective sleeve

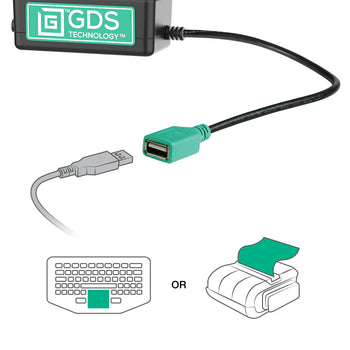

- Power delivered via USB-C connector; connect a single input device via USB-A connector
- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Backed by a 3-year warranty

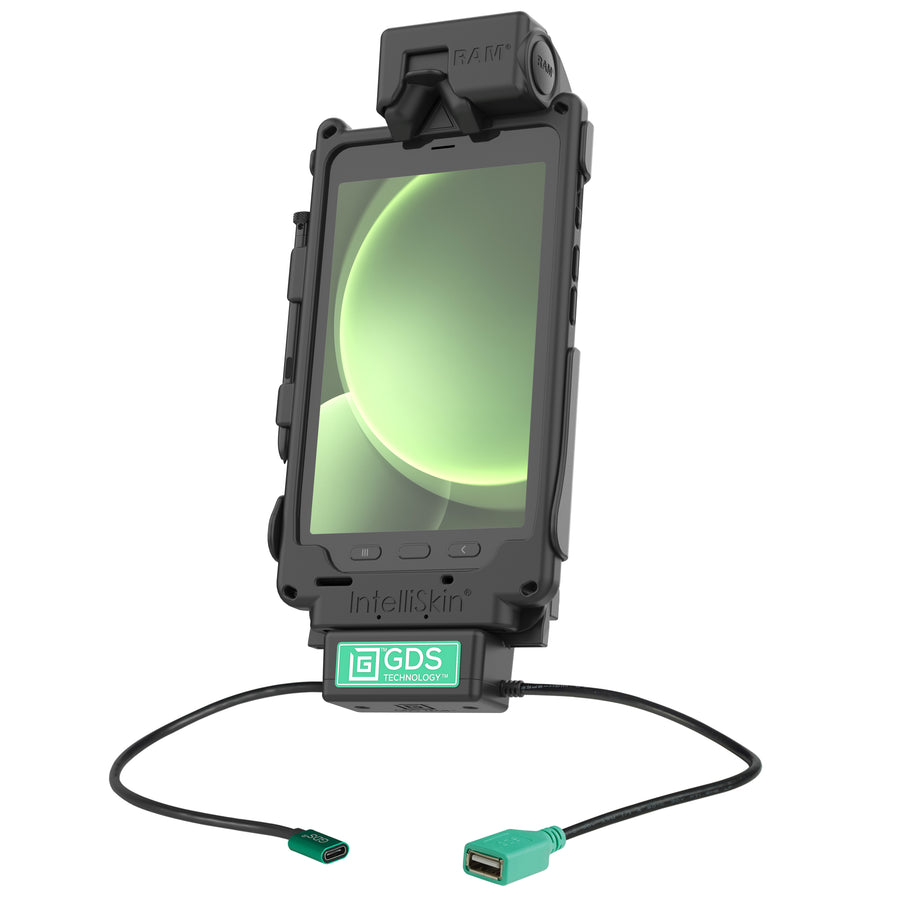

This GDS® Tough-Dock™ vehicle dock is designed to support the Samsung Galaxy Tab Active5, Tab Active3 and 2 in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a USB Type-A connector to support a peripheral add-on such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
GDS® Tough-Dock™ + Single USB-A for Samsung Tab Active5 & 3
Always Protected. Always Connected.®
Overview
This GDS® Tough-Dock™ vehicle dock is designed to support the Samsung Galaxy Tab Active5, Tab Active3 and 2 in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a USB Type-A connector to support a peripheral add-on such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) USB Type-C to Type-A Cable
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
output voltage
5V - 12V @ 3A max
Peripheral: 5V @ 900mA max
power output
15W
input connector
USB Type-C
USB Type A for 1 Peripheral
output cable length
215mm
peripheral output
500mAh
Warranty
3 year warranty
Weight
1.1 lb
Additional Information
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
