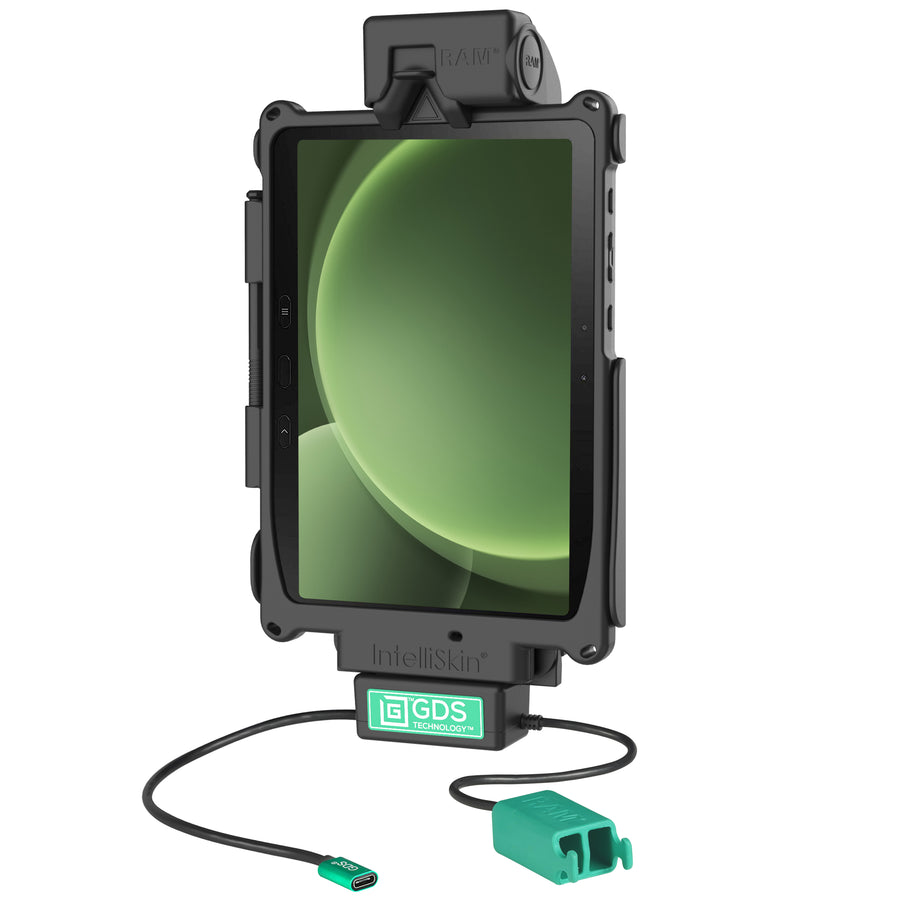

GDS® Tough-Dock™ + Dual USB-A for Tab Active4 Pro & Tab Active Pro
Always Protected. Always Connected.®
$287.99
USB-C 2.0 + Dual USB-A
Features
- Spring-loaded vehicle dock designed specifically for the Samsung Galaxy Tab Active4 Pro wrapped in an IntelliSkin® Next Gen protective sleeve
- Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A connector
- RAM® Mounts Compatible™ including RAM® NFC Extender and GDS® Hand-Stand™ Hand Strap and Kickstand
- Backed by a 3-year warranty

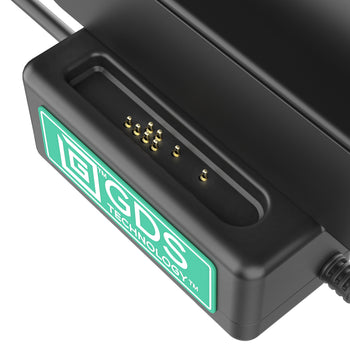

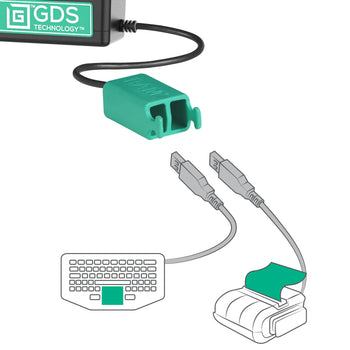

This GDS® Tough-Dock™ vehicle dock (RAM-GDS-DOCK-SAM54NCD2U) is designed to support the Samsung Galaxy Tab Active4 Pro in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a dual USB Type-A connector to support up to two peripheral add-ons such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is designed with housing that accomodates the RAM® NFC Extender, is compatible with RAM® ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
GDS® Tough-Dock™ + Dual USB-A for Tab Active4 Pro & Tab Active Pro
Always Protected. Always Connected.®
Overview
This GDS® Tough-Dock™ vehicle dock (RAM-GDS-DOCK-SAM54NCD2U) is designed to support the Samsung Galaxy Tab Active4 Pro in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a dual USB Type-A connector to support up to two peripheral add-ons such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is designed with housing that accomodates the RAM® NFC Extender, is compatible with RAM® ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) USB Type-C to Type-A Cable
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
output voltage
5V - 12V @ 3A max
Each Peripheral: 5V @ 900mA max
power output
15W
input connector
USB Type-C
Dual USB Type A for 2 Peripherals
output cable length
215mm
peripheral output
900mAh (per port)
Warranty
3 year warranty
Weight
1.8 lb
Components
GDS® Power + Dual USB-A Data Dock Cup for IntelliSkin® Next Gen Tablets
RAM-GDS-DOCK-V10PD2U
$149.49
