Patented & Pats. Pend.

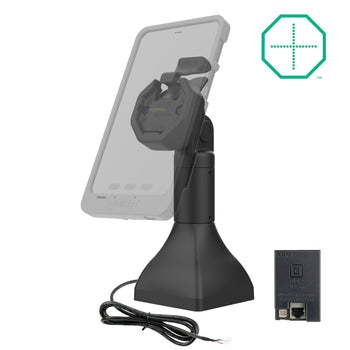

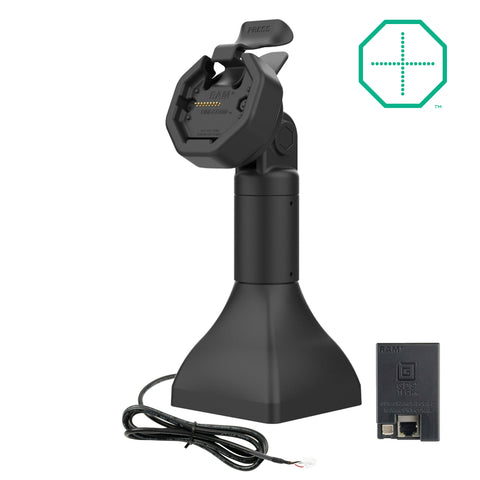

GDS® Uni-Conn™ Powered 7" Pedestal Dock with PoE
One Dock to Connect Them All™
Part#: RAM-GDS-DOCK-D11-7-U3E
UPC: 793442024634
$290.99

Overview

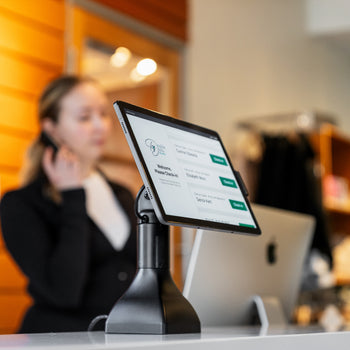

The GDS® Uni-Conn™ Powered 7" Pedestal Dock with PoE (RAM-GDS-DOCK-D11-7-U3E) is a free-standing, 7" pedestal dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Easily dock and undock your device with the assistance of the mechanical attachment mechanism. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via Power over Ethernet (PoE) connection. This dock features a drill-down attachment style, providing a stable base for the tall dock. One Dock to Connect Them All™ Always Protected. Always Connected.®

Features

  • 7" pedestal dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads
  • GDS® connector and pogo pins provide charging via Power over Ethernet (PoE); Mechanical attachment mechanism allows for quick docking and undocking
  • Dock swivels 180 degrees and enables connected devices to tilt 180 degress
  • Install dock to any surface with drill-down base
  • Backed by a 3-year warranty

hardware included:

(1) RAM® PoE to PD Charging Module

product dimensions:

Height from Base to Tilt Bolt: 7.24"
Base Width: 3.8"
Base Depth: 3.8"

materials:

Powder coated steel
High Strength Composite

packaging type:

Box

output voltage:

USB PD 3.0:
5V @ 3A
9V @ 2.2A
12V @ 1.7A

power output:

24W Max

input connector:

JST Male Connector

input cable length:

1.5 Meters

transfer speed:

10/100Mbps

Warranty:

3 year warranty

Weight:

2.1 lb

Print

Instructions

Assembly Instructions for Pedestal Dock

Documents

Drawing File
