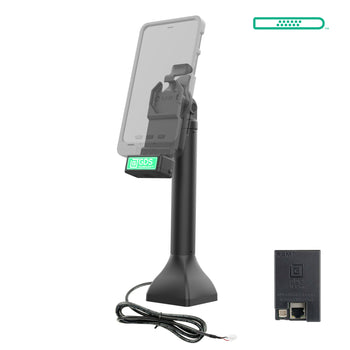

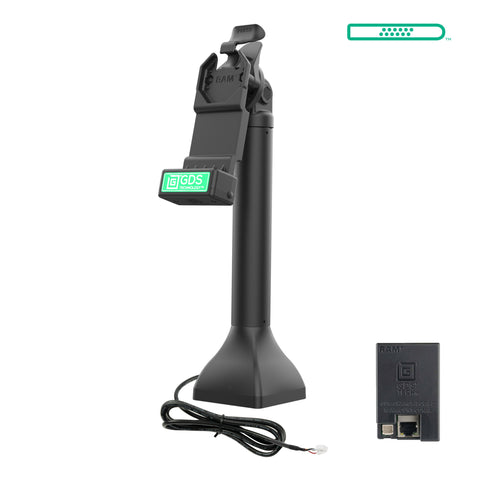

GDS® Uni-Conn™ 14" Pedestal Dock with PoE
One Dock to Connect Them All™
14", Non-Locking, Black
Features

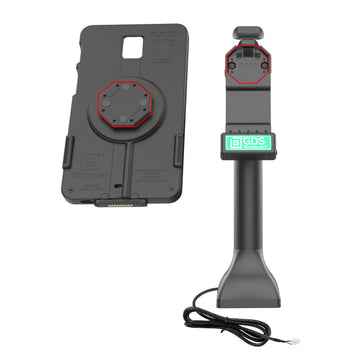

- 14" pedestal dock for devices enclosed in an IntelliSkin® with D-shaped bottom connection and GDS® Uni-Conn™ Adapter
- GDS® Uni-Conn™ dock pogo pins provide charging via PoE

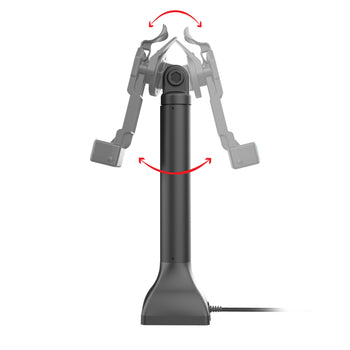

- Dock swivels 180 degrees and enables connected devices to tilt 180 degrees
- Install dock to any surface with drill-down base
- Backed by a 3-year warranty
The GDS® Uni-Conn™ 14" Pedestal Dock with PoE (RAM-GDS-DOCK-D11-14-U1E) is a free-standing, 14" pedestal dock for devices enclosed in an IntelliSkin® Next Gen, IntelliSkin® Hard Case, or standard IntelliSkin® Thin-Case™ with a GDS® Uni-Conn™ adapter. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ dock via Power over Ethernet (PoE) connection. This dock features a drill-down attachment style, providing a stable base for the tall dock. One Dock to Connect Them All™ Always Protected. Always Connected.®
GDS® Uni-Conn™ 14" Pedestal Dock with PoE
One Dock to Connect Them All™
Overview
The GDS® Uni-Conn™ 14" Pedestal Dock with PoE (RAM-GDS-DOCK-D11-14-U1E) is a free-standing, 14" pedestal dock for devices enclosed in an IntelliSkin® Next Gen, IntelliSkin® Hard Case, or standard IntelliSkin® Thin-Case™ with a GDS® Uni-Conn™ adapter. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ dock via Power over Ethernet (PoE) connection. This dock features a drill-down attachment style, providing a stable base for the tall dock. One Dock to Connect Them All™ Always Protected. Always Connected.®
hardware included

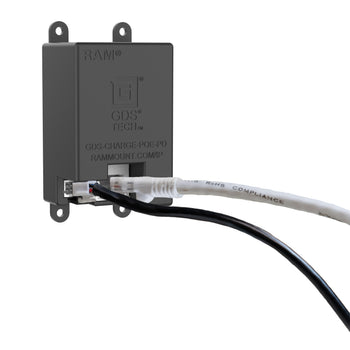

(1) RAM® PoE to PD Charging Module
materials
Powder coated steel
High Strength Composite
packaging type
Box
output voltage
USB PD 3.0:
5V @ 3A
9V @ 2.2A
12V @ 1.7A
power output
24W Max
input connector
JST Male Connector
input cable length
1.5 Meters
Warranty
3 year warranty
