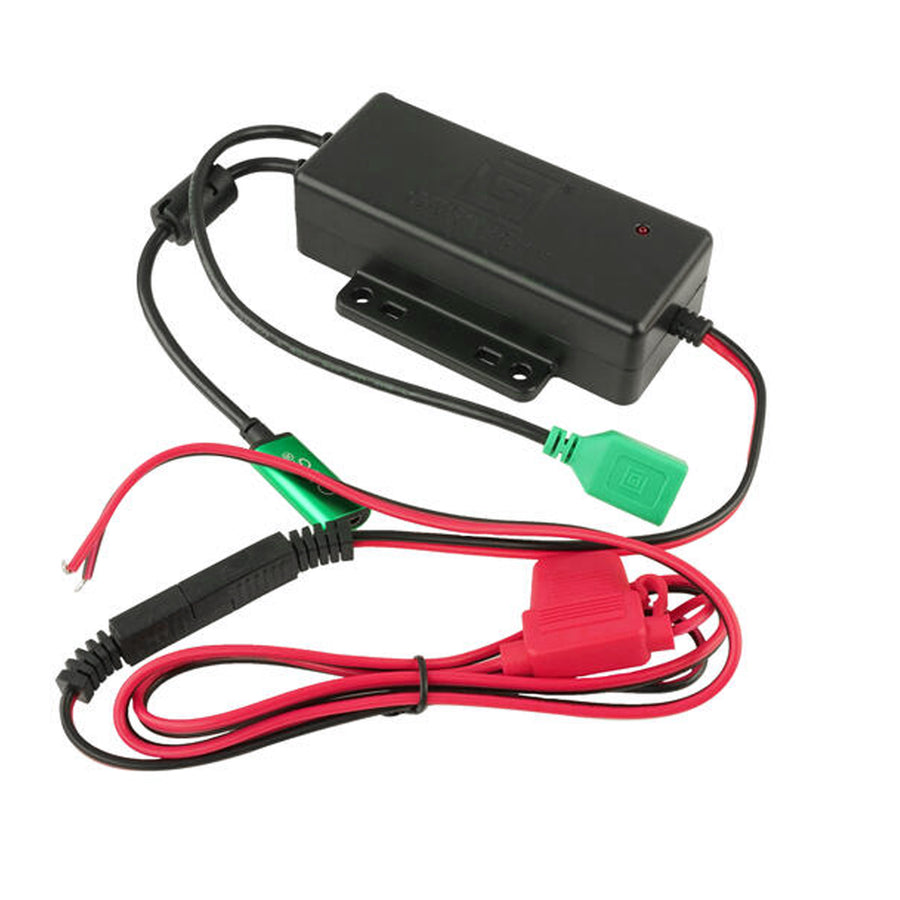

GDS® Hardwire Charger with USB Type-C Connector & USB Type A Port

Always Protected. Always Connected.®
Part#: RAM-GDS-CHARGE-V3FCA-2U
UPC: 793442031403
$103.49

Overview

The GDS® hardwire charger with USB Type-C female connector and USB Type-A port is the ideal solution for providing power to any USB Type-C GDS® vehicle solution, while also allowing for the use of a USB Type-A peripheral – such as a keyboard, mouse, or barcode scanner. By connecting directly to the power source of your vehicle, the GDS® Charge™ accessory delivers USB Type-C power to your device with an input voltage of 10-28V, and allows you to connect a USB 2.0 accessory. Avoid rewiring when changing or upgrading devices by simply unplugging the power connector and installing a new GDS® Charge™ accessory. Always Protected. Always Connected.®

Features

  • Hardwire charger includes USB Type-C female connection and USB Type-A female connection with an input voltage of 10-28V
  • Connect a peripheral to USB Type-A port such as a keyboard, mouse, barcode scanner, or vehicle dock
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

packaging type:

Poly Bag

input voltage:

10-28VDC

output voltage:

5V @ 1A (5W)
9V @ 2A (18W)
12V @ 2A (24W)

input connector:

Power: Female USB Type-C
Data: USB Type A (500ma)

input cable length:

1.2 Meters including 2 Pole Flat Marine Connector

output cable length:

150mm

operating temperature:

-20°C to +70°C

storage temperature:

-40°C to +85°C

regulatory:

Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)

certifications:

FCC, IC, CE RCM, WEEE, RoHS Compliant
USB Power Delivery 2.0 and 3.0 Support

Warranty:

3 year warranty

Weight:

0.47 lb

Additional Information:

To determine which hardwire charger is most suitable for your application, please see Hardwire Charger Compatibility Guide.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
