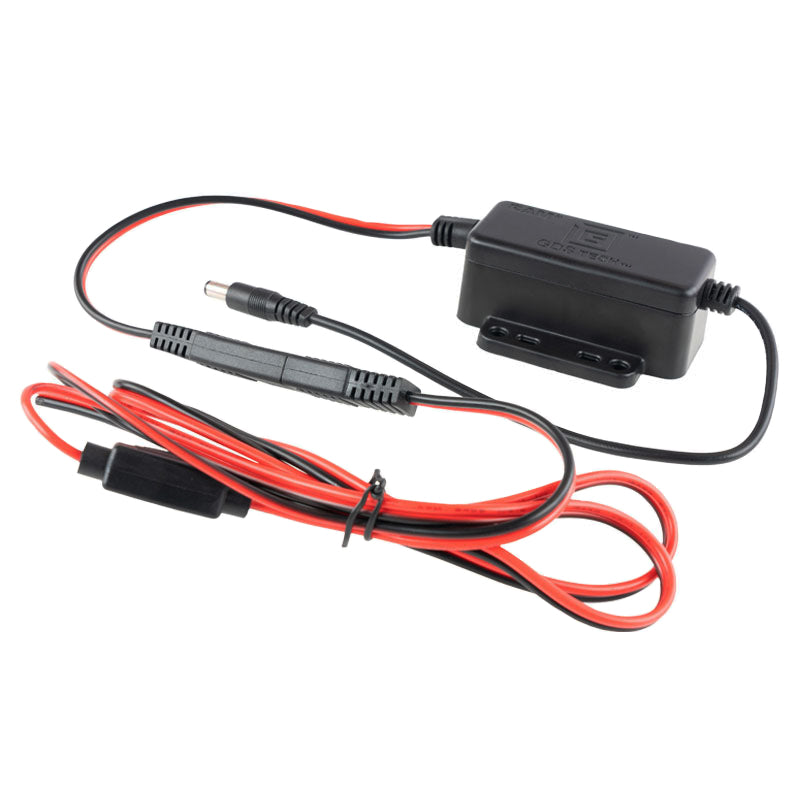

GDS® 10-32VDC Input (14VDC Output) Hardwire Charger with Male DC 5.5mm
Always Protected. Always Connected.®
Part#: RAM-GDS-CHARGE-V19U
UPC: 793442024221
$34.99

Overview

The GDS® 10-32VDC Input (14VDC Output) Hardwire Charger with Male DC 5.5mm (RAM-GDS-CHARGE-V19U) is the ideal solution for providing power to any RAM® or GDS® DC powered docking station. This hardwire charger has an input of 10-32VDC input & 14VDC output, ideal for most any vehicle applications. The GDS® Hardwire chargers were thoughtfully designed with long-term solutions in mind so when it comes time to upgrade, you avoid any rewiring by simply unplugging the power connector and attaching the new charger components.

Features

  • Hardwire charger includes male 5.5mm barrel connector; 10V-32V DC input range, 14VDC output
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • GDS® Ecosystem™ keeps devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

packaging type:

Poly Bag

input voltage:

10-32VDC

output voltage:

14VDC

output current:

3.5A max

input connector:

Male 5.5mm OD x 2.5mm ID Barrel Connector

input cable length:

1.2 Meters including 2 Pole Flat Marine Connector

output cable length:

.2 Meters

operating temperature:

-10°C to +70°C

storage temperature:

-40°C to +70°C

regulatory:

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
3A Inline ATC Fuse
18AWG Copper Wire

Warranty:

3 year warranty

Weight:

0.31 lb

Print

Instructions

Instructions for Modular Hardwire Charger
