$29.49
24-60VDC, 9VDC Output

Features

  • Hardwire charger includes male 5.5mm barrel connector; 24V-60V DC input range, 9VDC output
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

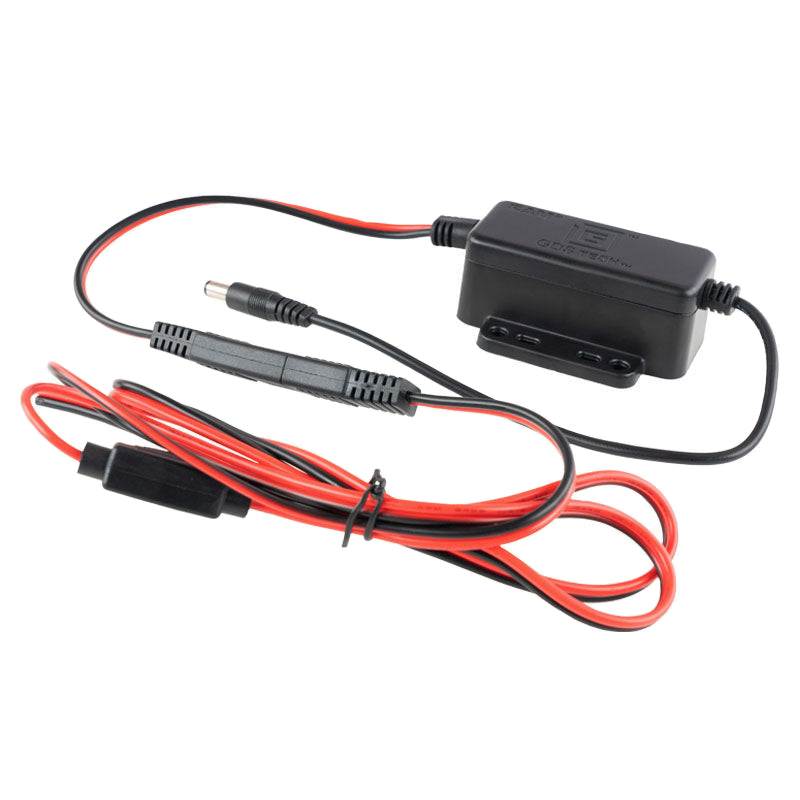

GDS® 24-60VDC Input (9VDC Output) Hardwire Charger with Male DC 5.5mm
Always Protected. Always Connected.®
Part#:RAM-GDS-CHARGE-V18U UPC:793442019340
The GDS® Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM® or GDS® DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 24-60VDC input, 9VDC output making it ideal for forklift mounts and material handling applications. Always Protected. Always Connected.®

packaging type

Poly Bag

input voltage

24-60VDC

output voltage

9VDC

output current

3.5A max

input connector

Male 5.5mm OD x 2.5mm ID Barrel Connector

input cable length

1.2 Meters including 2 Pole Flat Marine Connector

output cable length

.2 Meters

operating temperature

-10°C to +70°C

storage temperature

-40°C to +70°C

regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC

certifications

RCM Certification

Warranty

3 year warranty

Weight

0.3 lb
