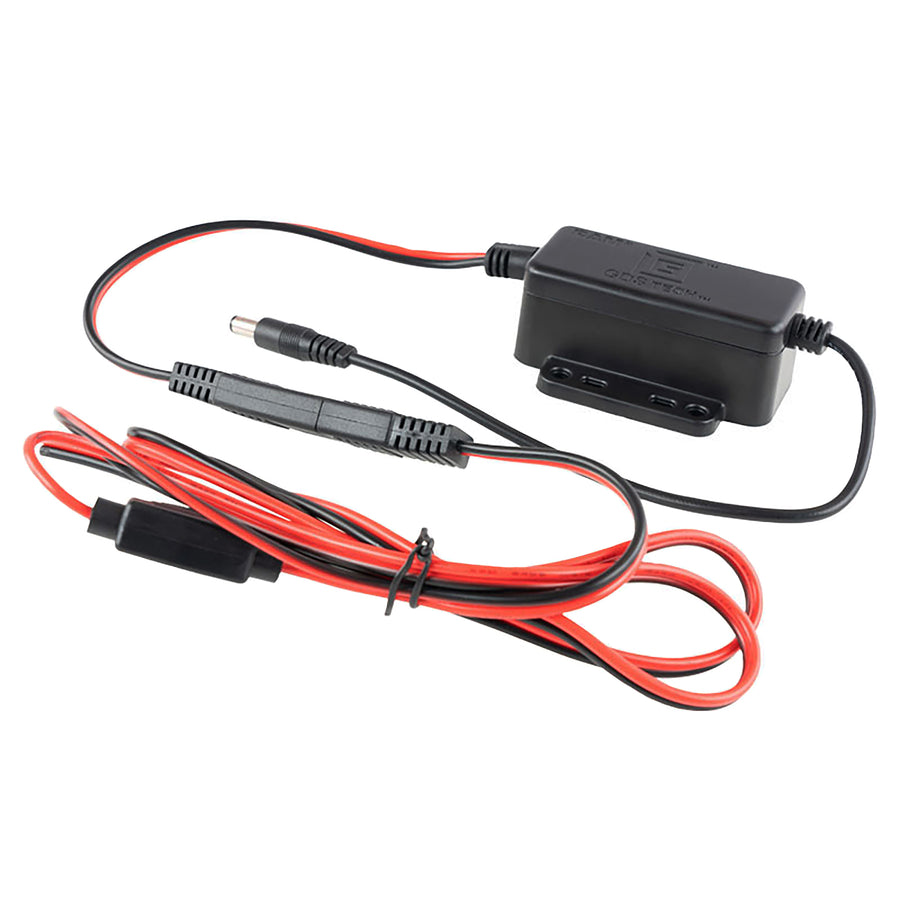

GDS® 28-60VDC Input (16VDC Output) Hardwire Charger with Male DC 5.5mm
Always Protected. Always Connected.®
$48.99
Overview
The GDS® Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM® or GDS® DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 28-60VDC and the 16VDC makes it ideal for a variety of applications. Always Protected. Always Connected.®
Features
- Hardwire charger includes male 5.5mm barrel connector; 28-60VDC input range, 16VDC output
- When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty
packaging type:
Poly Bag
input voltage:
28-60VDC
output voltage:
16VDC
output current:
3.5A max
input connector:
Male 5.5mm OD x 2.5mm ID Barrel Connector
input cable length:
1.2 Meters including 2 Pole Flat Marine Connector
output cable length:
.2 Meters
operating temperature:
-10°C to +70°C
storage temperature:
-40°C to +70°C
regulatory:
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications:
RCM Certification
Warranty:
3 year warranty
Weight:
0.3 lb
Additional Information:
To determine which hardwire charger is most suitable for your application, please see Hardwire Charger Compatibility Guide.
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
