RAM® Fishfinder Deck Kit with Humminbird Helix 8-10 & XPLORE Mount
Part #: RAM-FF1-D-202-25-202 UPC: 793442027338 Features Supports up two fishfinders for maximum data intake; ideal for bow or rear-mounted fishfinder setups Compatible with Humminbird Helix 8-10 & XPLORE Includes AMPS and tri-hole patterns for RAM® D size bases Marine-grade aluminum construction with powder-coated finish Back by a Lifetime Warranty

Product Information

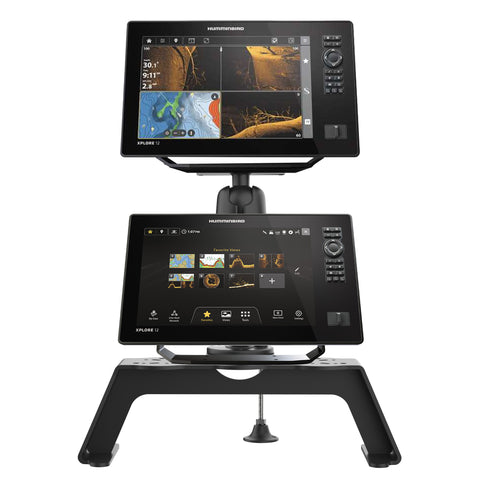

Overview	The RAM® Fishfinder Deck Kit with Humminbird Helix 8-10 & XPLORE Mount (RAM-FF1-D-202-25-202) is a robust, powder-coated aluminum bracket configured with a single D size fishfinder mount that allows you to mount two Humminbird fishfinders simultaneously. Whether you're trolling deep waters or scanning shallow coves, this heavy-duty mount helps you take in more data for smarter navigation and better results. Built for versatility, the Deck Mount features a wide array of pre-drilled hole patterns, including three sets of 4-hole AMPS patterns and three sets of tri-hole patterns for seamless integration with RAM® Mounts D size bases. This solution comes with the RAM® Foot Stabilizer for added support and stability in rough waters. Crafted from marine-grade aluminum, this fishfinder mounting bracket is corrosion-resistant and engineered to withstand harsh marine environments—lasting longer than your boat and standing up to the roughest conditions. In fact, we guarantee it with a Lifetime Warranty for all RAM® components.

Product Information

Overview

The RAM® Fishfinder Deck Kit with Humminbird Helix 8-10 & XPLORE Mount (RAM-FF1-D-202-25-202) is a robust, powder-coated aluminum bracket configured with a single D size fishfinder mount that allows you to mount two Humminbird fishfinders simultaneously. Whether you're trolling deep waters or scanning shallow coves, this heavy-duty mount helps you take in more data for smarter navigation and better results. Built for versatility, the Deck Mount features a wide array of pre-drilled hole patterns, including three sets of 4-hole AMPS patterns and three sets of tri-hole patterns for seamless integration with RAM® Mounts D size bases. This solution comes with the RAM® Foot Stabilizer for added support and stability in rough waters. Crafted from marine-grade aluminum, this fishfinder mounting bracket is corrosion-resistant and engineered to withstand harsh marine environments—lasting longer than your boat and standing up to the roughest conditions. In fact, we guarantee it with a Lifetime Warranty for all RAM® components.

Specifications

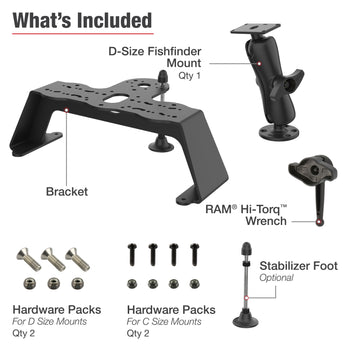

hardware included	Mounting Hardware (1) RAM® Hi-Torq™ Wrench (1) Foot Stabilizer

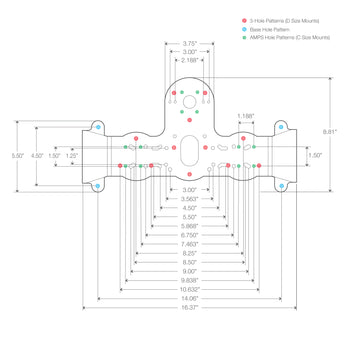

hole pattern	See Drawing
ball size	D Size (2.25")
weight capacity	Standard Use: 6 lbs Heavy-Duty Use: 5 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag

Questions about our products? Email us for support.

RAM® Fishfinder Deck Kit with Humminbird Helix 8-10 & XPLORE Mount

Part#: RAM-FF1-D-202-25-202

UPC: 793442027338

$368.49

Options

D Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

Supports up two fishfinders for maximum data intake; ideal for bow or rear-mounted fishfinder setups
Compatible with Humminbird Helix 8-10 & XPLORE
Includes AMPS and tri-hole patterns for RAM® D size bases
Marine-grade aluminum construction with powder-coated finish
Back by a Lifetime Warranty

hardware included:

Mounting Hardware
(1) RAM® Hi-Torq™ Wrench
(1) Foot Stabilizer

hole pattern:

See Drawing

ball size:

D Size (2.25")

weight capacity:

Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs

materials:

Marine-grade aluminum

packaging type:

Poly Bag
