RAM® Temp-Right™ Dock Heating Module for Zebra ET6x
$192.49
for Zebra ET6x
Features
- Heater module designed specifically for the Zebra ET6x RAM® and GDS® tablet docks
- Regulates the tablet's operating temperature by generating forced heat to the back of the tablet
- Integrated thermistor detects temperature and automatically activates the heater when temps reach below approximately 32-degrees fahrenheit
- Built-in safety plunger deactivates the heater when the device is undocked
- Backed by a 3-year warranty

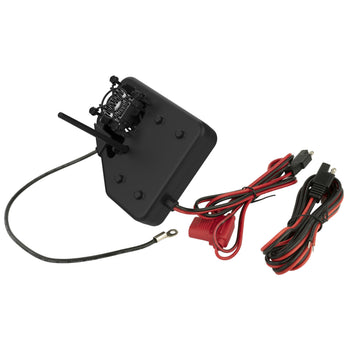

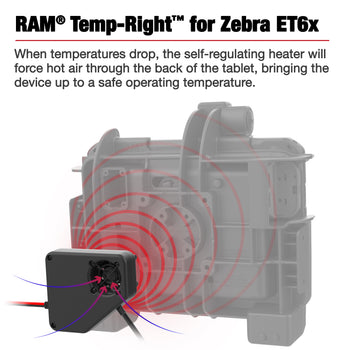

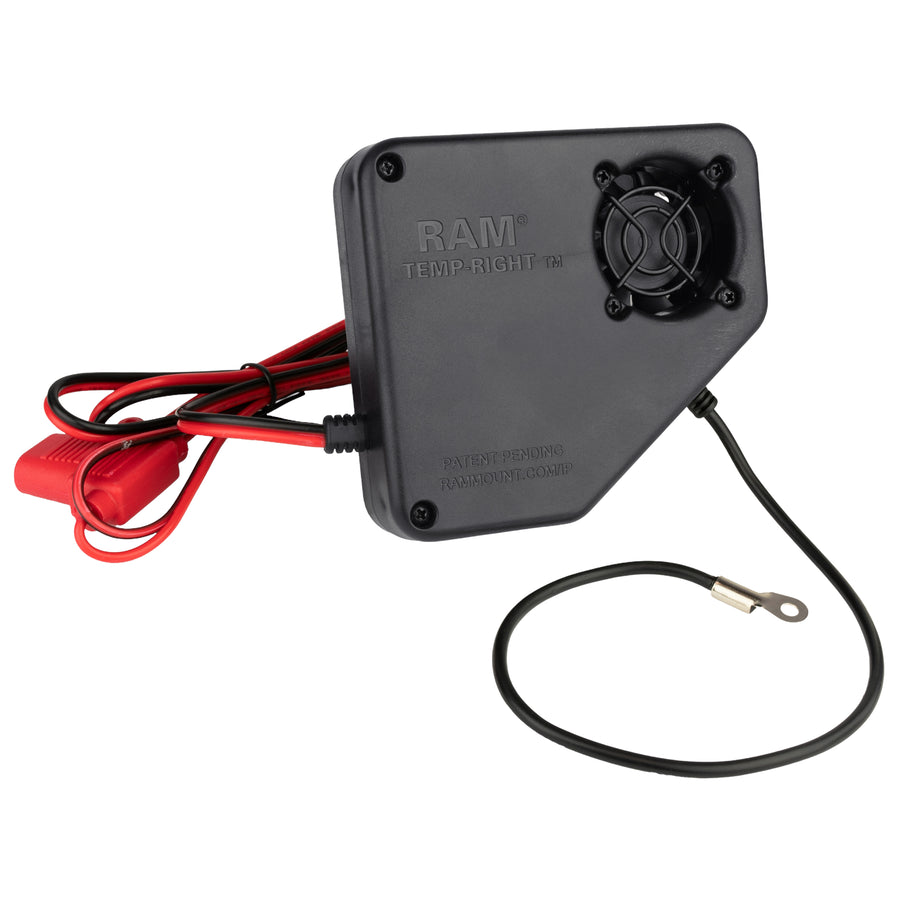

The RAM® Temp-Right™ Dock Heating Module for Zebra ET6x (RAM-DOCK-HEATER1-EU) is a self-regulating heater module available as an add-on accessory when your ET6x docking system is mounted in extremely cold environments. When installed to the dock and connected to a power source, the integrated thermistor detects when temperatures reach below 32-degrees fahrenheit, automatically activates the heater, and forces hot air throughout the back of the tablet via a 12-VDC Axial cooling fan. The heater will bring the device up to safe operating temperatures and then automatically turns off. In addition, a built-in safety plunger prevents the heater from activating when the device is undocked. Once the device is docked, it presses on the safety plunger which will activate the functionalities of the Temp-Right™. This add-on accessory was built to keep devices operable specifically in cold environments for transportation & logistics and cold storage warehousing use cases.
RAM® Temp-Right™ Dock Heating Module for Zebra ET6x
Overview
The RAM® Temp-Right™ Dock Heating Module for Zebra ET6x (RAM-DOCK-HEATER1-EU) is a self-regulating heater module available as an add-on accessory when your ET6x docking system is mounted in extremely cold environments. When installed to the dock and connected to a power source, the integrated thermistor detects when temperatures reach below 32-degrees fahrenheit, automatically activates the heater, and forces hot air throughout the back of the tablet via a 12-VDC Axial cooling fan. The heater will bring the device up to safe operating temperatures and then automatically turns off. In addition, a built-in safety plunger prevents the heater from activating when the device is undocked. Once the device is docked, it presses on the safety plunger which will activate the functionalities of the Temp-Right™. This add-on accessory was built to keep devices operable specifically in cold environments for transportation & logistics and cold storage warehousing use cases.
hardware included
Assembly Hardware
materials
High strength composite
Stainless Steel
packaging type
Poly Bag
input voltage
11-16VDC
output voltage
12V @ 7.5A
power output
85W
output current
7.5A max
input cable length
1 Meter
operating temperature
-30°C to +70°C
storage temperature
-40°C to +85°C
regulatory
WEEE and RoHS Compliant
Warranty
3 year warranty
Weight
0.71 lb
Additional Information
24-60VDC Input (12VDC Output) Charger is required for this module. See RAM-GDS-CHARGE-V16U
