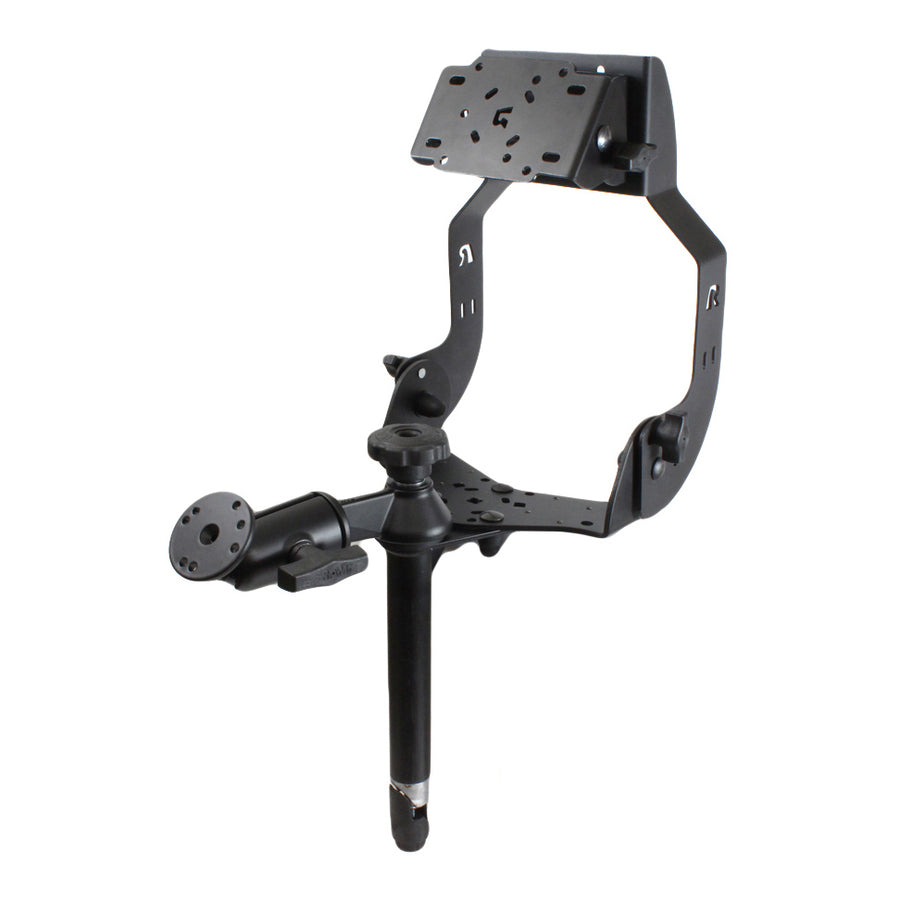

RAM® MDT Display Mount with Single Swing Arm and 8" Upper Pole
Part #: RAM-DIS-MDT1-8-SW1 UPC: 793442927331 Patented

Product Information
Overview	Mobile Data Terminal display mount with single swing arm and 8" Tele-Pole™ for RAM Tough-Box™ consoles. The single swing arm allows you to twist and tilt the viewing angle of your keyboard, when mounted to your console. Included is a 1.5" diameter rubber ball connected to a flat 2.5" diameter base. This mount has pre-drilled holes, including the universal AMPS hole pattern, which will attach to most keyboards.

Product Information

Overview

Mobile Data Terminal display mount with single swing arm and 8" Tele-Pole™ for RAM Tough-Box™ consoles. The single swing arm allows you to twist and tilt the viewing angle of your keyboard, when mounted to your console. Included is a 1.5" diameter rubber ball connected to a flat 2.5" diameter base. This mount has pre-drilled holes, including the universal AMPS hole pattern, which will attach to most keyboards.

Specifications
hardware included	Assembly Hardware
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Powder coated steel Marine-grade aluminum
packaging type	Poly Bag
Weight	11.0 lb

RAM® MDT Display Mount with Single Swing Arm and 8" Upper Pole

Questions about our products? Email us for support.

Patented

RAM® MDT Display Mount with Single Swing Arm and 8" Upper Pole

Part#: RAM-DIS-MDT1-8-SW1

UPC: 793442927331

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$262.99
