RAM® Double Ball Mount for Raymarine A50, A50D, A57D & A70
Part #: RAM-D-101-RM1U UPC: 793442925443

Product Information

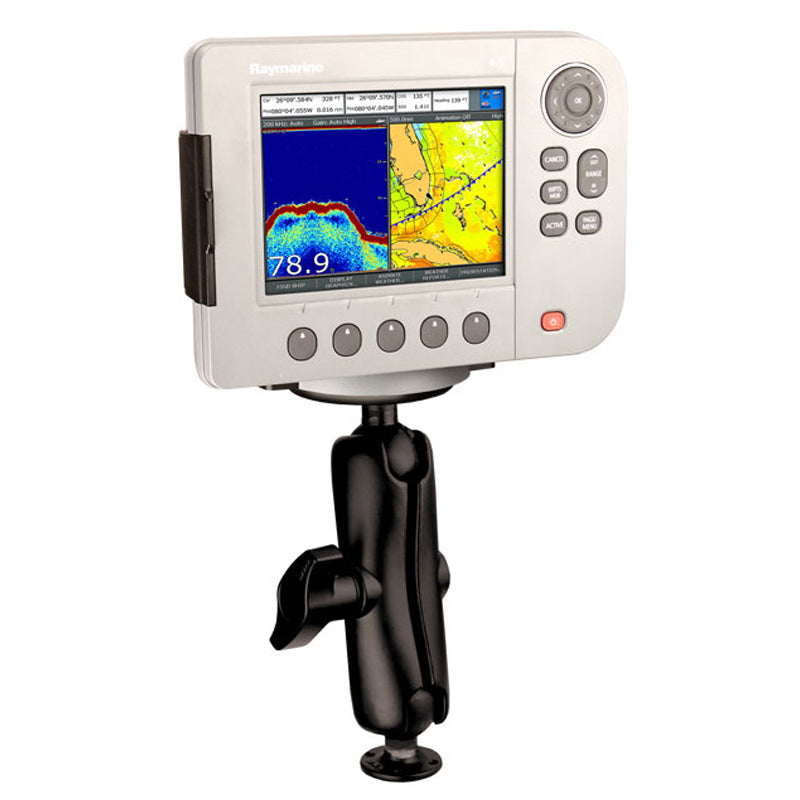

Overview	The RAM-D-101-RM1U consists of a 3.68" diameter round base with the universal AMPS hole pattern, STANDARD length double socket arm and 3.68" round base. The RAM-D-101-RM1U includes hardware that will attach Raymarine Chartplotters to the mount. Designed into the mount is a 2.25" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.

Specifications
hardware included	(4) #10-24 x 3/8" Machine Screws
product dimensions	Overall Height: 11.125"
socket to socket length	6.88"
hole pattern	See Drawing
plate size	3.68" Diameter
ball size	D Size (2.25")
weight capacity	Standard Use: 6 lbs Heavy-Duty Use: 5 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	1.12 lb
