RAM® Heavy Duty C-Clamp Base with Swivel Ratchet Arm & Ball - C Size

Part #: RAM-CC1-411D-114-PA-BGU UPC: 793442036132 Patented & Pats. Pend.

Features

Clamp secures to surfaces 0–4” thick
Swivel Ratchet Arm provides adjustable height positioning, as well as an integrated swivel functionality
Features a C size RAM® ball for compatibility with a wide range of RAM® socket arms, device holders, and mounting accessories
Non-permanent mounting solution delivers a stable, professional-grade installation without drilling
Backed by a lifetime warranty

RAM® Heavy Duty C-Clamp Base with Swivel Ratchet Arm & Ball - C Size

Product Information

Overview

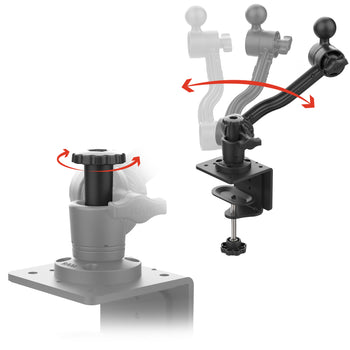

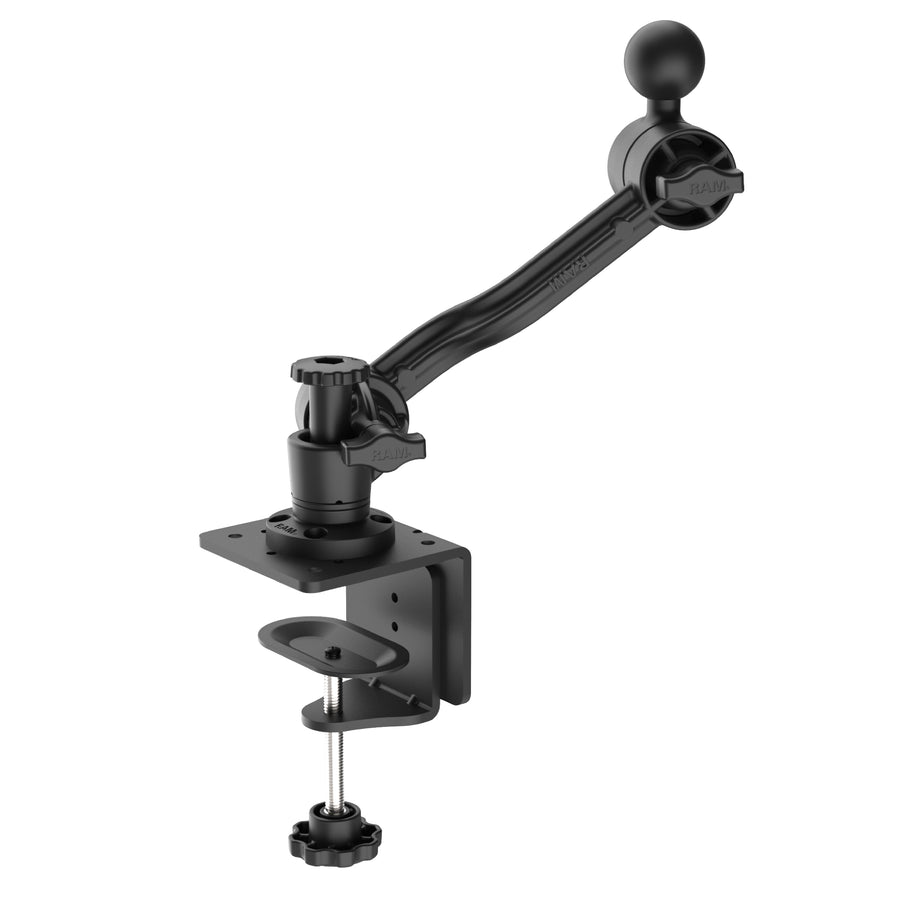

The RAM® Heavy Duty C-Clamp Base with Swivel Ratchet Arm & Ball - C Size (RAM-CC1-411D-114-PA-BGU) is a rugged, highly adjustable mounting solution designed for flexible, non-permanent device installation across a wide variety of workspaces. Ideal for desks, tables, carts, and mobile workstations, the heavy-duty clamp securely attaches to surfaces ranging from 0" to 4" thick with no minimum edge depth required. The included Swivel Ratchet Arm provides both height adjustment and rotational positioning, with knobs on either end to secure the arm at the desired height. Loosening the lower knob enables smooth swivel movement for additional positioning flexibility. Topped with a C size RAM® ball, this mount integrates seamlessly with existing RAM® components and leverages the RAM® ball and socket system for secure, customizable device placement.

Specifications
hardware included	Assembly Hardware
product dimensions	Arm + Ball Length: 12.25"
clamp range	0" - 4"
ball size	C Size (1.5")
materials	Powder coated steel High strength composite
packaging type	Poly Bag
Weight	3.08 lb

Patented & Pats. Pend.

RAM® Heavy Duty C-Clamp Base with Swivel Ratchet Arm & Ball - C Size

Name: RAM® Heavy Duty C-Clamp Base with Swivel Ratchet Arm & Ball - C Size
Brand: RAM Mounts
SKU: RAM-CC1-411D-114-PA-BGU
Price: 122.49 USD
Availability: OutOfStock

Part#: RAM-CC1-411D-114-PA-BGU

UPC: 793442036132

$122.49

Options

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
