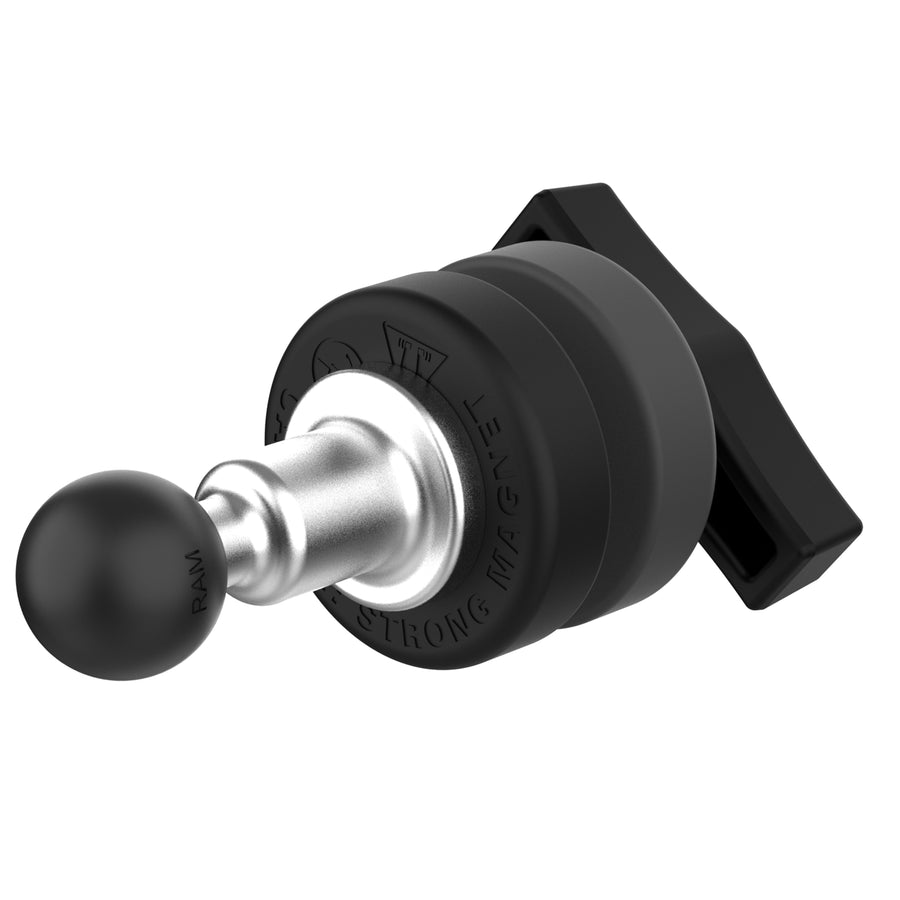

RAM® Tough-Mag™ 48MM Diameter Magnetic Ball Base

rammount.com
1-800-497-7479
sales@rammount.com

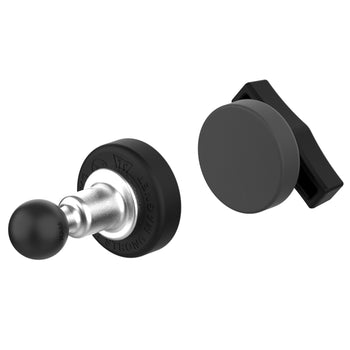

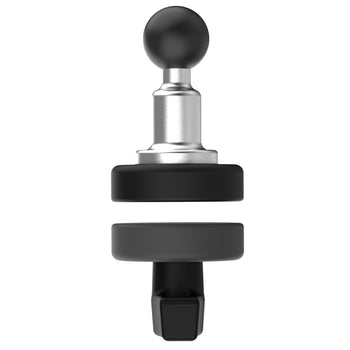

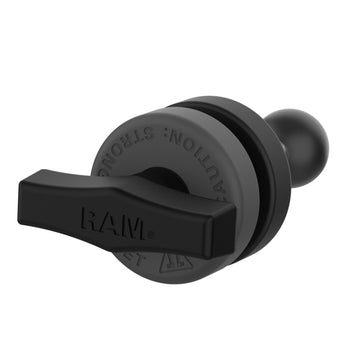

RAM® Tough-Mag™ 48MM Diameter Magnetic Ball Base
Part #: RAM-B-463-MAG48U UPC: 793442026485 Features Magnetic ball base attaches to windows up to 6mm in thickness External magnet includes handle for ease of install and removal Compatible with any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability Made of marine-grade aluminum, stainless steel components for durability and reliability in the most demanding environments Backed by a lifetime warranty

Part #: RAM-B-463-MAG48U UPC: 793442026485

Features

Magnetic ball base attaches to windows up to 6mm in thickness
External magnet includes handle for ease of install and removal
Compatible with any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of marine-grade aluminum, stainless steel components for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM® Tough-Mag™ 48MM Diameter Magnetic Ball Base

Product Information
Overview	The RAM® Tough-Mag™ 48MM Diameter Magnetic Ball Base (RAM-B-463-MAG48U) is ideal for mounting small phones or devices to flat glass surfaces in static environments, like windows. The magnetic base is rubber coated to prevent scratching the glass surface and reduce the impact of the jarring magnetic pull, it also features a handle for easy installation and removal. The ball base features an aluminum, marine-grade post.

Product Information

Overview

The RAM® Tough-Mag™ 48MM Diameter Magnetic Ball Base (RAM-B-463-MAG48U) is ideal for mounting small phones or devices to flat glass surfaces in static environments, like windows. The magnetic base is rubber coated to prevent scratching the glass surface and reduce the impact of the jarring magnetic pull, it also features a handle for easy installation and removal. The ball base features an aluminum, marine-grade post.

Specifications
ball size	B Size (1")
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.95 lb

Questions about our products? Email us for support.

RAM® Tough-Mag™ 48MM Diameter Magnetic Ball Base

Part#: RAM-B-463-MAG48U

UPC: 793442026485

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$124.49

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

Magnetic ball base attaches to windows up to 6mm in thickness
External magnet includes handle for ease of install and removal
Compatible with any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of marine-grade aluminum, stainless steel components for durability and reliability in the most demanding environments
Backed by a lifetime warranty
