RAM® Tough-Wedge™ Mount with Round Plate & Expansion Pouch

Part#: RAM-B-407-C-202-PUMPU
UPC: 793442950117

Kit Components

Previous Slide Next Slide
$140.49

Overview

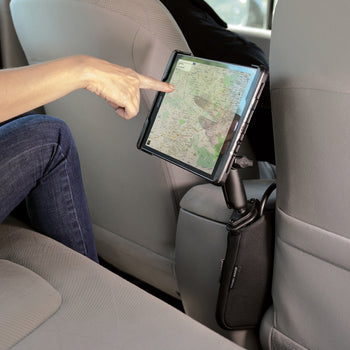

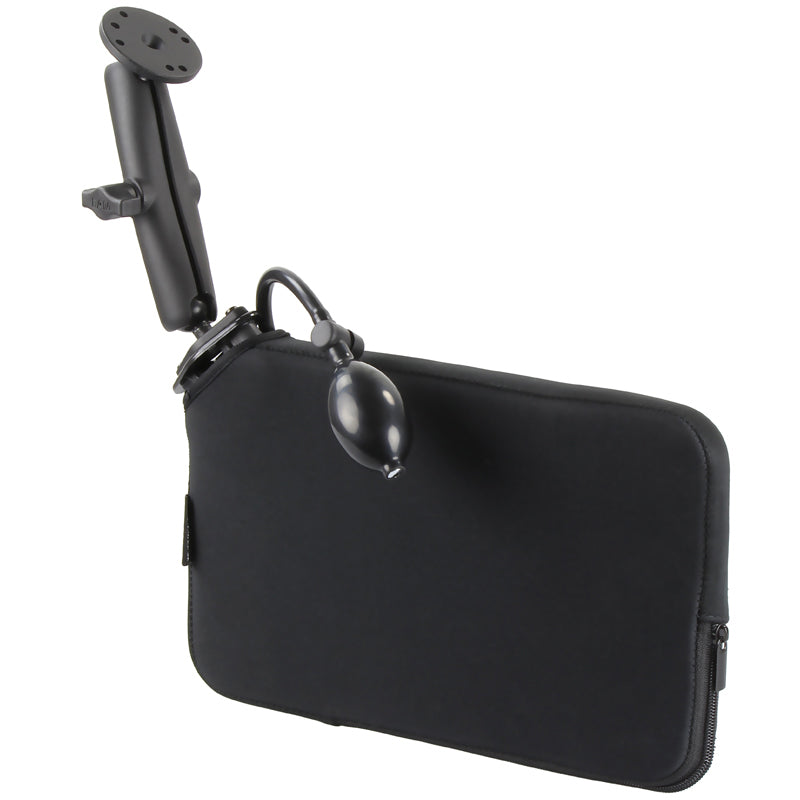

The RAM-B-407-C-202-PUMPU consists of the Tough-Wedge™ 1" ball diamond base, long double socket arm and round base. The Tough-Wedge™ is a mount that fits in the gap between the vehicle seat and center console or potentially a center seat. This allows for easy access and operation of a mobile device. The Tough-Wedge™ can also be used for back-seat applications by inserted into the pockets located on the back of the front seats. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. The long length double socket arm measures 6" and will connect to all RAM cradles/adapters with a 1" ball. The 2.5" round base contains the universal AMPs hole pattern. Included in this kit is an innovative Expansion Pouch accessory for the RAM Tough-Wedge™. This optional accessory is designed to increase the stability of your mount by creating a more secure fit of the wedge mount into the gap between seats. The Expansion Pouch fits inside the Tough-Wedge™ sleeve and is then inflated with the hand pump to the desired level, ensuring your device stays firmly in place.

hardware included:

Assembly Hardware

wedge dimensions:

Length: 13.25"
Height: 8.25"
Thickness: 1"

socket to socket length:

5.31"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

2.39 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

Tough Wedge Assembly Guide

Documents

On Road Catalog

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
RAM® Tough-Wedge™ Mount with Round Plate & Expansion Pouch
$140.49

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size — this product 1" ball
  • C Size 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B — this product1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
