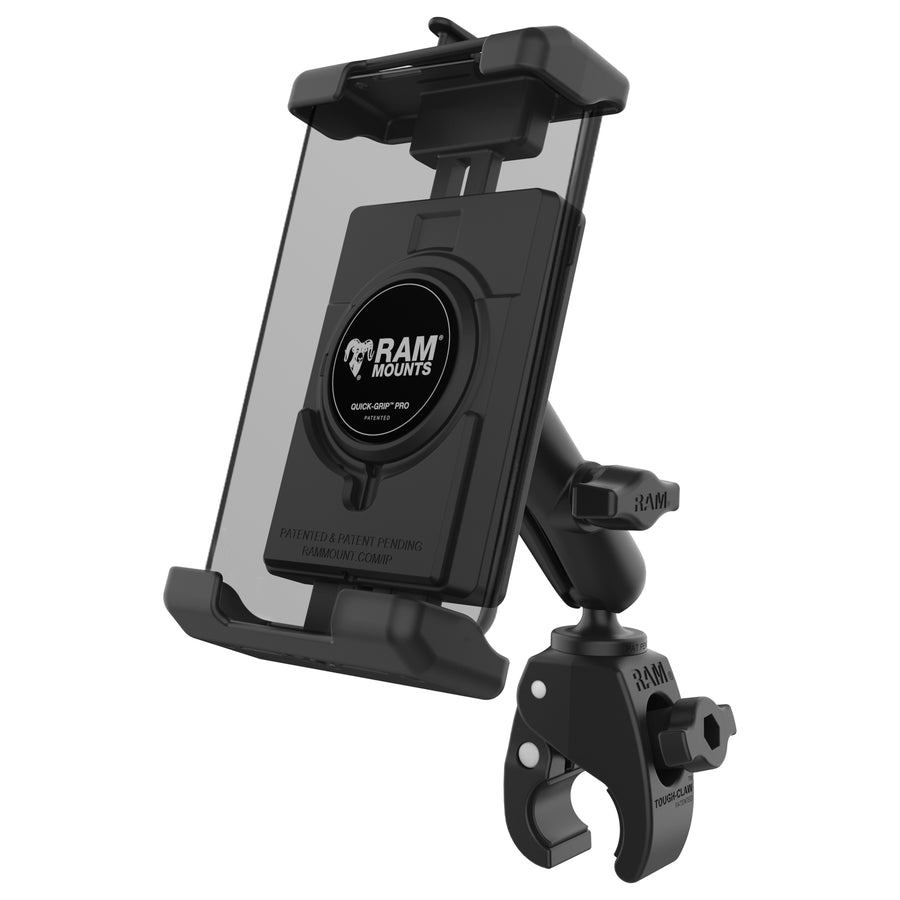

RAM® Quick-Grip™ Pro XL Phone Mount with Small Tough-Claw™ Base - Medium

Part #: RAM-B-400-PD7U UPC: 793442034152 Patented & Pats. Pend.

Features

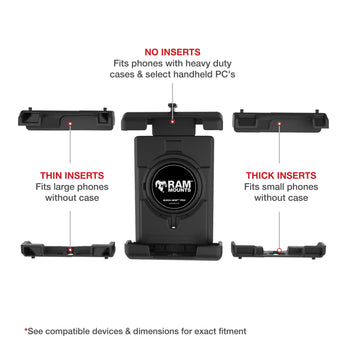

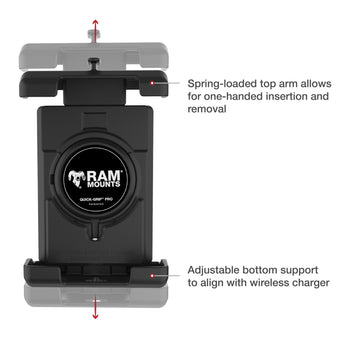

Spring-loaded holder provides a secure hold for phones and handheld devices; easily insert and remove your phone with one hand

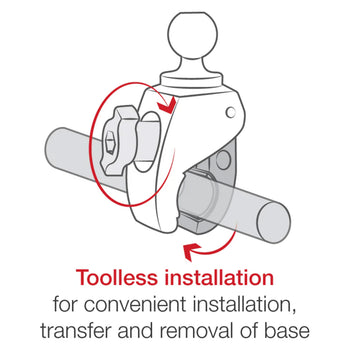

Small Tough-Claw™ base accommodates round, square, and odd-shaped rails and bars from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface

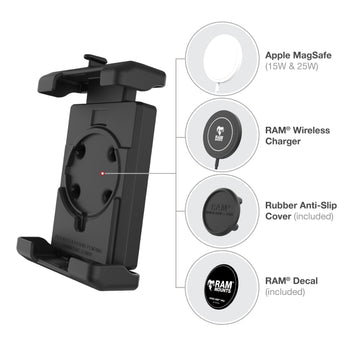

Center cavity compatible with RAM® Qi2 Wireless Charger and Apple MagSafe puck; non-slip cover and puck adhesive included
Comes with optional device tether for open cockpit environments
Backed by a lifetime warranty

RAM® Quick-Grip™ Pro XL Phone Mount with Small Tough-Claw™ Base - Medium

Product Information

Overview

The RAM® Quick-Grip™ Pro XL Phone Mount with Small Tough-Claw™ Base - Medium (RAM-B-400-PD7U) is a kit that secures quickly to rails and features the next evolution in the RAM® Quick-Grip™ phone holder series—re-designed to be the most rugged universal phone holder that fits a wide range of phones and handheld devices. It features an integrated cavity compatible with the RAM® Qi2 Wireless Charger or the Apple MagSafe puck, allowing you to turn the phone holder into a wireless charging solution. Not interested in charging? No problem! The included anti-slip cover ensures a flush fit when nothing is installed. The RAM® Quick-Grip™ Pro XL features a spring-loaded design that allows easy one-handed insertion and removal of your device. The RAM® Tough-Claw™ is the perfect mounting base for toolless installation and removal on round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter. The RAM® ball and socket system allows for articulation at both ends of the double socket arm creating almost infinite adjustment and perfect viewing angles. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

Specifications
hardware included	Assembly Hardware
holder dimensions	Height Range: 5.375" - 7" Width Range: 2.75" - 3.5" Max Depth: .75"
clamp range	.625" - 1.14" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
power specifications	Operating Frequency: 360KHZ Stand-by Consumption ~ 0.008A / 8mA @5VDC 80% Wireless Power Transfer Efficiency or Greater Supports USB 2.0 BC1.2 Power Supply (5V) Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
input voltage	USB 5V @ 3A QC2.0 9V @ 2.22A USB PD 2.0 5-15V @ 2A
power output	BPP - 5W EPP - 7.5W MPP - 15W
output connector	USB Type-C Male with USB-A Adapter
output cable length	1 Meter
operating temperature	0°C to +40°C
storage temperature	-20°C to +80°C
regulatory	Over Current Protection Short circuit Protection Over Temperature Protection RoHS Compliance WEEE Compliance
certifications	IP67 SAE J1455 FCC Certification CE Certification E-Mark Certification RCM Certification
Weight	1.2 lb

Patented & Pats. Pend.

RAM® Quick-Grip™ Pro XL Phone Mount with Small Tough-Claw™ Base - Medium

Name: RAM® Quick-Grip™ Pro XL Phone Mount with Small Tough-Claw™ Base - Medium
Brand: RAM Mounts
SKU: RAM-B-400-PD7U
Price: 165.99 USD
Availability: InStock

Part#: RAM-B-400-PD7U

UPC: 793442034152

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$165.99

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

RAM® Qi2 15W Wireless Charger

$54.99

Overview

Features

Spring-loaded holder provides a secure hold for phones and handheld devices; easily insert and remove your phone with one hand
Small Tough-Claw™ base accommodates round, square, and odd-shaped rails and bars from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
Center cavity compatible with RAM® Qi2 Wireless Charger and Apple MagSafe puck; non-slip cover and puck adhesive included
Comes with optional device tether for open cockpit environments
Backed by a lifetime warranty

hardware included:

Assembly Hardware

holder dimensions:

Height Range: 5.375" - 7"
Width Range: 2.75" - 3.5"
Max Depth: .75"

clamp range:

.625" - 1.14" diameter

socket to socket length:

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

power specifications:

Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
80% Wireless Power Transfer Efficiency or Greater
Supports USB 2.0 BC1.2 Power Supply (5V)
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0

input voltage:

USB 5V @ 3A
QC2.0 9V @ 2.22A
USB PD 2.0 5-15V @ 2A

power output:

BPP - 5W
EPP - 7.5W
MPP - 15W

output connector:

USB Type-C Male with USB-A Adapter

output cable length:

1 Meter

operating temperature:

0°C to +40°C

storage temperature:

-20°C to +80°C

regulatory:

Over Current Protection
Short circuit Protection
Over Temperature Protection
RoHS Compliance
WEEE Compliance

certifications:

IP67
SAE J1455
FCC Certification
CE Certification
E-Mark Certification
RCM Certification

Weight:

1.2 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

RAM® Quick-Grip™ Pro XL Assembly Instructions

Documents

Buyer Guide: RAM® Quick-Grip™ Pro

Knowledge Base: Phone Mounting

RAM® Quick-Grip™ Pro XL Phone Mount with Small Tough-Claw™ Base - Medium

$165.99

Add-on & Accessories

Accessories

RAP-B-351-4RU:RAP-B-351-4RU_1:RAM Rotating Ball Adapter for Phone and Handheld Holders - B Size

RAM® Rotating Ball Adapter for Phone and Handheld Holders - B Size RAP-B-351-4RU $24.99

RAP-462NPT:RAP-462NPT_1:RAM Vibe-Safe™ with NPT Adapter for 2-Hole Holders

RAM® Vibe-Safe™ with NPT Adapter for 2-Hole Holders RAP-462NPT $43.99

RAM-B-273U:RAM-B-273U_1:RAM Add-A-Ball™ Accessory Ball for B Size Socket Arms

RAM® Add-A-Ball™ Accessory Ball for B Size Socket Arms RAM-B-273U $12.49

RAM-B-230U:RAM-B-230U_1:RAM Double Ball Adapter - B Size

RAM® Double Ball Adapter - B Size RAM-B-230U $19.49

Features

RAM® Quick-Grip™ Pro XL Phone Mount with Small Tough-Claw™ Base - Medium

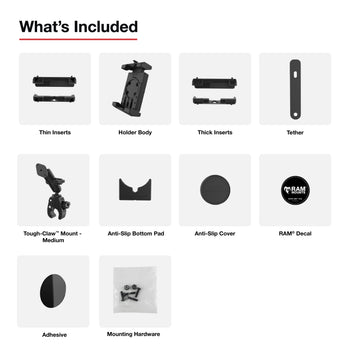

Kit Components
