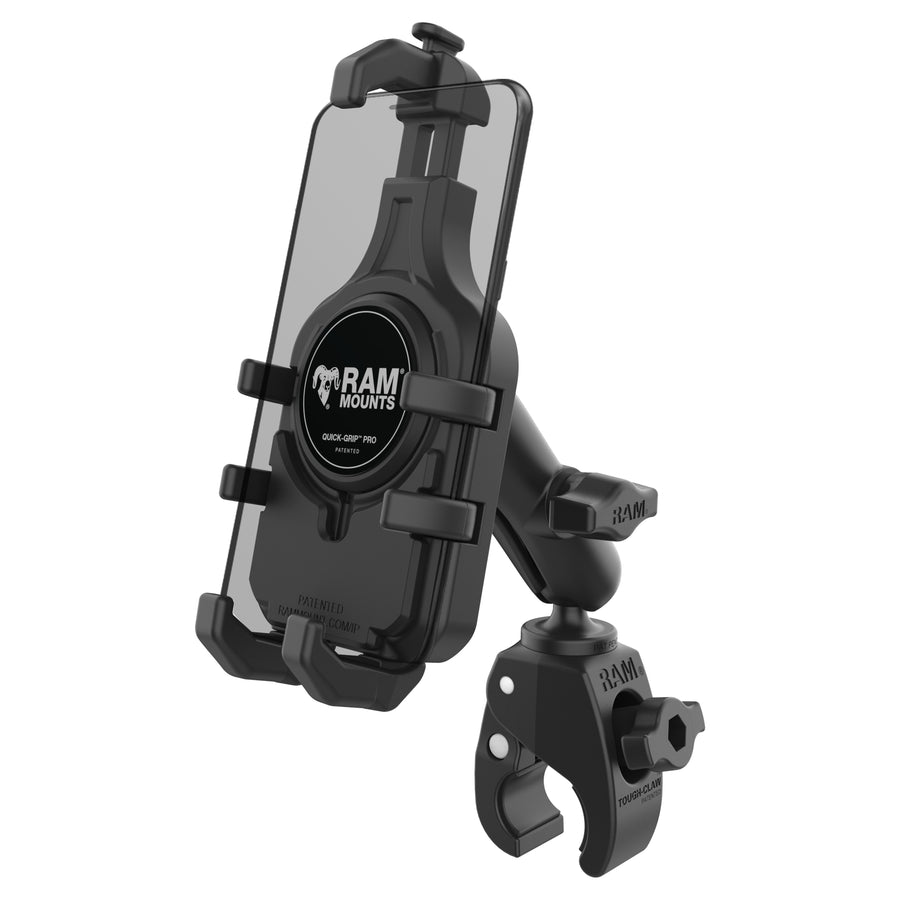

RAM® Quick-Grip™ Pro Phone Mount with Small Tough-Claw™ Base - Medium

Part #: RAM-B-400-PD5U UPC: 793442034145 Patented & Pats. Pend.

Features

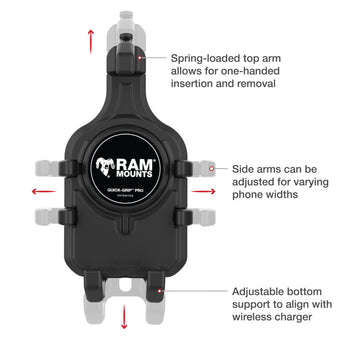

Spring-loaded holder features adjustable side supports overmolded with a soft rubber that provide a secure hold for a variety of phones; easily insert and remove your phone with one hand

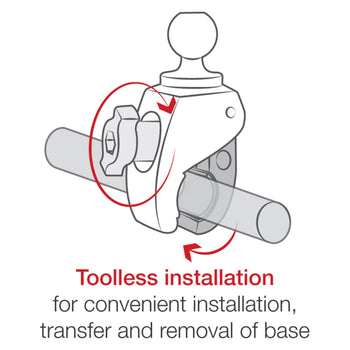

Small Tough-Claw™ base accommodates round, square, and odd-shaped rails and bars from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface

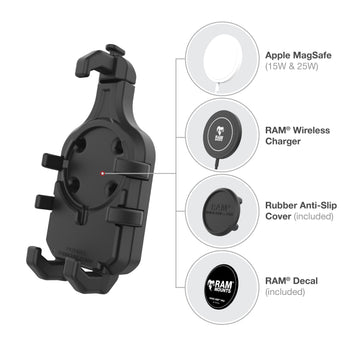

Center cavity compatible with RAM® Qi2 Wireless Charger and Apple MagSafe puck; non-slip cover and puck adhesive included
Comes with optional device tether for open cockpit environments
Backed by a lifetime warranty

RAM® Quick-Grip™ Pro Phone Mount with Small Tough-Claw™ Base - Medium

Product Information

Overview

The RAM® Quick-Grip™ Pro Phone Mount with Small Tough-Claw™ Base - Medium (RAM-B-400-PD5U) is a kit that secures quickly to rails and features the next evolution in the RAM® Quick-Grip™ phone holder series. The phone holder is re-designed with a new, sleek look and integrated rubber side arms to provide a secure, no-slip hold on your phone. It features an integrated cavity compatible with the RAM® Qi2 Wireless Charger or the Apple MagSafe puck, allowing you to turn the phone holder into a wireless charging solution. Not interested in charging? No problem! The included anti-slip cover ensures a flush fit when nothing is installed. The RAM® Quick-Grip™ Pro features a spring-loaded design that allows easy one-handed insertion and removal of your phone. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons. The RAM® Tough-Claw™ is the perfect mounting base for toolless installation and removal on round, square, and odd-shaped rails and bars, ranging from .625" to 1.14" in outer diameter. The RAM® ball and socket system allows for articulation at both ends of the double socket arm creating almost infinite adjustment and perfect viewing angles. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

Specifications

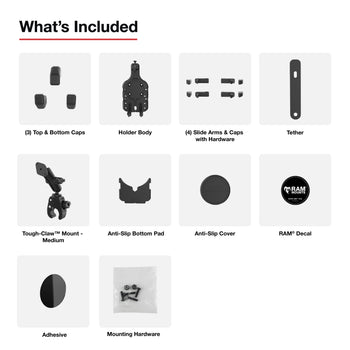

hardware included	Assembly Hardware
holder dimensions	Height Range: 5.5" - 7.75" Width Range: 2.625" - 3.75" Max Depth: .67"
clamp range	.625" - 1.14" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.23 lb
Additional Information	Top hook may block front facing camera and facial recognition on select phones.

Patented & Pats. Pend.

RAM® Quick-Grip™ Pro Phone Mount with Small Tough-Claw™ Base - Medium

Name: RAM® Quick-Grip™ Pro Phone Mount with Small Tough-Claw™ Base - Medium
Brand: RAM Mounts
SKU: RAM-B-400-PD5U
Price: 153.49 USD
Availability: InStock

Part#: RAM-B-400-PD5U

UPC: 793442034145

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$153.49

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

RAM® Qi2 15W Wireless Charger

$54.99

Overview

Features

Spring-loaded holder features adjustable side supports overmolded with a soft rubber that provide a secure hold for a variety of phones; easily insert and remove your phone with one hand
Small Tough-Claw™ base accommodates round, square, and odd-shaped rails and bars from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
Center cavity compatible with RAM® Qi2 Wireless Charger and Apple MagSafe puck; non-slip cover and puck adhesive included
Comes with optional device tether for open cockpit environments
Backed by a lifetime warranty

hardware included:

Assembly Hardware

holder dimensions:

Height Range: 5.5" - 7.75"
Width Range: 2.625" - 3.75"
Max Depth: .67"

clamp range:

.625" - 1.14" diameter

socket to socket length:

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

1.23 lb

Additional Information:

Top hook may block front facing camera and facial recognition on select phones.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
