B Size
Long Arm
RAM® X-Grip® with RAM® Tough-Claw™ Small Clamp & RAM® Roto-View™
B Size
Long Arm
$189.99
Overview

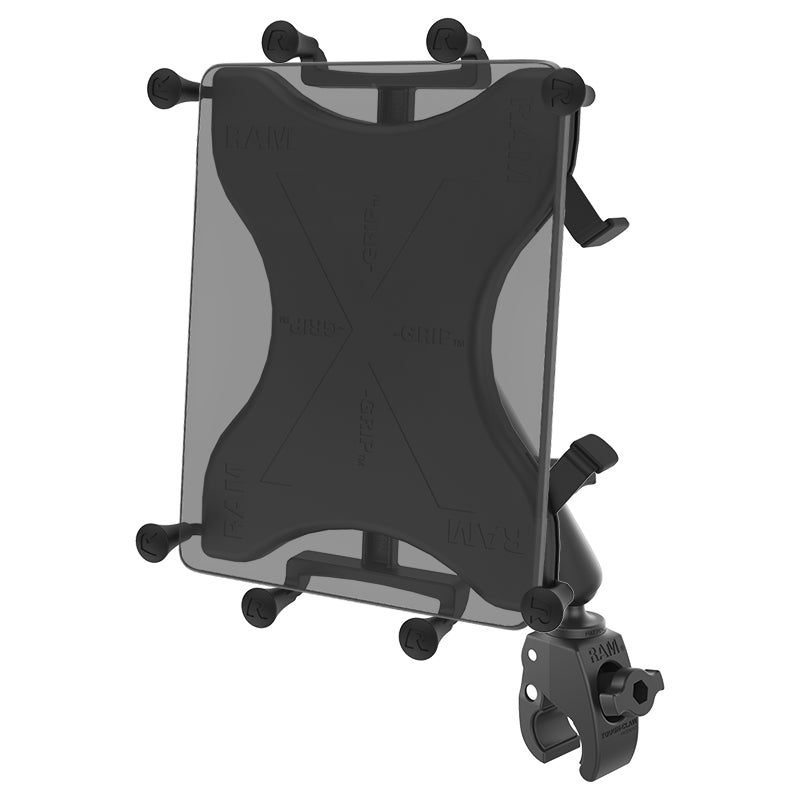

The RAM-B-400-C-UN9-ROTO1U consists of the Tough-Claw™ rail clamp base, medium length double socket arm and universal spring loaded X-Grip® cradle for tablets. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your tablet. Included are easy access grip knobs for quick insertion and release of your handheld device. The Tough-Claw™ rail clamp base is the perfect mounting base for quick and easy toolless installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 0.625" - 1.14" outer diameter. Perfectly suited for mounting on the yoke of an aircraft, the handlebars and seat posts of bicycles, kayak rails, roll bars and much more, the RAM® Tough-Claw™ will soon become another essential RAM® component in your collection of mounting options. The RAM-B-400-C-UN9-ROTO1U comes equipped with Roto-View technology that lets you rotate your tablet up to 90 degrees for easy viewing in either portrait or landscape mode. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Features

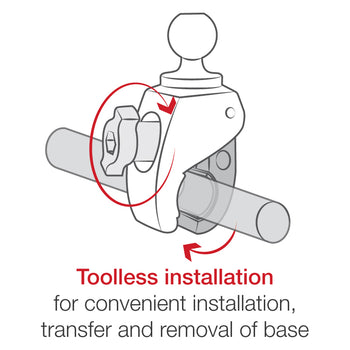

- Small version of the RAM® Tough-Claw™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface

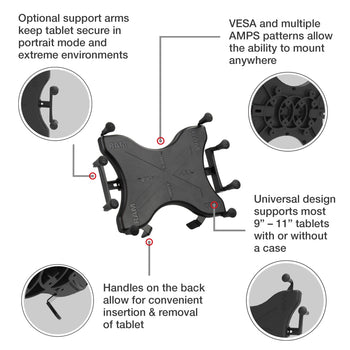

- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 9"-11" tablets
- RAM® Roto-View™ allows for viewing tablet in portrait or landscape mode
- Backed by a lifetime warranty
hardware included:
Assembly Hardware

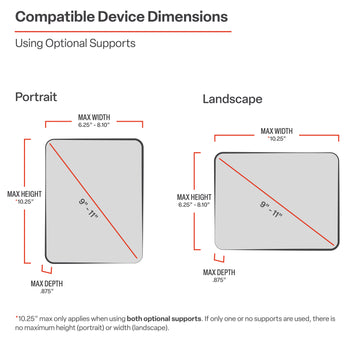

holder dimensions:
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
clamp range:
.625" - 1.14" diameter
socket to socket length:
5.31"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
2.28 lb
Instructions
Documents
Questions & Answers
Have a Question?
-
Will this holder not work if the additional side supports do not fit my tablet?

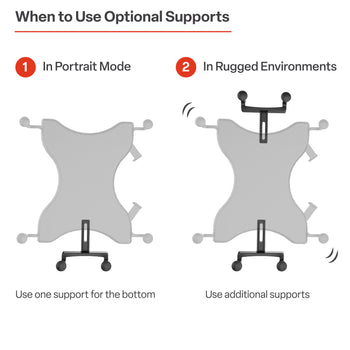

In most cases this should not be an issue. The additional side supports are optional to keep your tablet secure in extreme, high vibration environments; or if you are supporting the tablet in portrait mode, it is recommended to install one of the supports to hold the bottom of the tablet.
-
How is it that this holder fits 9" - 10" tablets, yet it can also hold the iPad Pro 11"?
The 11 in iPad Pro 11 refers to the diagonal dimension of the screen display. Overall dimensions of this tablet are 9.74" x 7.02" x .23", which fits the dimension ranges of this holder. For all universal holders including the RAM® X-Grip®, it is a matter of cross referencing overall dimensions (L x W x D) when determining compatibility. Case dimensions will need to be taken into account if your tablet is in a case.
-
This part says it has a maximum height of 10.25". Is it possible to use this cradle with a tablet that is taller than that?
Yes, the maximum height that is listed only applies if you are using the optional side support arms. If you leave at least one of those arms off of the mount it will be able to support taller tablets
