B Size
Long Arm

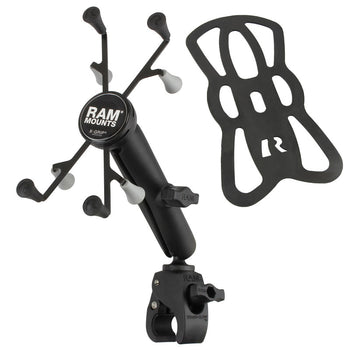

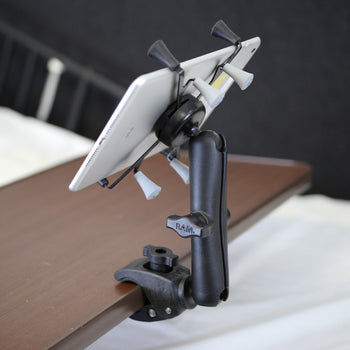

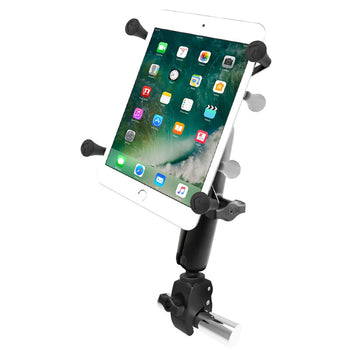

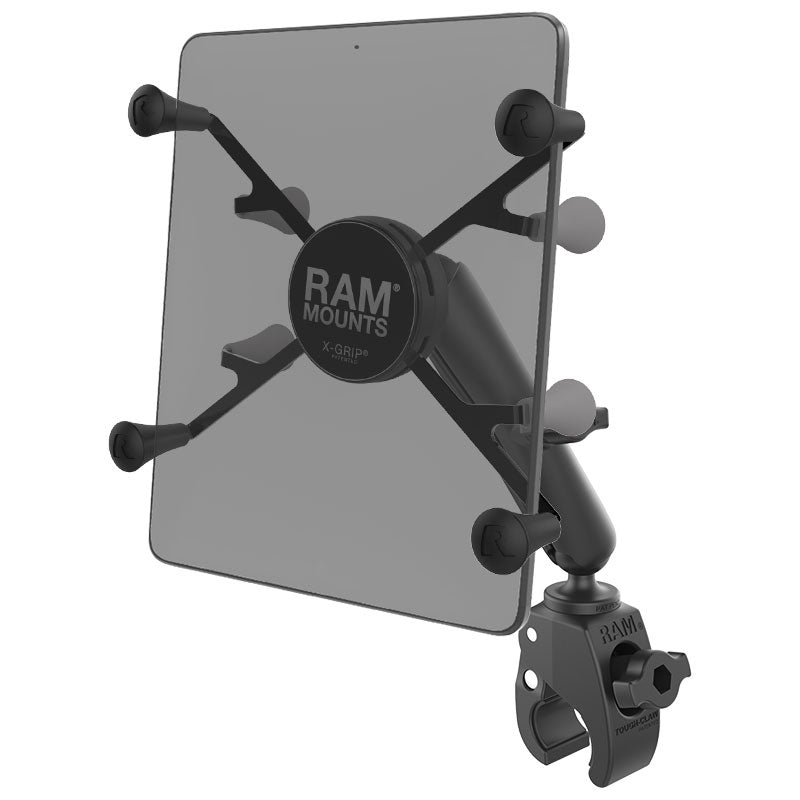

RAM® X-Grip® with Tough-Claw™ Mount for 7"-8" Tablets - B Size Long
B Size
Long Arm
$112.49
Overview

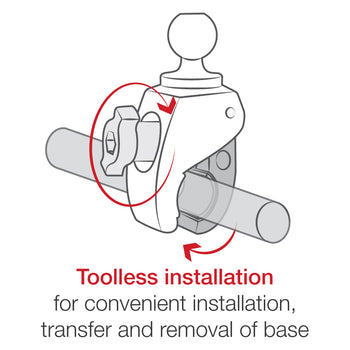

The RAM-B-400-C-UN8U consists of the Tough-Claw™ rail clamp base, LONG length double socket arm and universal spring loaded X-Grip® cradle for 7"-8" tablets. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your tablet. Included are easy access grip knobs for quick insertion and release of your handheld device. The Tough-Claw™ rail clamp base is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 0.625" - 1.14" outer diameter. Perfectly suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails, roll bars and much more, the RAM® Tough-Claw™ will soon become another essential RAM® component in your collection of mounting options. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
hardware included:
(1) Optional Tether
(1) Glue Tube for Rubber Caps
holder dimensions:
Width Range: 2.5" - 5.75"
Depth Range: .875" max
clamp range:
.625" - 1.14" diameter
socket to socket length:
5.31"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
1.15 lb
Instructions
Documents
Questions & Answers
Have a Question?
-
Will this work with an Apple iPad Mini A17? https://www.cdw.com/product/apple-ipad-mini-wi-fi-tablet-128-gb-8.3/8114558?pfm=srh
Yes, this will hold your iPad mini A17 nicley.
-
I noticed my tablet can be rotated back and forth about 15 degrees when it is in the X-Grip. Is that normal?
That type of movement is totally normal for the X-Grip. When being used for less rugged applications the small amount of movement allowed is not an issue, but sometimes when traveling at higher speeds or in bumpy environments it can be. If that is causing problems in your application, it is best to use the safety tether which will prevent that type of movement by creating tension between the phone and backplate.
