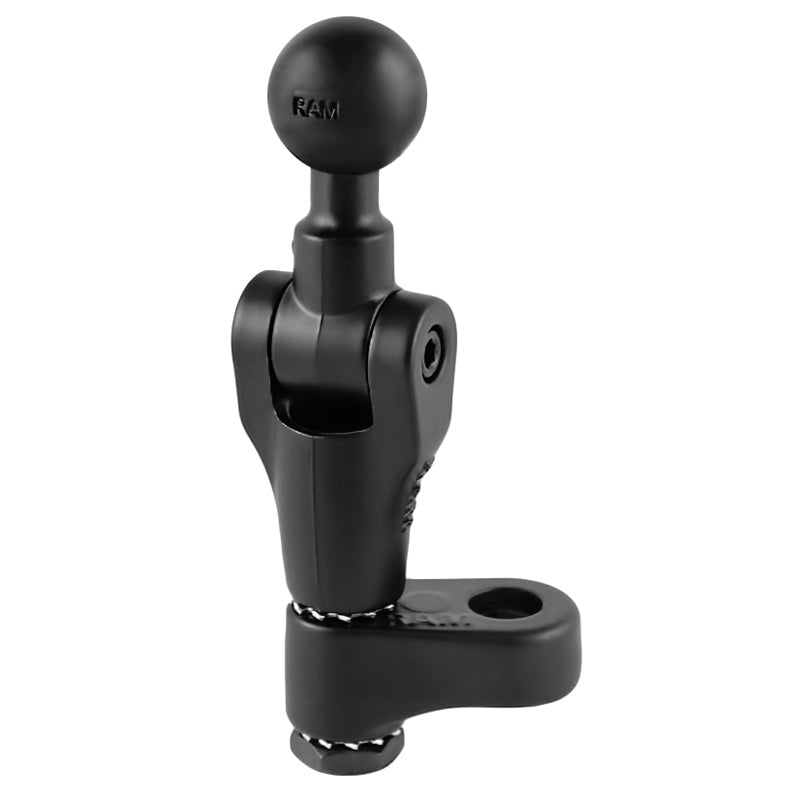

RAM® Twist-N-Tilt™ Motorcycle Mirror Ball Base

rammount.com
1-800-497-7479
sales@rammount.com

RAM^® Twist-N-Tilt^™ Motorcycle Mirror Ball Base
Part #: RAM-B-360U UPC: 793442920882 Patented

Product Information
Overview	RAM offers a wide variety of motorcycle mounts. A great new addition to this already extensive product line is our new Twist and Tilt^™ base. Made of die cast marine grade aluminum, durability won't be a concern. The patented rubber ball dampens shock and vibration helping to maintain the performance of the mounted device. Simple to use and install, this great little product is compatible with numerous 1” ball mount systems. Designed to be compact and discrete, the Twist and Turn^™ won't take up a lot of space but will provide a world of mounting possibilities.

Product Information

Overview

RAM offers a wide variety of motorcycle mounts. A great new addition to this already extensive product line is our new Twist and Tilt^™ base. Made of die cast marine grade aluminum, durability won't be a concern. The patented rubber ball dampens shock and vibration helping to maintain the performance of the mounted device. Simple to use and install, this great little product is compatible with numerous 1” ball mount systems. Designed to be compact and discrete, the Twist and Turn^™ won't take up a lot of space but will provide a world of mounting possibilities.

Specifications
hardware included	(1) M10-1.25 x 40mm Socket Head Cap Screw (1) M8-1.25 x 40mm Socket Head Cap Screw (2) M10-1.25 Hex Nuts (2) M8-1.25 Hex Nuts (1) M10-1.25 x 20mm Socket Head Cap Screw (1) M8-1.25 x 20mm Socket Head Cap Screw (3) M10 Tooth Lock Washers
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.49 lb
Additional Information	It is not suggested, nor is it recommended that users remove any existing stainless steel screw and replace it with the Twist and Tilt RAM Mount base. An example of this would be the handlebar yoke clamp bracket or other vital attachments which hold essential structural components together.

RAM<sup>®</sup> Twist-N-Tilt<sup>™</sup> Motorcycle Mirror Ball Base

Questions about our products? Email us for support.

Patented

RAM^® Twist-N-Tilt^™ Motorcycle Mirror Ball Base

Part#: RAM-B-360U

UPC: 793442920882

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$29.49

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

hardware included:

(1) M10-1.25 x 40mm Socket Head Cap Screw
(1) M8-1.25 x 40mm Socket Head Cap Screw
(2) M10-1.25 Hex Nuts
(2) M8-1.25 Hex Nuts
(1) M10-1.25 x 20mm Socket Head Cap Screw
(1) M8-1.25 x 20mm Socket Head Cap Screw
(3) M10 Tooth Lock Washers

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.49 lb

Additional Information:

It is not suggested, nor is it recommended that users remove any existing stainless steel screw and replace it with the Twist and Tilt RAM Mount base. An example of this would be the handlebar yoke clamp bracket or other vital attachments which hold essential structural components together.

Print

Instructions

Twist and Tilt Base Assembly Instructions

Documents

On Road Catalog

Questions & Answers

Have a Question?

Ask a Question

Does this product work if i've replaced my stock mirror with the Ram mirror? In other words, can this product be installed with the Ram motorcycle mirror?

Yes, it can be installed with the RAM motorcycle mirror.
Will this work on a 2024 Kawasaki Ninja 500?

This will work if your bike uses M10-1.25 or M8-1.25 threaded holes on the handle bars.
