RAM® Motorcycle Fork Stem Wedge Ball Base - 12-32mm Holes

Part #: RAM-B-342WU UPC: 793442033414

Features

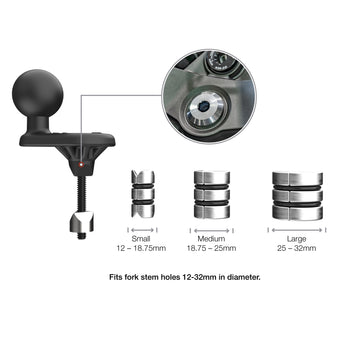

Designed to fit into the cylindrical bore wall of fork stems 12-32mm in diameter; includes three different sized wellnut bases for further customization
Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM® Motorcycle Fork Stem Wedge Ball Base - 12-32mm Holes

Product Information

Overview

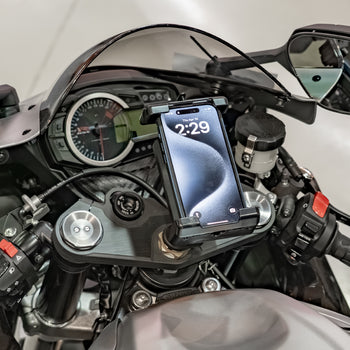

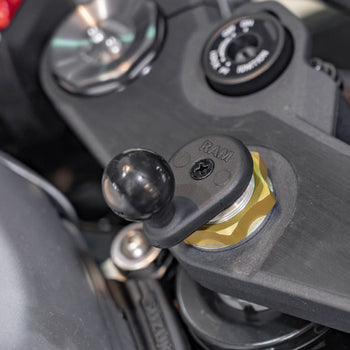

The RAM® Motorcycle Fork Stem Wedge Ball Base - 12-32mm Holes (RAM-B-342W-3U) is a low-profile mounting base designed to attach directly to the cylindrical bore wall of motorcycle fork stems that measure 12mm to 32mm in diameter, keeping your device front and center. Featuring a B size 1" rubber ball, this base provides a secure mounting point for a wide range of RAM® double socket arms and device holders, enabling near-infinite adjustability for optimal viewing angles. The rubber ball design dampens vibration and shock, helping to protect your device while riding on rough terrain and at high speeds. The three included wellnut bases allow for use in a variety of different motorcycle fork stems. Built from marine-grade aluminum with a powder-coated finish, this base is engineered for durability and corrosion resistance in outdoor environments. Backed by a lifetime warranty, this base ensures reliable performance wherever the road takes you.

Specifications

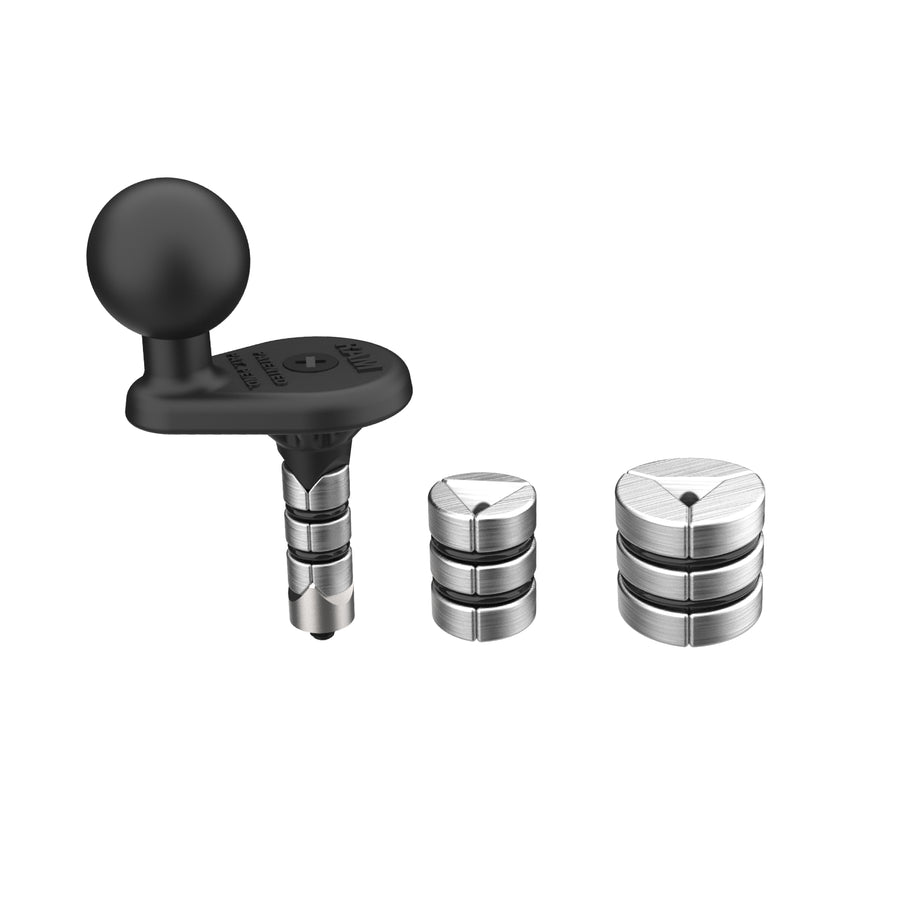

hardware included	(1) Small Wedge Assembly (1) Medium Wedge Assembly (1) Large Wedge Assembly (1) #10-24 x 2" Screw (1) #10-24 Wedge Nut
wedge dimensions	12-32mm
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.5 lb

Video Thumbnail — YouTube video thumbnail for 7widJLb84Fw

RAM® Motorcycle Fork Stem Wedge Ball Base - 12-32mm Holes

Name: RAM® Motorcycle Fork Stem Wedge Ball Base - 12-32mm Holes
Brand: RAM Mounts
SKU: RAM-B-342WU
Price: 49.99 USD
Availability: InStock

Part#: RAM-B-342WU

UPC: 793442033414

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$49.99

Options

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

RAM® Double Socket Arm - B Size Short

$18.49

Overview

Features

Designed to fit into the cylindrical bore wall of fork stems 12-32mm in diameter; includes three different sized wellnut bases for further customization
Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty
