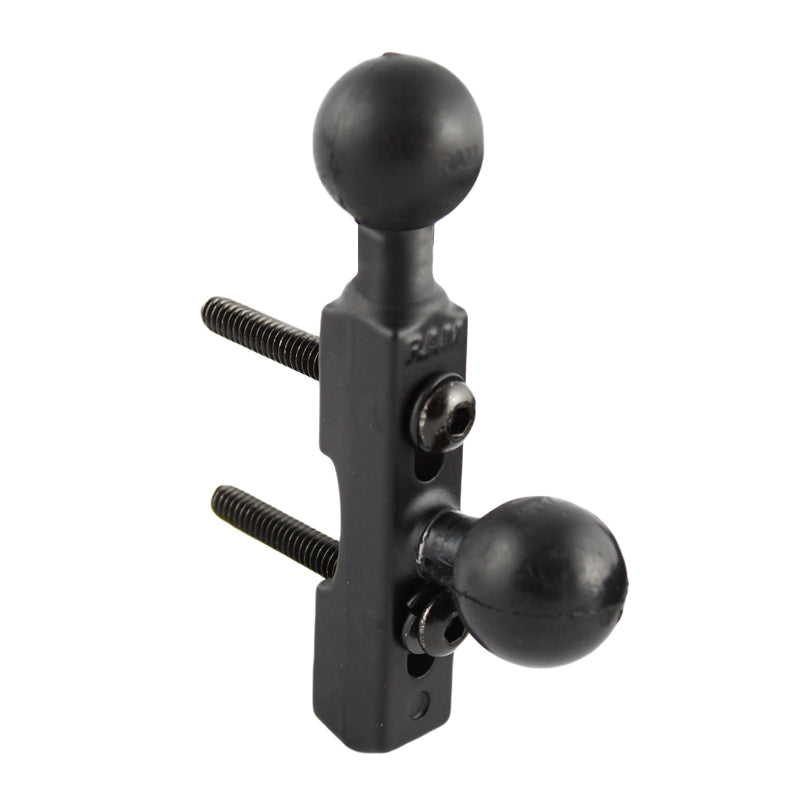

RAM® Motorcycle Brake/Clutch Reservoir Double Ball Base

Part #: RAM-B-309-6U UPC: 793442130960

Features

Brake/clutch reservoir base for motorcycles with stainless steel hardware
Included B size 1" RAM® rubber balls allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Backed by a lifetime warranty

RAM® Motorcycle Brake/Clutch Reservoir Double Ball Base

Product Information

Overview

Attach the RAM® double ball base to the brake/clutch handlebar control bracket and the mounting possibilities become endless. Rubber ball and socket technology allows for near-infinite adjustability and ideal viewing angles, while providing shock and vibration damping to help extend the life of your favorite devices. The brake/clutch double ball base fits the control clamps on your motorcycle with the included 40mm x 6mm stainless steel hardware. The two B size 1" rubber balls are permanently connected.

Specifications
hardware included	(2) M6 x 55mm Hex Bolts (2) #1/4-20 x 2" Hex Bolts (2) 1/4"-20 x 2.5" Hex Bolts (2) 1/2" Spacers (2) 1/4" Split Lock Washers
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.36 lb

RAM® Motorcycle Brake/Clutch Reservoir Double Ball Base

Name: RAM® Motorcycle Brake/Clutch Reservoir Double Ball Base
Brand: RAM Mounts
SKU: RAM-B-309-6U
Price: 29.99 USD
Availability: InStock

Part#: RAM-B-309-6U

UPC: 793442130960

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$29.99

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

Brake/clutch reservoir base for motorcycles with stainless steel hardware
Included B size 1" RAM® rubber balls allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Backed by a lifetime warranty

hardware included:

(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.36 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

RAM Brake/Clutch Reservoir Assembly Instructions 309-1 Series

Documents

Knowledge Base: Ball Sizes

QUESTIONS & ANSWERS

Have a Question?

Ask a Question

Do you have this same thing with double .625” balls instead of 1” ??

No, the only version of the RAM-B-309-6U RAM offers comes with the 1" diameter B size balls.
Does this fit the harley davidson controls

As long as the threaded ports at the mounting point are between 1" and 1.5" then the RAM-B-309-6U will be a good option for you. Because of the variance in motorcycles and popularity of after market mods, RAM isn't able to confirm that this product will be compatible with every Harley Davidson.
