RAM® Motorcycle Brake/Clutch Reservoir Base with Add-On Ball
Overview

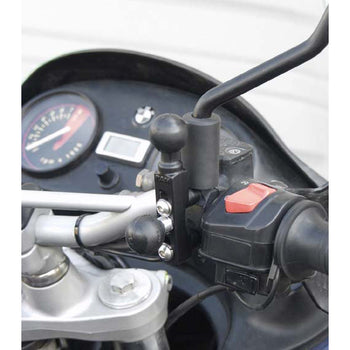

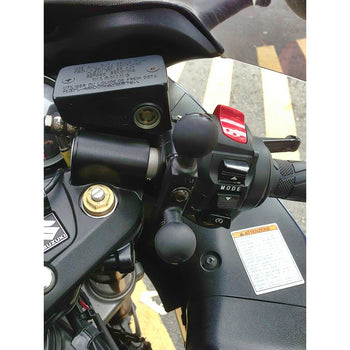

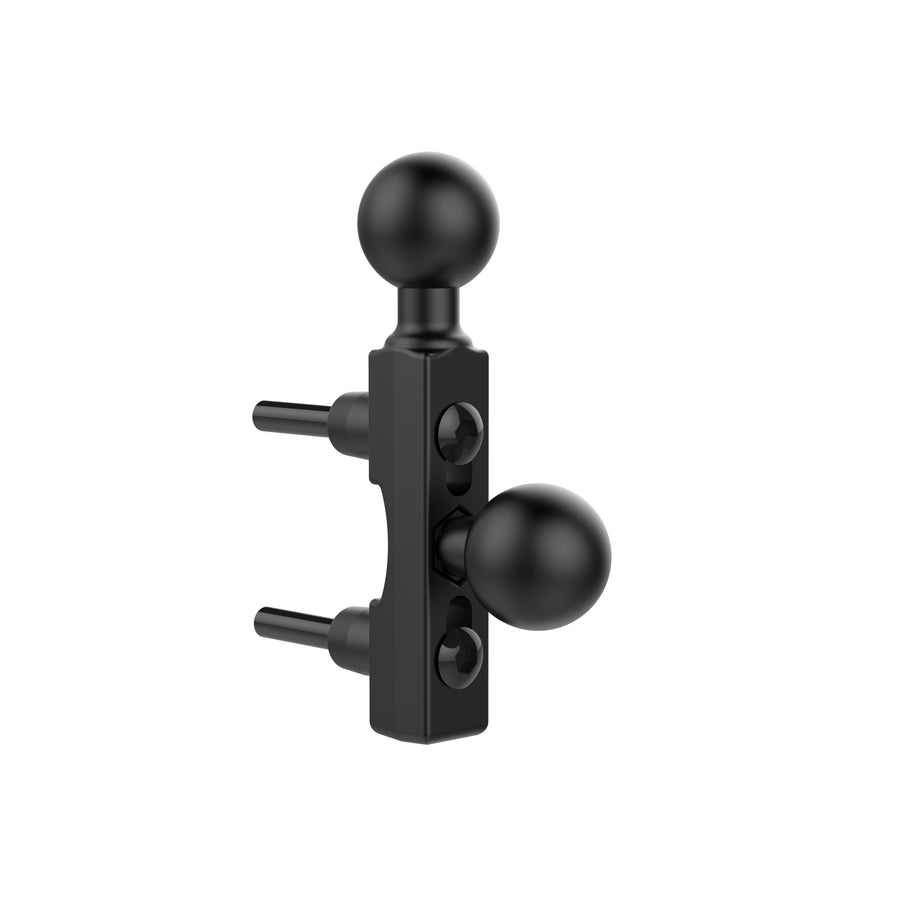

The RAM-B-309-2U connects to your handlebar clutch/brake clamp, left or right side, and holds two 1" diameter mounting ball. The ball that is connected between the hole centers is removable. The base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit. To see if the RAM-B-309-2 base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".
hardware included:
Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
0.35 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
Instructions
Documents
QUESTIONS & ANSWERS
Have a Question?
-
I need just the removable ball. what is the part number?
The Add-A-Ball accessory with this part is RAM-B-309-3U
-
Do you have a mount that will fit a motorcycle that doesn't have a brake on one side to screw into?
For handlebar mounts, we suggest the RAP-B-404U.
-
Does this fit a goldwing 2018+ right handle bar. The other ball option what size is the screw diamater
To see if the RAM-B-309-2 base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".
The ADD-A-BALL has a 1/4"-20 x 5/8" Machine Screw
