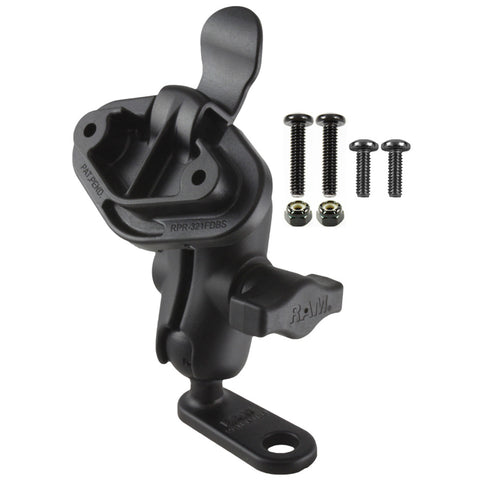

RAM® EZY-Mount™ Quick Release Adapter with 11mm Bolt Head Adapter Mount
Part #: RAM-B-252-A-326U UPC: 793442938580 Patented

Product Information
Overview	The RAM-B-252-A-326U consists of a 2.25" x 0.875" base with 11mm hole, SHORT double socket arm and EZY-Mount™ quick release adapter kit. The base is often used on motorcycles, attaching to the mirror frame, the main brand of bike is BMW. This part fits well on many handlebar pinchbolts with a washer (base is 5mm thick). The EZY-Mount™ adapter kit utilizes a quick release male to female union, these mounts are absolutely perfect for those who want the most secure, yet rapid release and portable kit possible. How does it work? Mate an EZY-Mount™ male or female component to any RAM cradle or device with the standard AMPS hole pattern. Align the two parts and snap into place. To release, push back the release tab and go. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Product Information

Overview

The RAM-B-252-A-326U consists of a 2.25" x 0.875" base with 11mm hole, SHORT double socket arm and EZY-Mount™ quick release adapter kit. The base is often used on motorcycles, attaching to the mirror frame, the main brand of bike is BMW. This part fits well on many handlebar pinchbolts with a washer (base is 5mm thick). The EZY-Mount™ adapter kit utilizes a quick release male to female union, these mounts are absolutely perfect for those who want the most secure, yet rapid release and portable kit possible. How does it work? Mate an EZY-Mount™ male or female component to any RAM cradle or device with the standard AMPS hole pattern. Align the two parts and snap into place. To release, push back the release tab and go. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Specifications
hardware included	Assembly Hardware
socket to socket length	1.75"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.42 lb

RAM® EZY-Mount™ Quick Release Adapter with 11mm Bolt Head Adapter Mount

Questions about our products? Email us for support.

Patented

RAM® EZY-Mount™ Quick Release Adapter with 11mm Bolt Head Adapter Mount

Part#: RAM-B-252-A-326U

UPC: 793442938580

B Size

Short Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$41.99
