RAM® X-Grip® with RAM® Twist-Lock™ Pivot Suction for 12"-13" Tablets
B Size
Medium Arm
$190.49
Overview

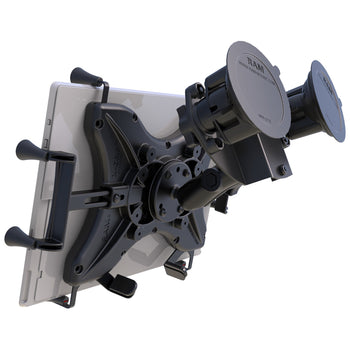

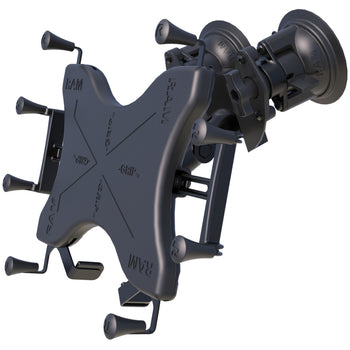

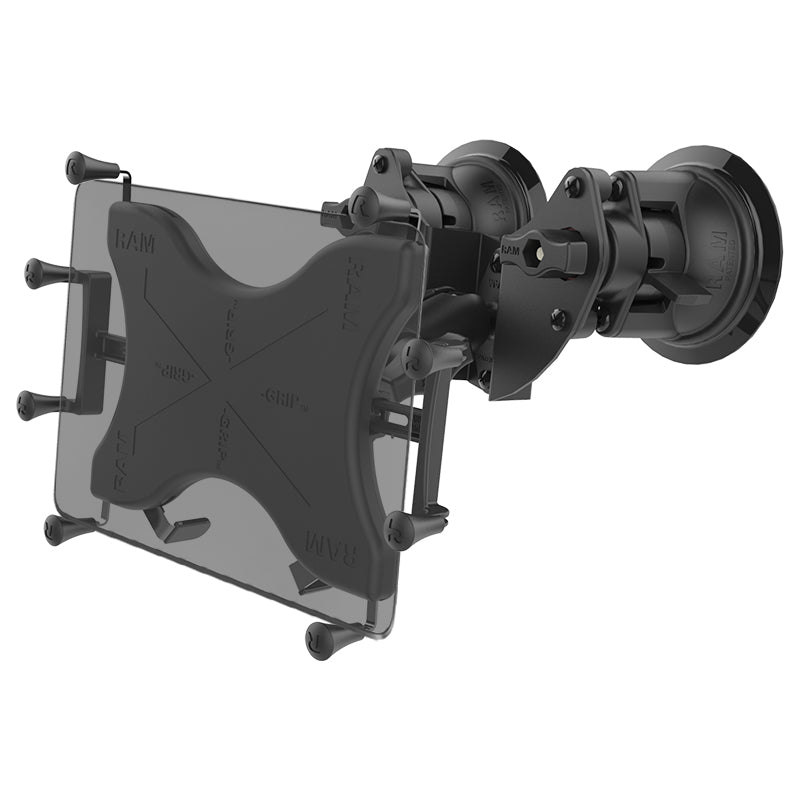

The RAM-B-189-PIV1-UN11U consists of a dual articulating 3.3" twist lock suction cup base, double socket arm, and universal X-Grip® cradle for 12" Tablets. The dual articulating suction cup base is an amazing innovation in suction cup mounting. With the ability to independently articulate each suction cup, this mounting base can be used in a variety of applications such as curved windows and surfaces. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Features

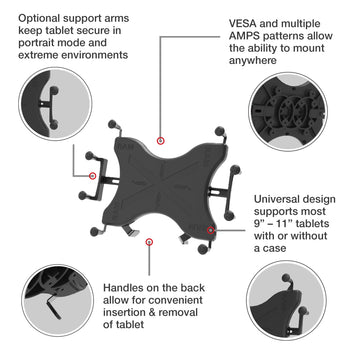

- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 12" - 13" tablets
- Includes RAM® Twist-Lock™ dual suction cup base and medium length B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty*
hardware included:
Assembly Hardware

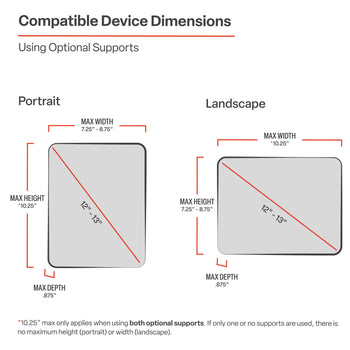

holder dimensions:

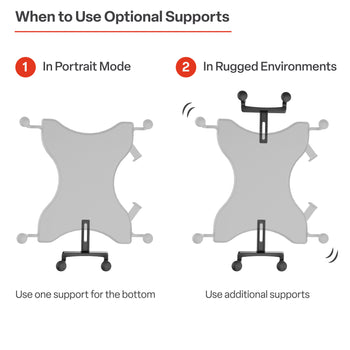

Max Height: 10.25" (using optional supports)
Width Range: 7.25" - 8.75"
Max Depth: .875"
suction size:
(2) 3.3" Diameter Bases, Total Width 7.95"
socket to socket length:
3"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Powder coated steel
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
2.48 lb
Additional Information:
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
Questions & Answers
Have a Question?
-
Will this stay mounted in a tractor and combine bouncing up and down a field?Thanks
Yes, that complete kit is suitable for rough environments like a tractor bouncing down a field. From the website: "provides durability and reliability in the most demanding environments".
-
Is this suiltable for ipad pro 12.9 2022 ?
Yes, the RAM-HOL-UN11U that's included in the RAM X-Grip with RAM Twist Lock Pivot Suction for 12" Tablets will accommodate a 5th gen iPad Pro 12.9" in a case up to 8.75" wide and .875" thick. Please note, you cannot use the optional side supports with a tablet that size but the spring loaded arms will keep your device secure and stable.
-
This part says it has a maximum height of 10.25" (using optional supports). Is it possible to use this cradle with a tablet that is taller than that?
Yes, the maximum height listed only applies if you are using the optional side support arms. If you leave at least one of those arms off of the mount it will be able to support taller tablets.
