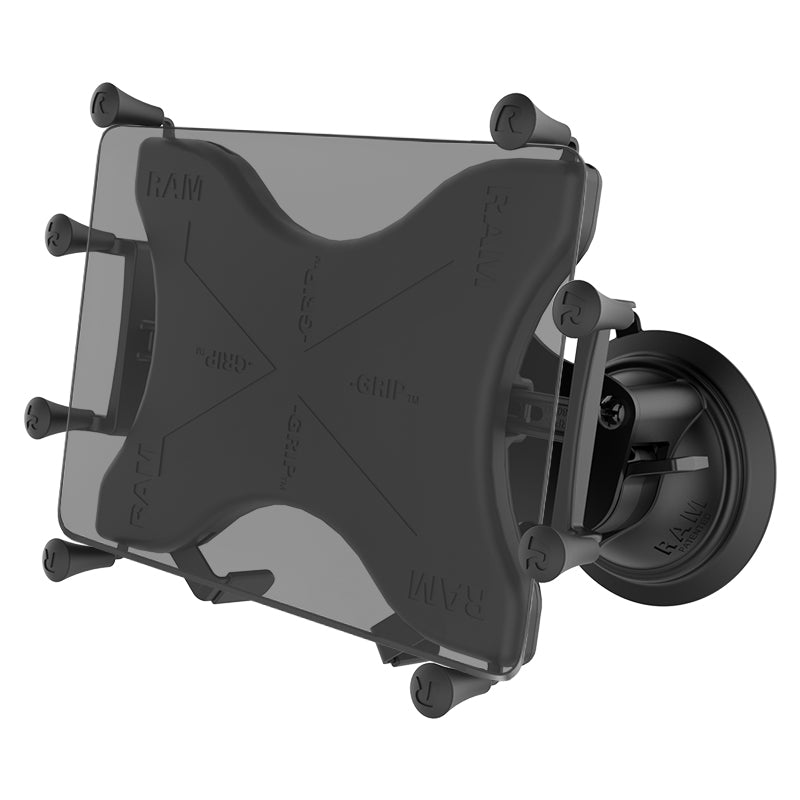

RAM® X-Grip® with Twist-Lock™ Dual Suction for 9"-11" Tablets - Short | |
---|---|
Part #:
RAM-B-189-A-UN9U
UPC:
793442013782
Patented
|
![]() |
Product Information | |
---|---|
Overview | The RAM-B-189-A-UN9U consists of a double 3.25" twist lock suction cup base, short double socket arm, round base adapter and universal X-Grip® cradle for 9"-11" tablets. The double suction cup base is designed to have an extra strong hold on glass and non-porous plastic surfaces. The X-Grip® cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size. |
Specifications | |
---|---|
hardware included | Assembly Hardware |
holder dimensions | Max Height: 10.25" (using optional supports) Width Range: 6.25" - 8.1" Max Depth: .875" |
suction size | (2) 3.3" Diameter Bases, Total Width 7.95" |
socket to socket length | 1.75" |
ball size | B Size (1") |
weight capacity | Standard Use: 2 lbs Heavy-Duty Use: 1 lb |
materials | Powder coated steel Marine-grade aluminum High strength composite |
packaging type | Poly Bag |
Weight | 2.47 lb |
Additional Information | *The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here. |






The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Amazon
Fire HD 10
Apple
iPad (1st Generation)
iPad (3rd Generation)
iPad (4th Generation)
iPad (5th Generation)
iPad (6th Generation)
iPad (7th Generation)
iPad (8th Generation)
iPad (9th Generation)
iPad (10th Generation)
iPad 2
iPad 9.7 (2017)
iPad 9.7 (2018)
iPad Air
iPad Air 2
iPad Air 3
iPad Air 4
iPad Air 5
iPad Pro 9.7 (1st Generation)
iPad Pro 10.5 (2nd Generation)
iPad Pro 11"
iPad Pro 11" (2020)
iPad Pro 11" (2021)
iPad Pro 11" (2022)
ASUS
MeMO Pad FHD 10
Transformer Pad
ZenPad 10
ZenPad 3S 10
ZenPad Z10
Dell
Venue 10 7000
Venue 11 Pro
Venue 11 Pro 7000
Nexus 10
Pixel C
HP
ElitePad 900
ElitePad 900 G1
Pro 610
Pro Slate 10.1
Huawei
MediaPad M2 10.0
MediaPad M3 Lite 10.0
MediaPad T3 10
Lenovo
Miix 3
Tab K11
Tab P12 Pro
S6000
Tab 2 A10-70
Tab 4 10
Tab 4 10 Plus
Tab A10
Tab3 10 Business
ThinkPad 10
ThinkPad Tablet 2
Yoga Book
Yoga Tab 3 10
Yoga Tab 3 Pro
Yoga Tablet 10
Yoga Tablet 10 HD+
Yoga Tablet 2 (10 inch)
LG
G Pad 10.1
G Pad II 10.1
G Pad X 10.1
G Pad X II 10.1
Microsoft
Surface 2
Surface Pro
Surface Pro 2
Surface Go
Surface Go 2
Nokia
T21
Samsung
Galaxy Book 10.6
Galaxy Tab 10.1
Galaxy Tab 2 10.1
Galaxy Tab 3 10.1
Galaxy Tab 4 10.1
Galaxy Tab A 9.7
Galaxy Tab A 10.5
Galaxy Tab A8 10.5
Galaxy Tab Active Pro
Galaxy Tab Active4 Pro
Galaxy Tab Pro 10.1
Galaxy Tab S 10.5
Galaxy Tab S2 9.7
Galaxy Tab S3 9.7
Galaxy Tab S4 10.5
Galaxy Tab S5e
Galaxy Tab S6
Galaxy Tab S7
Galaxy Tab S7 FE
Galaxy Tab S7 Plus
Galaxy Tab S8
Galaxy Tab S8 Plus
Galaxy Tab S9
Galaxy Tab S9 FE
Galaxy Tab S9 FE Plus
Galaxy Tab S9 Plus
Galaxy Tab S10 Plus
Social
Mobile Rhino T100
Sony
Vaio Tap 11
Xperia Tablet S
Xperia Tablet Z
Vankyo
MatrixPad Z4 10"
Zebra
ET50 10"
ET55 10"
Kit Components


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Amazon
Fire HD 10
Apple
iPad (1st Generation)
iPad (3rd Generation)
iPad (4th Generation)
iPad (5th Generation)
iPad (6th Generation)
iPad (7th Generation)
iPad (8th Generation)
iPad (9th Generation)
iPad (10th Generation)
iPad 2
iPad 9.7 (2017)
iPad 9.7 (2018)
iPad Air
iPad Air 2
iPad Air 3
iPad Air 4
iPad Air 5
iPad Pro 9.7 (1st Generation)
iPad Pro 10.5 (2nd Generation)
iPad Pro 11"
iPad Pro 11" (2020)
iPad Pro 11" (2021)
iPad Pro 11" (2022)
ASUS
MeMO Pad FHD 10
Transformer Pad
ZenPad 10
ZenPad 3S 10
ZenPad Z10
Dell
Venue 10 7000
Venue 11 Pro
Venue 11 Pro 7000
Nexus 10
Pixel C
HP
ElitePad 900
ElitePad 900 G1
Pro 610
Pro Slate 10.1
Huawei
MediaPad M2 10.0
MediaPad M3 Lite 10.0
MediaPad T3 10
Lenovo
Miix 3
Tab K11
Tab P12 Pro
S6000
Tab 2 A10-70
Tab 4 10
Tab 4 10 Plus
Tab A10
Tab3 10 Business
ThinkPad 10
ThinkPad Tablet 2
Yoga Book
Yoga Tab 3 10
Yoga Tab 3 Pro
Yoga Tablet 10
Yoga Tablet 10 HD+
Yoga Tablet 2 (10 inch)
LG
G Pad 10.1
G Pad II 10.1
G Pad X 10.1
G Pad X II 10.1
Microsoft
Surface 2
Surface Pro
Surface Pro 2
Surface Go
Surface Go 2
Nokia
T21
Samsung
Galaxy Book 10.6
Galaxy Tab 10.1
Galaxy Tab 2 10.1
Galaxy Tab 3 10.1
Galaxy Tab 4 10.1
Galaxy Tab A 9.7
Galaxy Tab A 10.5
Galaxy Tab A8 10.5
Galaxy Tab Active Pro
Galaxy Tab Active4 Pro
Galaxy Tab Pro 10.1
Galaxy Tab S 10.5
Galaxy Tab S2 9.7
Galaxy Tab S3 9.7
Galaxy Tab S4 10.5
Galaxy Tab S5e
Galaxy Tab S6
Galaxy Tab S7
Galaxy Tab S7 FE
Galaxy Tab S7 Plus
Galaxy Tab S8
Galaxy Tab S8 Plus
Galaxy Tab S9
Galaxy Tab S9 FE
Galaxy Tab S9 FE Plus
Galaxy Tab S9 Plus
Galaxy Tab S10 Plus
Social
Mobile Rhino T100
Sony
Vaio Tap 11
Xperia Tablet S
Xperia Tablet Z
Vankyo
MatrixPad Z4 10"
Zebra
ET50 10"
ET55 10"
Kit Components

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-B-189-A-UN9U!
We'll email you once the item is available.
Overview
The RAM-B-189-A-UN9U consists of a double 3.25" twist lock suction cup base, short double socket arm, round base adapter and universal X-Grip® cradle for 9"-11" tablets. The double suction cup base is designed to have an extra strong hold on glass and non-porous plastic surfaces. The X-Grip® cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
hardware included:
Assembly Hardware
holder dimensions:
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
suction size:
(2) 3.3" Diameter Bases, Total Width 7.95"
socket to socket length:
1.75"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Powder coated steel
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
2.47 lb
Additional Information:
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
