RAM® Double Ball Mount with 11mm Bolt Head Adapter
Part #: RAM-B-179U UPC: 793442921841

Product Information

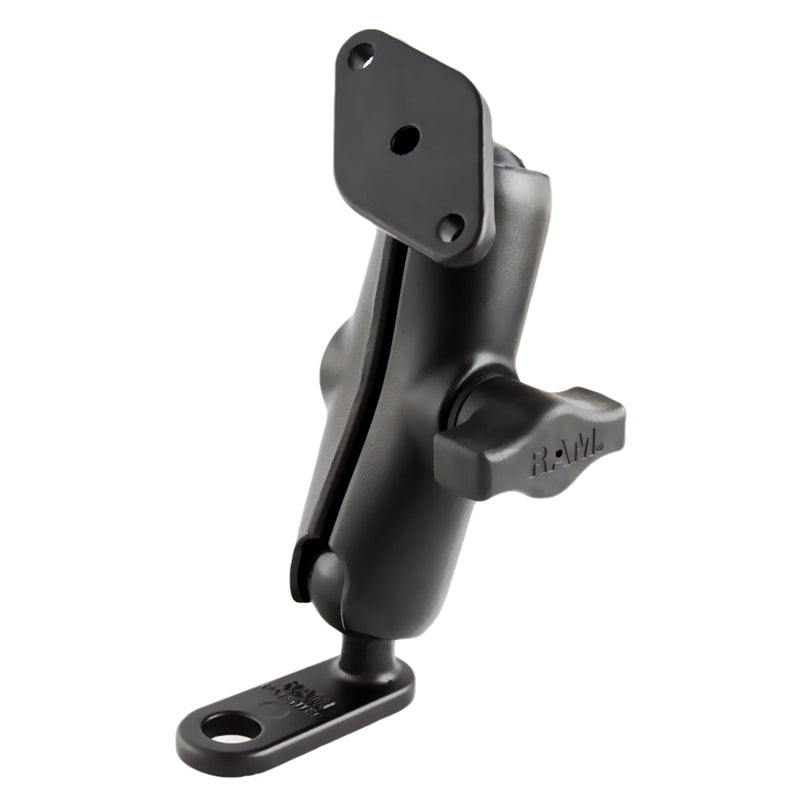

Overview	The RAM-B-179U consists of a 1" diameter ball base, connected to a 2.25" x 0.875" base with 11mm hole, double socket arm and diamond base adapter. This mount is often used on motorcycles, attaching to the mirror frame, most commonly found on BMW motorcycles. as well as many handlebar pinchbolts with a washer (base is 5mm thick). The 2.43" x 1.31" diamond base contains two holes 1.912" from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Product Information

Overview

The RAM-B-179U consists of a 1" diameter ball base, connected to a 2.25" x 0.875" base with 11mm hole, double socket arm and diamond base adapter. This mount is often used on motorcycles, attaching to the mirror frame, most commonly found on BMW motorcycles. as well as many handlebar pinchbolts with a washer (base is 5mm thick). The 2.43" x 1.31" diamond base contains two holes 1.912" from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Specifications
socket to socket length	3"
hole pattern	2-Hole AMPS: 1.912"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.45 lb

RAM® Double Ball Mount with 11mm Bolt Head Adapter

Questions about our products? Email us for support.

RAM® Double Ball Mount with 11mm Bolt Head Adapter

Part#: RAM-B-179U

UPC: 793442921841

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
