RAM® X-Grip® Mount with Glare Shield Clamp Base for 9"-10" Tablets
Part#:RAM-B-177-UN9U UPC:793442940774 Patented

Overview

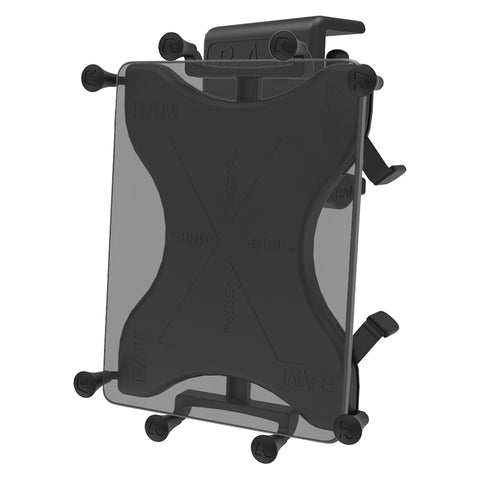

The RAM-B-177-UN9U consists of a glare shield clamp base, double socket arm, round base adapter and universal X-Grip® III cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The X-Grip® III clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® III clamping cradle expands and contracts for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip® III.

hardware included

Assembly Hardware
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad

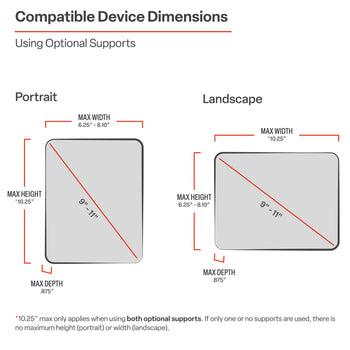

holder dimensions

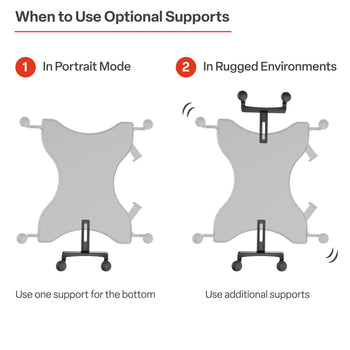

Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"

clamp range

.625" max

socket to socket length

1.75"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

1.75 lb
