Patented

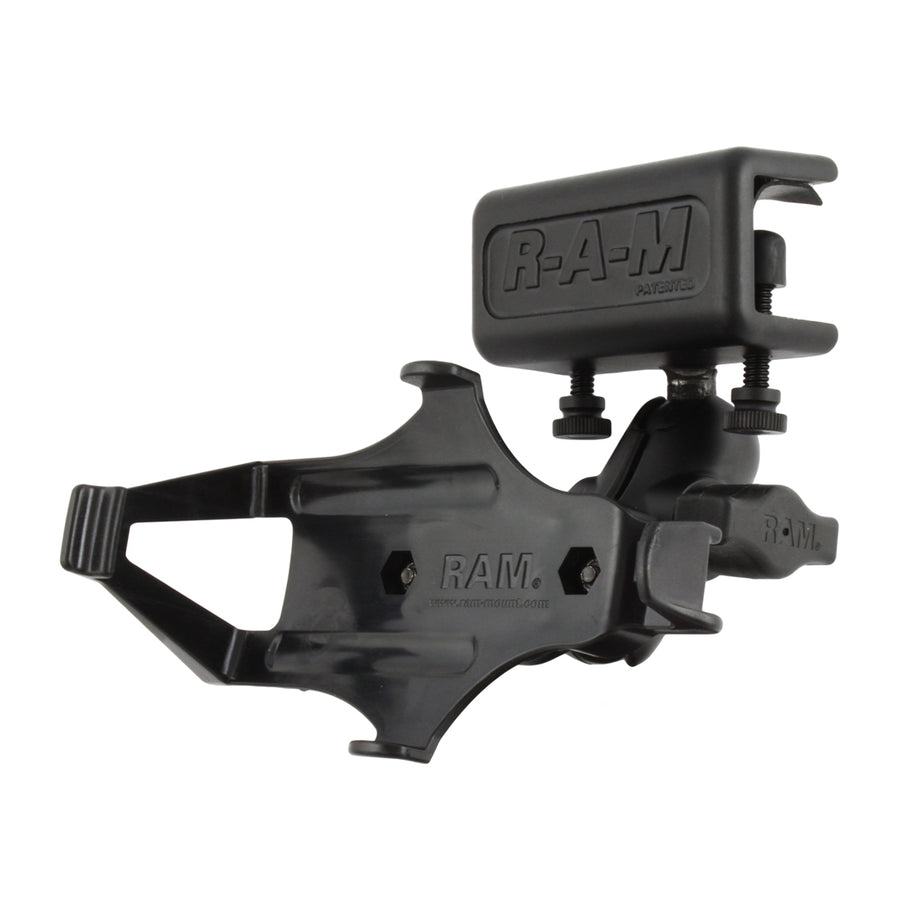

RAM® Glare Shield Clamp Mount for Garmin GPSMAP 176, 296, 496 + More
Part#: RAM-B-177-GA7U
UPC: 793442907050
Ball Icon B Size
Arm Icon Short Arm
$64.49

Overview

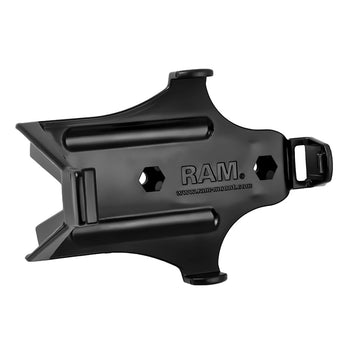

The RAM-B-177-GA7U consists of a glare shield clamp base, double socket arm and cradle for the Garmin GPSMAP. Simply locate the clamp on any clamping surface up to 5/8" thick and gently snug the nylon thumb screws. The double ball & socket system will provide perfect viewing angles to get the most from your Garmin GPSMAP. The RAM glare shield clamp with double ball & socket system is far and away the most discrete and clean way to mount most any compact electronic device to the glare shield of your aircraft.

hardware included:

Assembly Hardware
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad

clamp range:

.625" max

socket to socket length:

1.75"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

0.7 lb
