RAM® EZ-Roll'r™ for iPad mini Gen 1-3 with Glare Shield Clamp Base
Part #: RAM-B-177-AP14U UPC: 793442941085 Patented & Pats. Pend.

Product Information

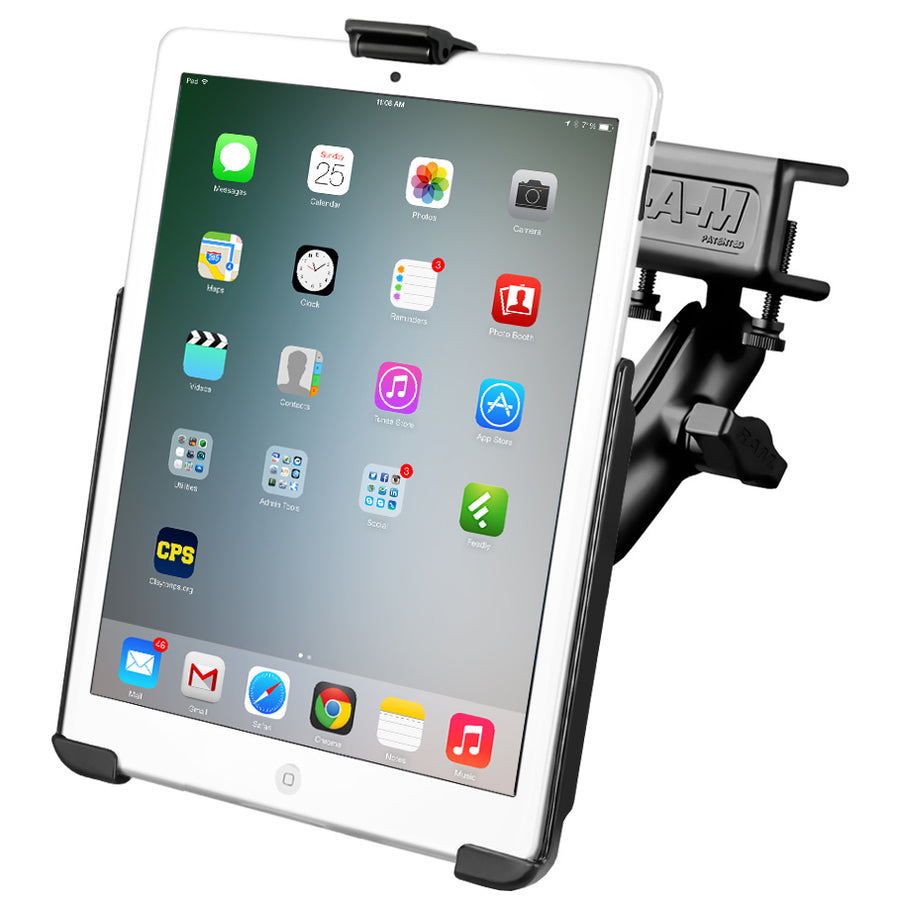

Overview	The RAM-B-177-AP14U consists of a glare shield clamp base, double socket arm, round base adapter and EZ-Roll’r™ model specific cradle for the Apple iPad mini. Simply locate the clamp on any clamping surface up to 5/8" thick and gently snug the nylon thumb screws. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The patent pending roller design allows for smooth placement and removal of the iPad, while keeping it secure while on the go.

Product Information

Overview

The RAM-B-177-AP14U consists of a glare shield clamp base, double socket arm, round base adapter and EZ-Roll’r™ model specific cradle for the Apple iPad mini. Simply locate the clamp on any clamping surface up to 5/8" thick and gently snug the nylon thumb screws. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The patent pending roller design allows for smooth placement and removal of the iPad, while keeping it secure while on the go.

Specifications
hardware included	Assembly Hardware (2) 1/4"-20 x 1.25" Composite Thumb Screws (2) Rubber Caps (1) 1.93" x 3.06" Rubber Adhesive Pad
clamp range	.625" max
socket to socket length	1.75"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.9 lb

RAM® EZ-Roll'r™ for iPad mini Gen 1-3 with Glare Shield Clamp Base

Questions about our products? Email us for support.

Patented & Pats. Pend.

RAM® EZ-Roll'r™ for iPad mini Gen 1-3 with Glare Shield Clamp Base

Part#: RAM-B-177-AP14U

UPC: 793442941085

B Size

Short Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
