Overview

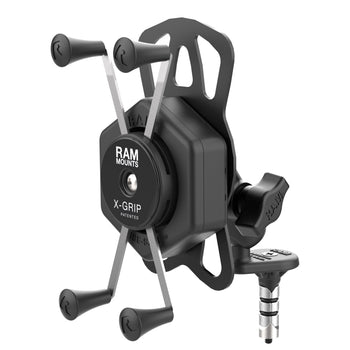

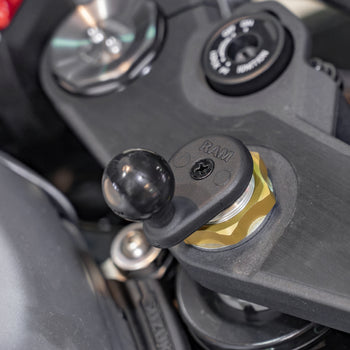

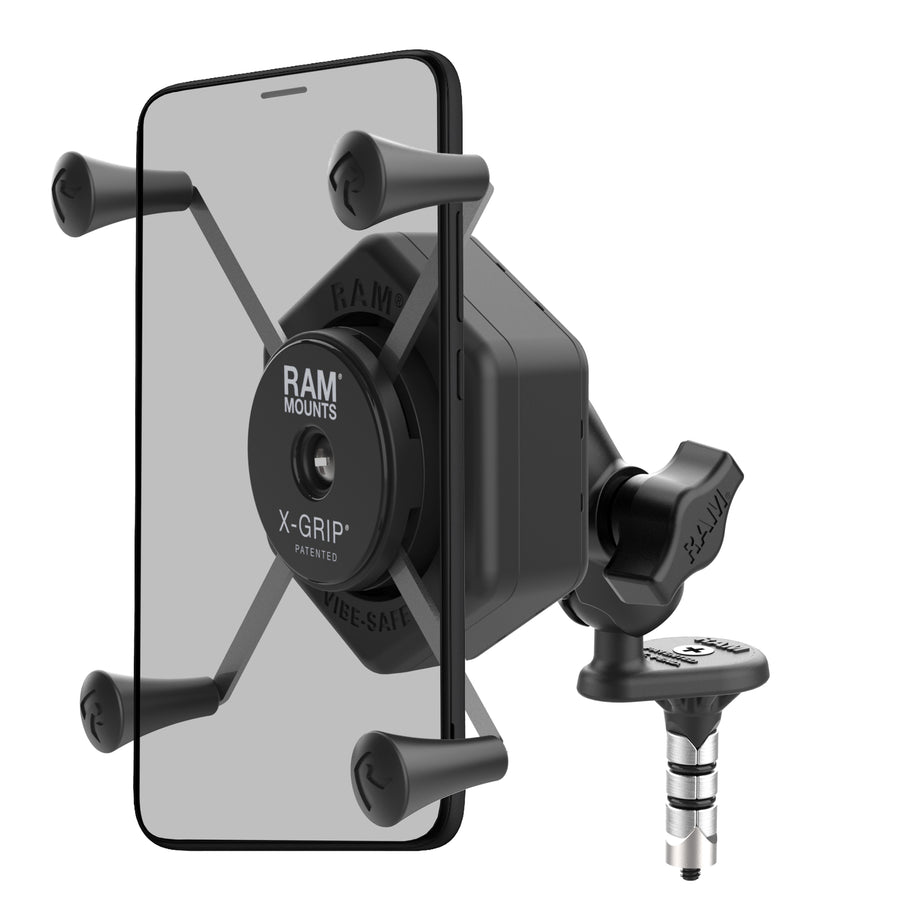

The RAM® X-Grip® Large Phone Mount with Vibe-Safe™ & Fork Stem Base - Short (RAM-B-176-A-UN10-462) is a combination of the RAM® X-Grip® Phone Mount with Motorcycle Fork Stem Wedge Base and the RAM® Vibe-Safe™—our vibration damping accessory is designed to protect electronic devices from a wide range of vibration frequencies. The included fork stem wedge base is a low-profile mounting base designed to attach directly to the cylindrical bore wall of motorcycle fork stems that measure 12mm to 18.75mm in diameter, keeping your device front and center. This product comes pre-assembled with the device tether that is recommended for outdoor applications. This product comes with one (1) short B-size arm and one (1) RAM® Motorcycle Fork Stem Wedge Ball Base - 12-18.75mm, and an optional device tether that is recommended for open cockpits and outdoor applications. The holder is compatible with handheld devices that will fit the dimensions listed below; it is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Features
- RAM® Vibe-Safe™ dampens a wide range of vibration frequencies
- Designed to fit into the cylindrical bore wall of fork stems 12-18mm
- Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
- Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone
- Backed by a lifetime warranty

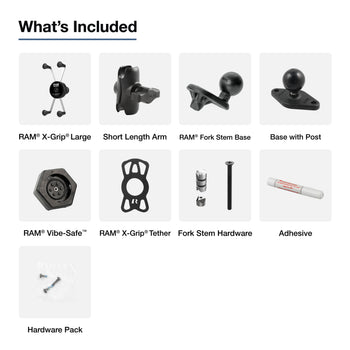

hardware included:
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) Small Wedge Assembly
(1) #10-24 x 2" Screw
(1) #10-24 Wedge Nut
holder dimensions:
Width Range: 1.75" - 4.5"
Depth Range: .875" max
wedge dimensions:
12-18mm
socket to socket length:
1.75"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
Stainless steel
packaging type:
Poly Bag
Weight:
0.92 lb
