Overview

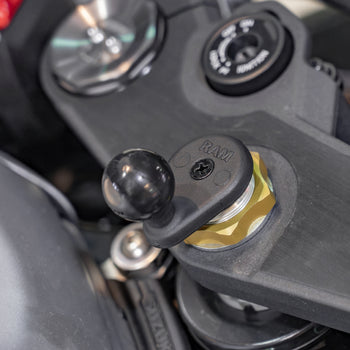

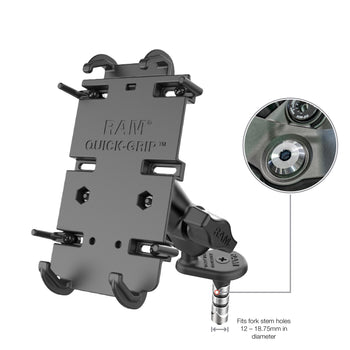

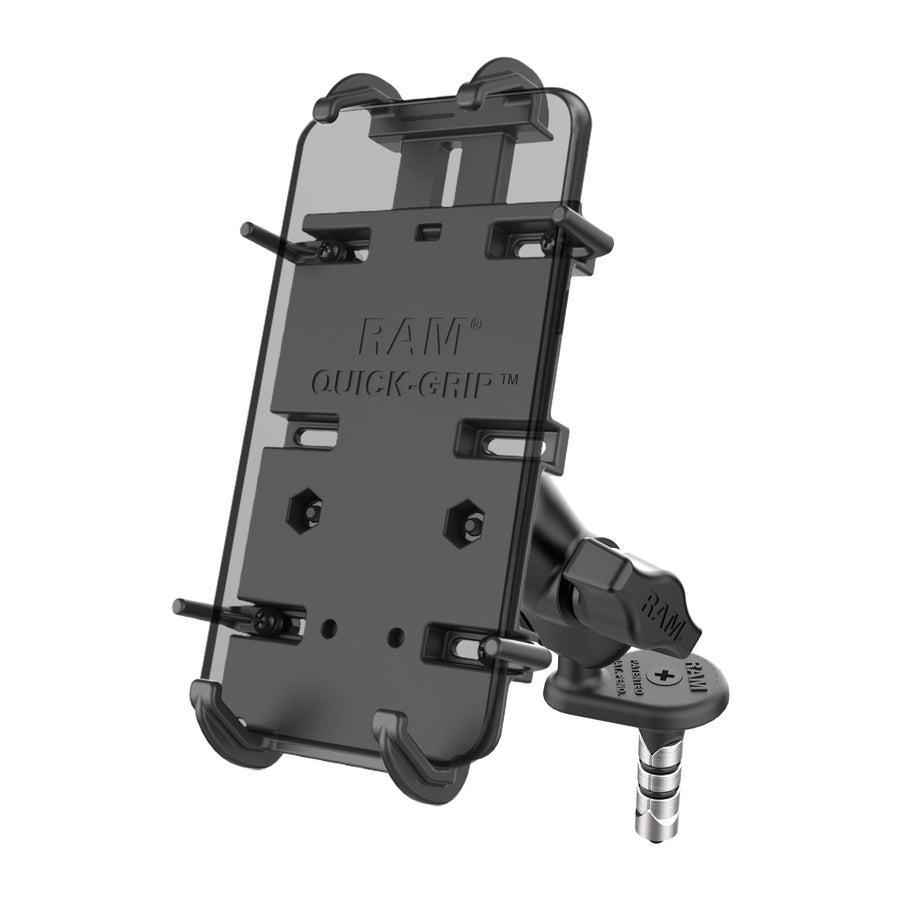

The RAM® Quick-Grip™ XL Phone Holder with Fork Stem Wedge Base - Short (RAM-B-176W1-A-PD4U) is a combination of the RAM® Quick-Grip™ XL Phone Holder with Motorcycle Fork Stem Wedge Base. The included fork stem wedge base is a low-profile mounting base designed to attach directly to the cylindrical bore wall of motorcycle fork stems that measure 12mm to 18.75mm in diameter, keeping your device front and center. This product comes with one (1) short B-size arm and one (1) RAM® Motorcycle Fork Stem Wedge Ball Base - 12-18.75mm, and an optional device tether that is recommended for open cockpits and outdoor applications. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.
Features
- Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices; easily insert and remove your phone with one hand
- Designed to fit into the cylindrical bore wall of fork stems 12-18mm
- Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

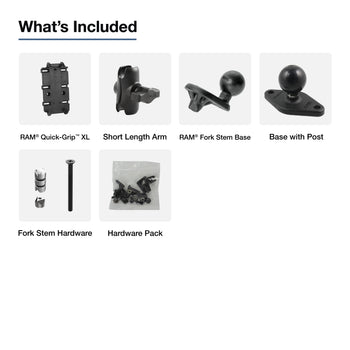

hardware included:
Assembly Hardware
(1) Small Wedge Assembly
(1) #10-24 x 2" Screw
(1) #10-24 Wedge Nut
holder dimensions:
Height Range: 5.75" - 7.25"
Width Range: 2.625" - 3.625"
Max Depth: .72"
wedge dimensions:
12-18mm
socket to socket length:
1.75"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
0.84 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
